IMBA-Q670 ATX Motherboard
Page 46

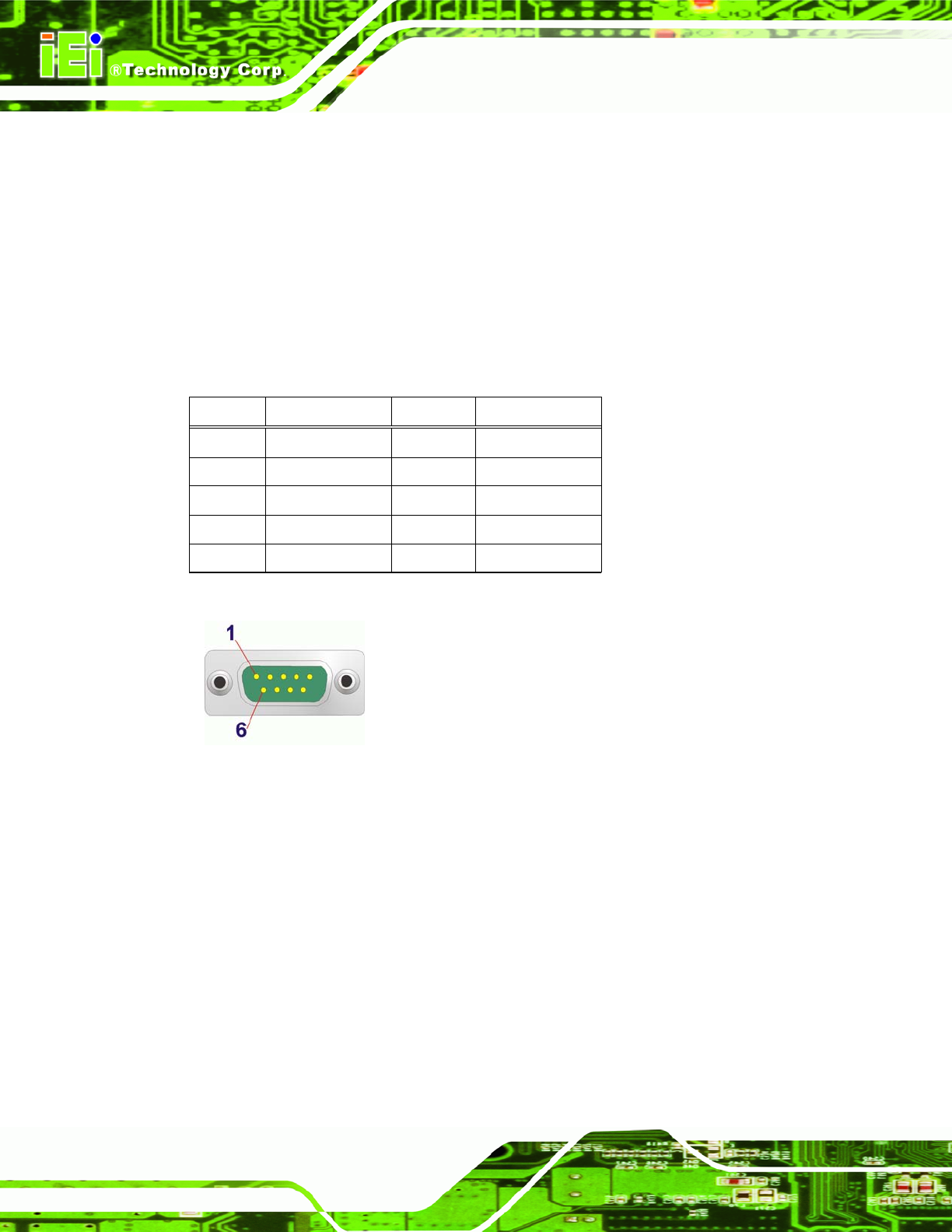

3.3.5 Serial Port Connectors (COM6)
CN Label: COM6
CN Type:
DB-9 connector
CN Location:
See Figure 3-27
CN Pinouts:
See Table 3-28 and Figure 3-30
The serial port connects to a RS-232 serial communications device.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NDCD 6 NDSR
2 NRXD 7 NRTS
3 NTXD 8 NCTS
4 NDTR 9 NRI
5 GND
Table 3-28: Serial Port Connector Pinouts
Figure 3-30: Serial Port Connector Pinouts
3.3.6 VGA and DVI Connector
CN Label: VIDEO1
CN Type:
15-pin Female, 24-pin header
CN Location:
See Figure 3-27
CN Pinouts:
See Table 3-29 and Table 3-30
The VGA connector connects to a monitor that accepts a standard VGA input.
