IOWA-LX-600 Half-size CPU Card
Page 108
B.1.1 System Requirement

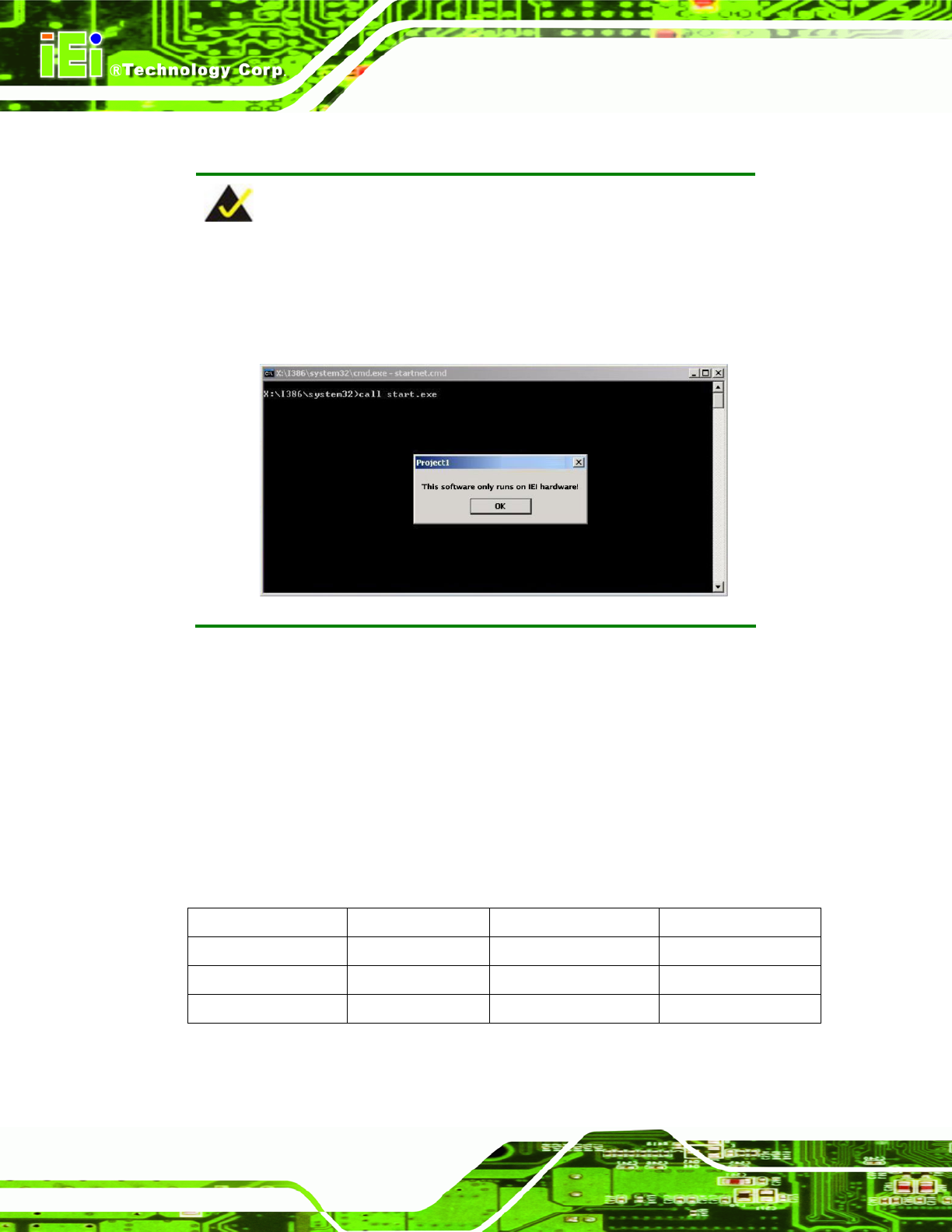

NOTE:
The recovery CD can only be used with IEI products. The software will
fail to run and a warning message will appear when used on non-IEI
hardware.
To create the system backup, the main storage device must be split into two partitions
(three partitions for Linux). The first partition will be for the operating system, while the
second partition will be invisible to the operating system and contain the backup made by
the one key recovery software.
The partition created for recovery images must be big enough to contain both the factory
default image and the user backu p image. The size m ust be calcula ted before cre ating the
partitions. Please take the following table as a reference when calculating the size of the
partition.
OS OS Image after Ghost
Compression Ratio
Windows® 7 7 GB 5 GB 70%
Windows® XPE 776 MB 560 MB 70%
Windows® CE 6.0 36 MB 28 MB 77%
