IOWA-LX-600 Half-size CPU Card
Page 28

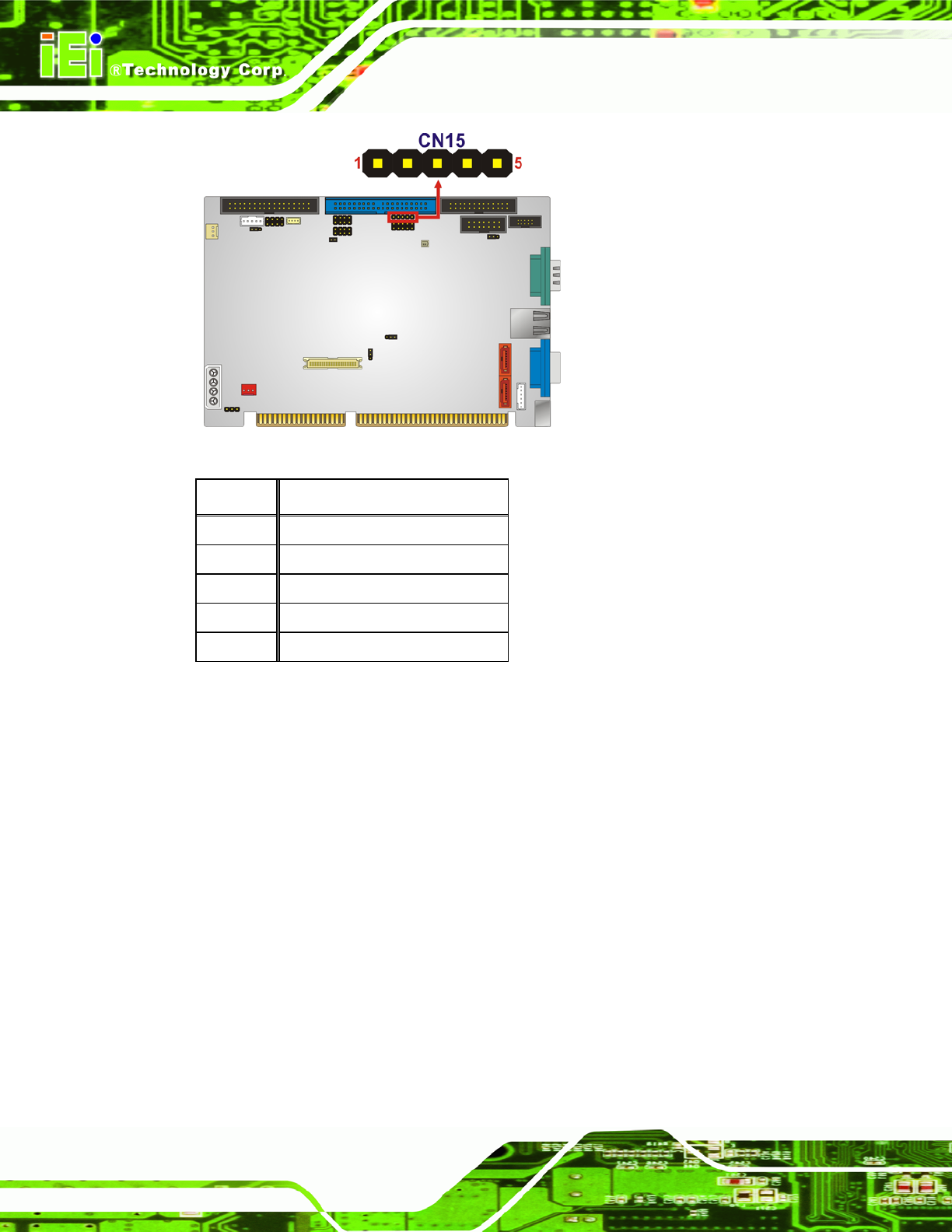

Figure 3-12: Infrared Connector Pinout Locations
PIN DESCRIPTION
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 3-13: Infrared Con nector Pinouts
3.2.12 Keyboard/Mouse Connector
CN Label:
CN25
CN Type:
6-pin wafer (1x6)
CN Location:
See
6Figure 3-13
CN Pinouts:
See
6Table 3-14
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse fun ctionality to the system.
