IOWA-LX-600 Half-size CPU Card
Page 29

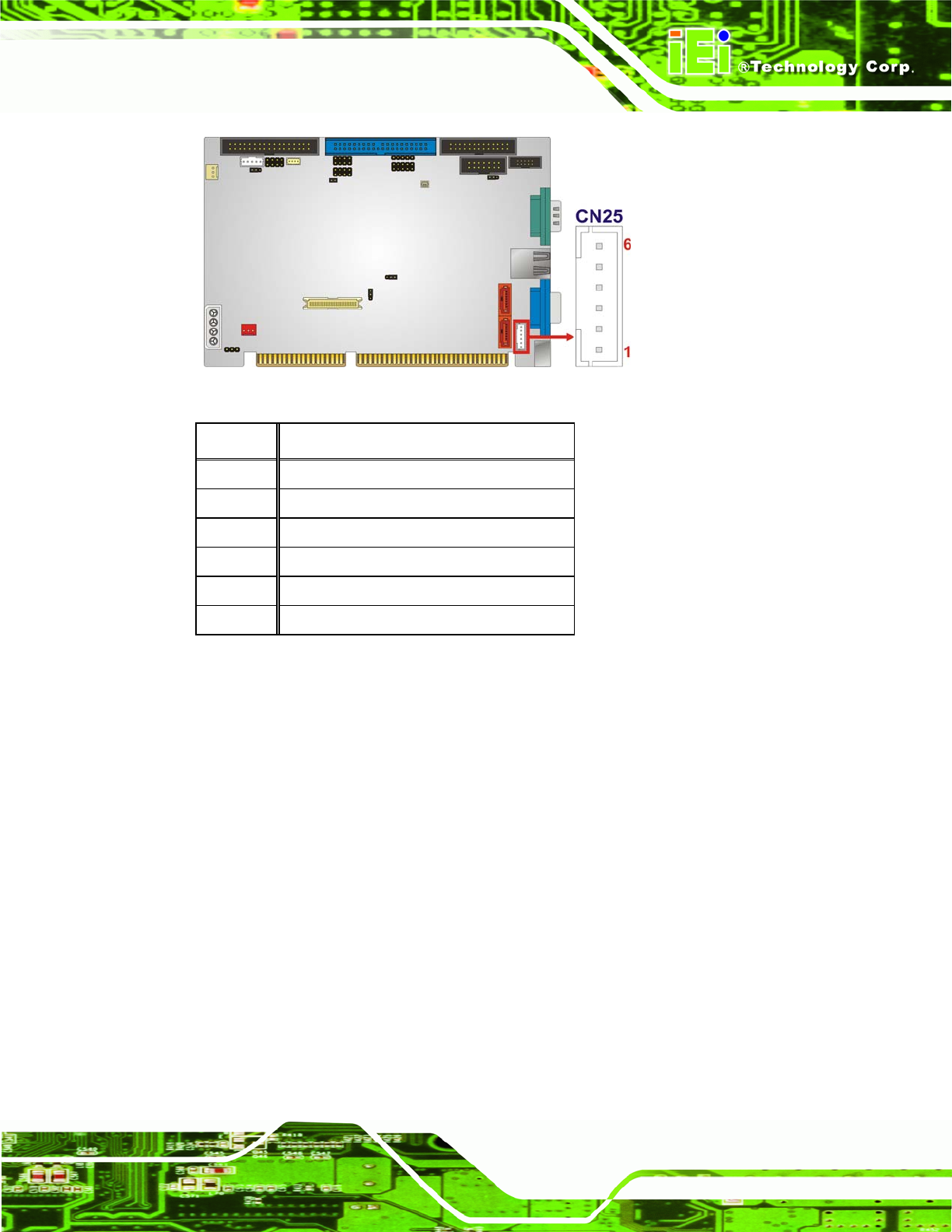

Figure 3-13: Keyboard/Mouse Connector Lo cation
PIN DESCRIPTION
1 +5V
2 Mouse Data
3 Mouse Clock
4 Keyboard Data
5 Keyboard Clock
6 Ground
Table 3-14: Keyboard/Mouse Connector Pinouts
3.2.13 Parallel Port Connector
CN Label:
CN17
CN Type:
26-pin box header
CN Location:
See
6Figure 3-14
CN Pinouts:
See
6Table 3-15
The 26-pin parallel port connector connects to a parallel port connector interface or some
other parallel port device such as a printer.
