IOWA-LX-600 Half-size CPU Card
Page 30

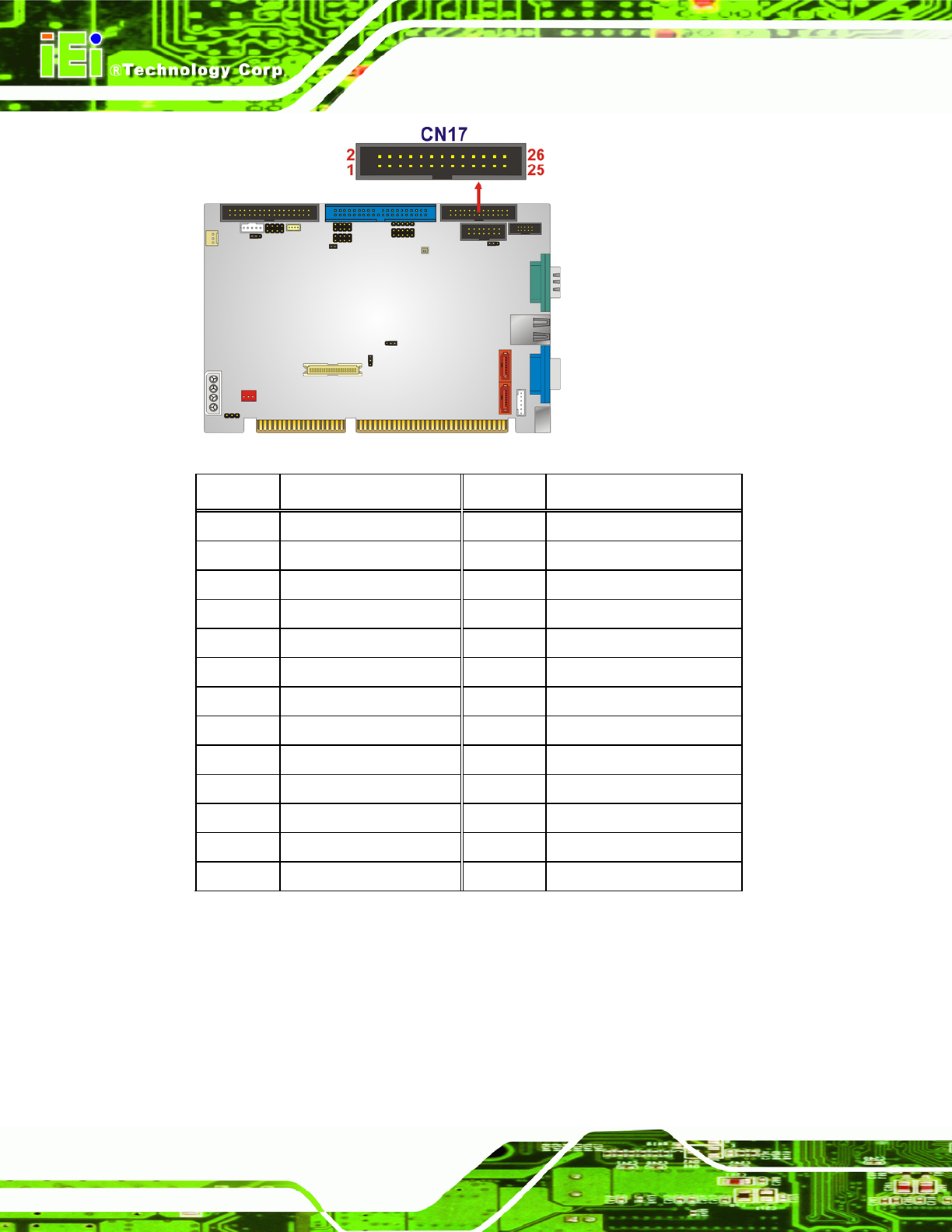

Figure 3-14: Parallel Port Connector Location
PIN DESCRIPTION PIN DESCRIPTION
1 STROBE# 2 AUTO FORM FEED #
3 DATA 0 4 ERROR#
5 DATA 1 6 INITIALIZE
7 DATA 2 8 PRINTER SELECT LN#
9 DATA 3 10 GROUND
11 DATA 4 12 GROUND
13 DATA 5 14 GROUND
15 DATA 6 16 GROUND
17 DATA 7 18 GROUND
19 ACKNOWLEDGE 20 GROUND
21 BUSY 22 GROUND
23 PAPER EMPTY 24 GROUND
25 PRINTER SELECT 26 N/C
Table 3-15: Parallel Port Connector Pinouts
3.2.14 Power Connector
CN Label:
CN2
CN Type:
4-pin power connector (1x4)
