NANO-LX EPIC SBC
Step 3: Connect Power Cable to Power Supply. Connect one of the 4-pin (1x4) Molex
type power cable connectors to an AT power supply. See
Figure 5-7. Step 0:

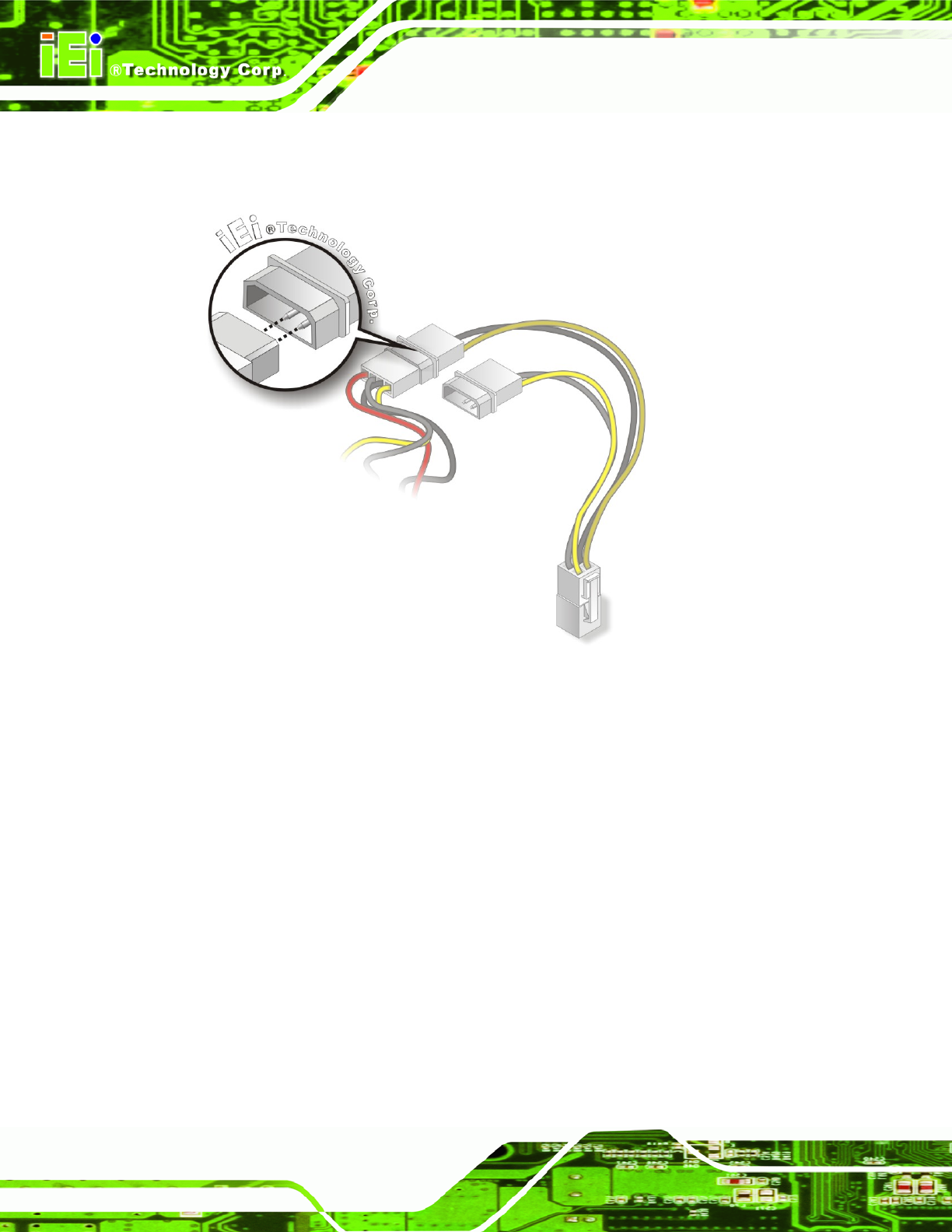

Figure 5-7: Connect Power Cable to Power Supply
5.8.4 Parallel Port Cable
The optional parallel port (LPT) cable respectively connects the onboard LPT 26-pin box
header to an external LPT device (like a printer). The cable comprises a 26-pin female
header, to be connected to the onboard LPT box-header, on one side and on the other
side a standard external LPT connector. To connect the LPT cable, please follow the
steps below.
Step 1: Locate the connector. The LPT connector location is shown in Chapter 4.
Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the PCIE-9452 LPT box-header connector. See
Figure 5-8.
Step 3: Insert the cable connectors. Once the cable connector is properly aligned with
Page 104
