5.8.5 Single RS-232 Cable
The single RS-232 cable consists of one serial port connectors attached to a serial
communications cable that is then attached to a D-sub 9 male connector. To install the
single RS-232 cable, please follow the steps below.
Step 1: Locate the connector. The location of the RS-232 connector is shown in
Chapter 3.
Step 2: Insert the cable connector. Insert the connector into the serial port box header.
See
Figure 5-10. A key on the front of the cable connectors ensures the
connector can only be installed in one direction.

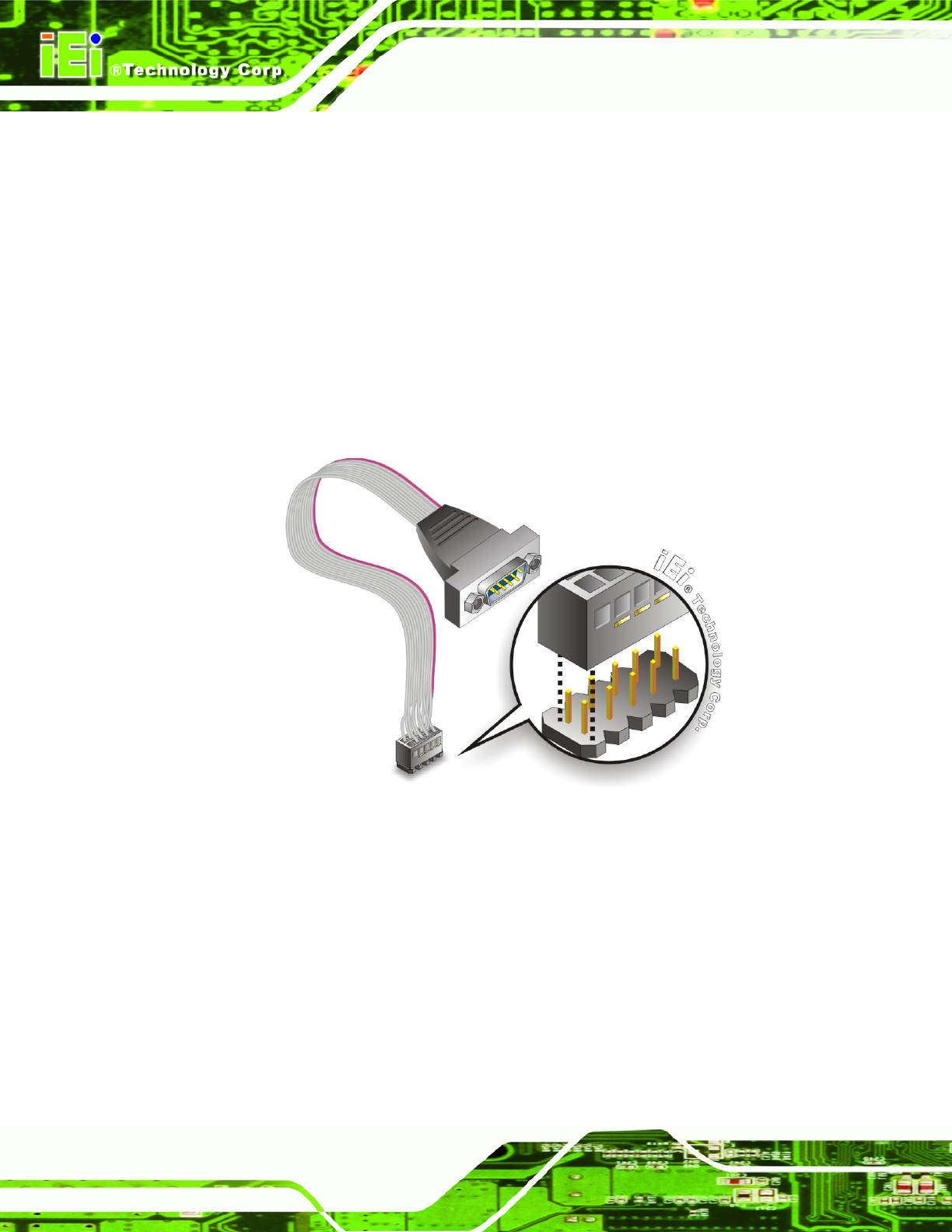

Figure 5-10: Single RS-232 Cable Installation
5.8.6 SATA Drive Connection
The NANO-LX is shipped with two SATA drive cables and one SATA drive power cable.
To connect the SATA drives to the connectors, please follow the steps below.
Step 3: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 4: Insert the cable connector. Press the clip on the connector at the end of the
