NANO-LX EPIC SBC
5.9.1 LAN Connection (Single Connector)
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 4.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the NANO-LX. See
Figure 5-13.

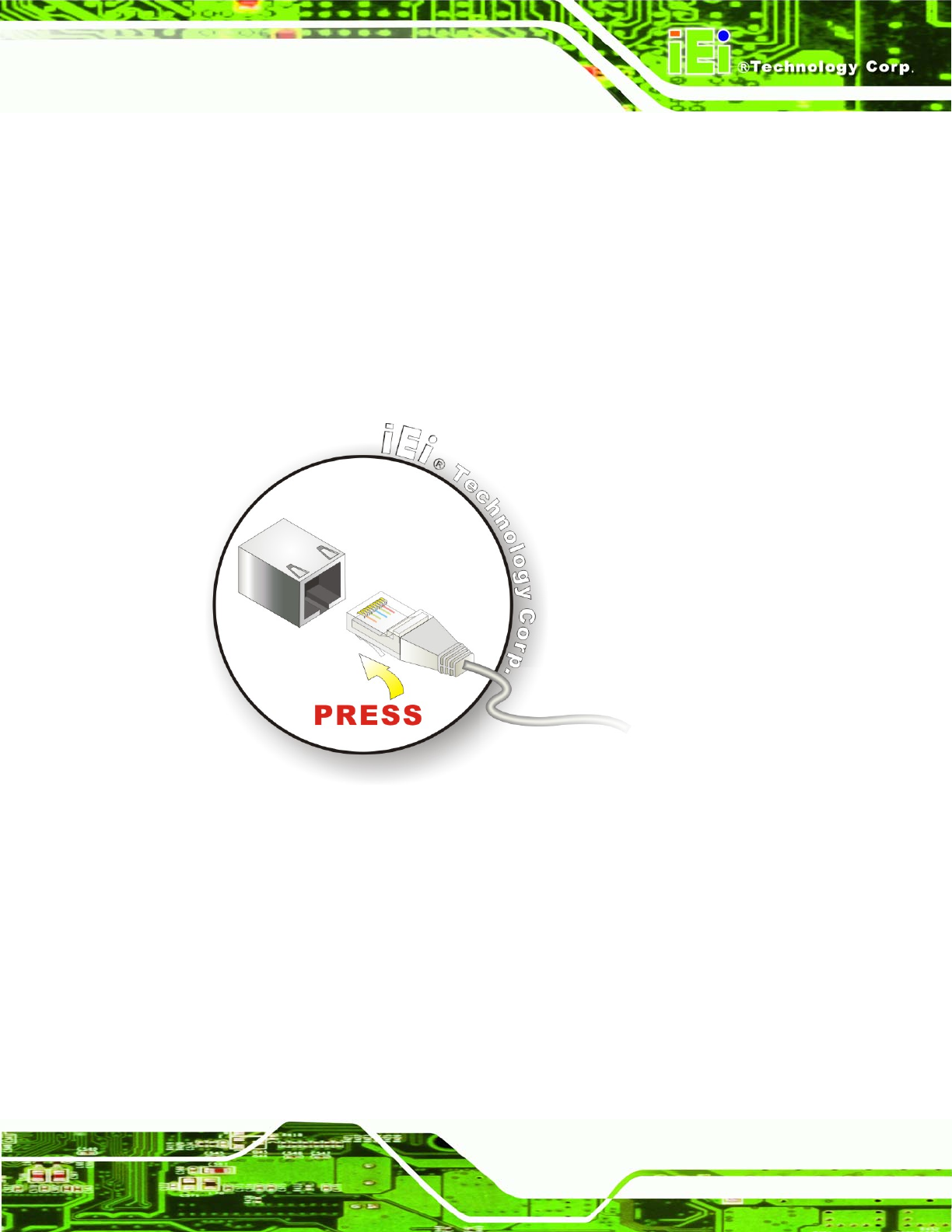

Figure 5-13: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
5.9.2 PS/2 Keyboard/Mouse Connection
The NANO-LX has a single PS/2 connector on the external peripheral interface panel. The
PS/2 connector is connected to a keyboard/mouse through the keyboard/mouse Y cable.
To connect a keyboard/mouse to the NANO-LX, please follow the instructions below.
Step 1: Locate the PS/2 connector. The location of the PS/2 connector is shown in
Page 109
