NANO-LX EPIC SBC
Chapter 3.
Step 2: Align the PS/2 connector. Align the PS/2 connector on the keyboard/mouse Y
cable with the PS/2 connector on the external peripheral interface.
Step 3: Insert the PS/2 connector. Once the connector is properly aligned, insert the
PS/2 connector from the keyboard/mouse Y cable into the PS/2 connector on
the NANO-LX. See
Figure 5-14.
Step 4: Connect the keyboard and mouse. A keyboard and mouse can each be
connected to one of the PS/2 connectors. The keyboard PS/2 connector and
mouse PS/2 connector are both marked. Please make sure the keyboard and
mouse are connected to the correct PS/2 connector.Step 0:

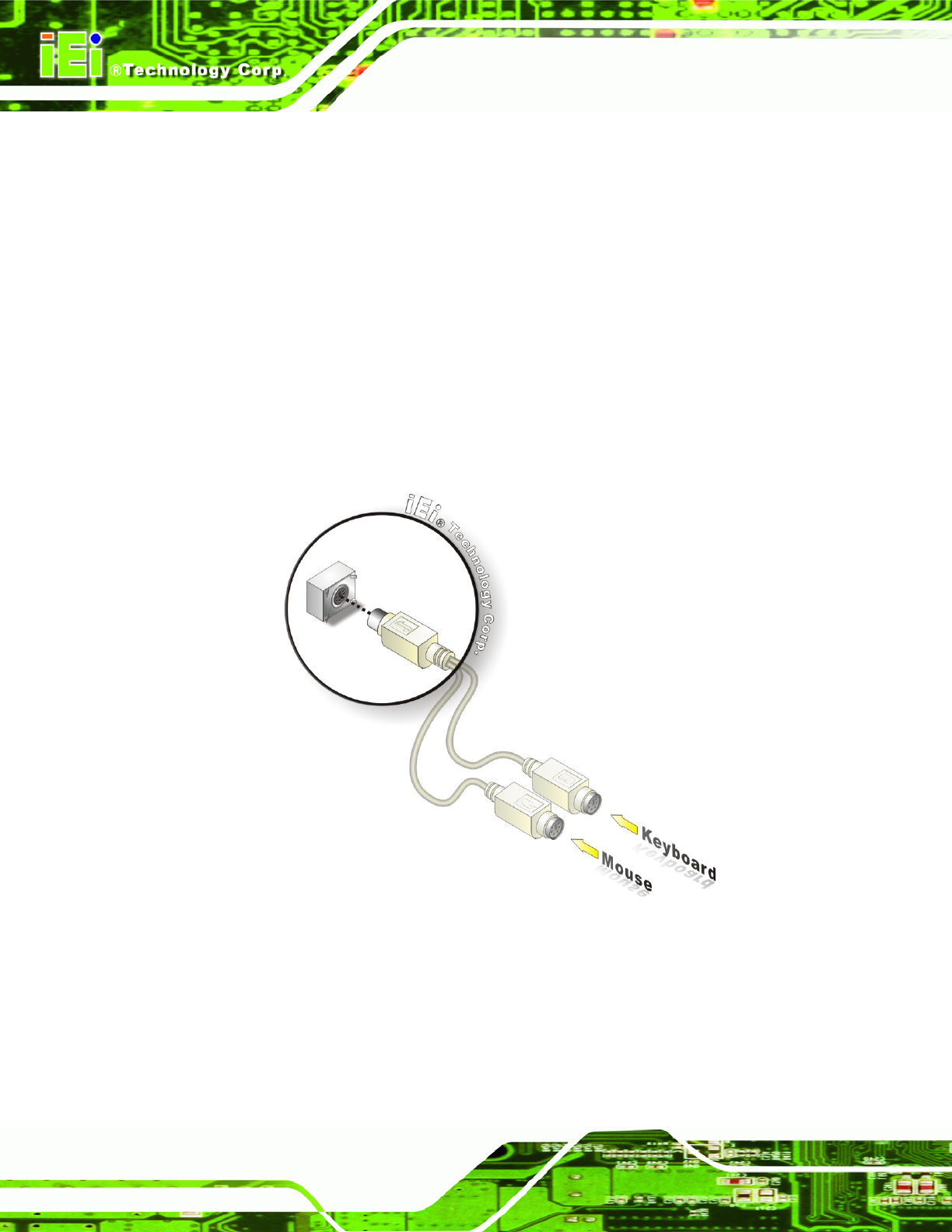

Figure 5-14: PS/2 Connector
5.9.3 Serial Device Connection
The NANO-LX has a single female DB-9 connector on the external peripheral interface
panel for a serial device. Follow the steps below to connect a serial device to the
NANO-LX.
