NANO-LX EPIC SBC
6.2 Standard CMOS Features
Use the Standard CMOS Features BIOS menu (BIOS Menu 2) to set basic BIOS
configuration options.

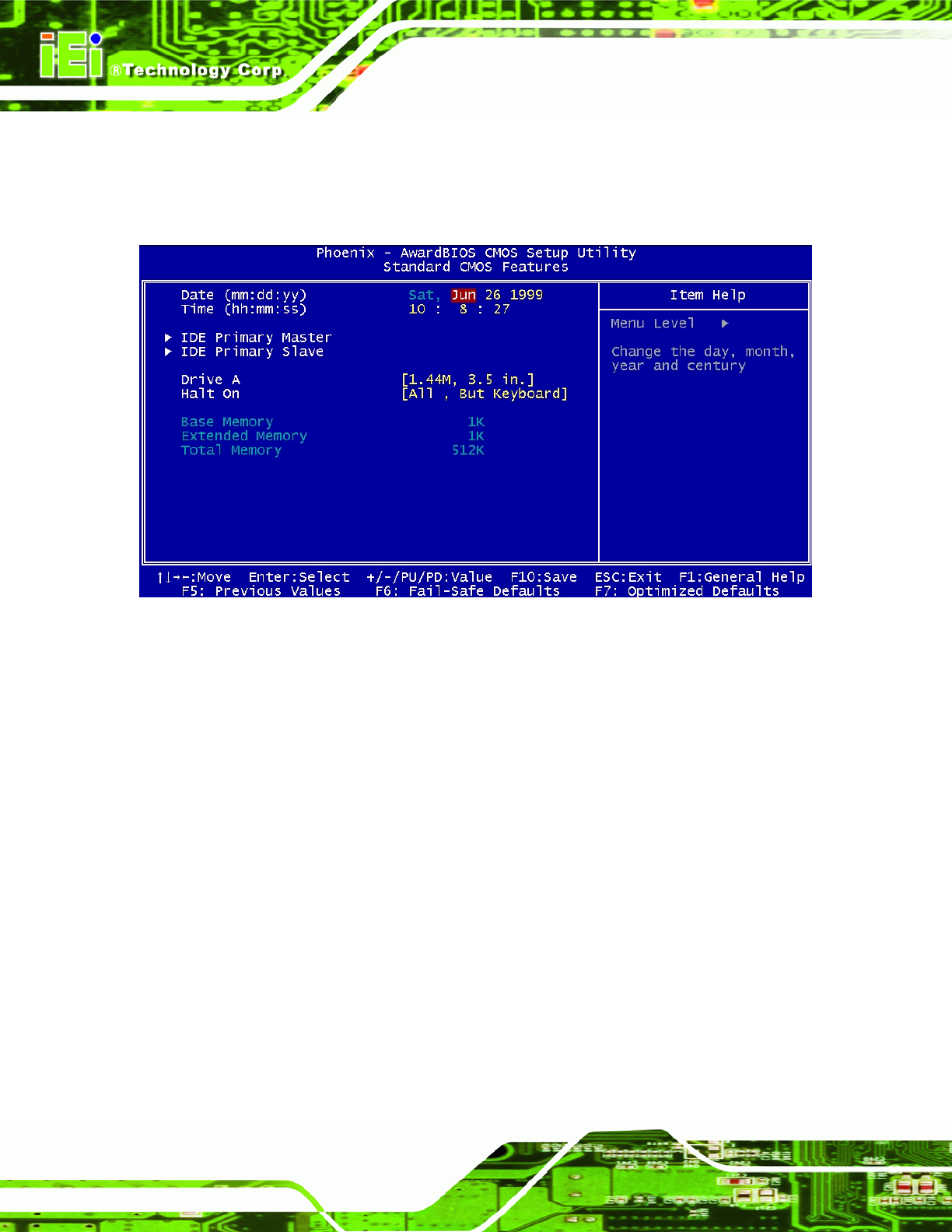

BIOS Menu 2: Standard CMOS Features
Date [Day mm:dd:yyyy]
The Date option sets the system date.
Time [hh/mm/ss]
The Time option sets the system time.
IDE Master and IDE Slave
When entering setup, BIOS auto detects the presence of IDE devices. The Standard
CMOS Features menu shows the status of the auto detected IDE devices. The following
IDE devices are detected and shown in the Standard CMOS Features menu:
IDE Primary Master
IDE Primary Slave
Page 120
