NANO-LX EPIC SBC
UART Port A [Disabled]
Use the UART Port A option to select the I/O address and IRQ for the UART port A. The
UART Port A options are:
Disabled (Default)
3F8/IRQ4
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3
6.4.1 Flat Panel Configuration
Use the Flat Panel Configuration menu (BIOS Menu 6) to set the configuration settings
for the flat panel screen connected to the system.

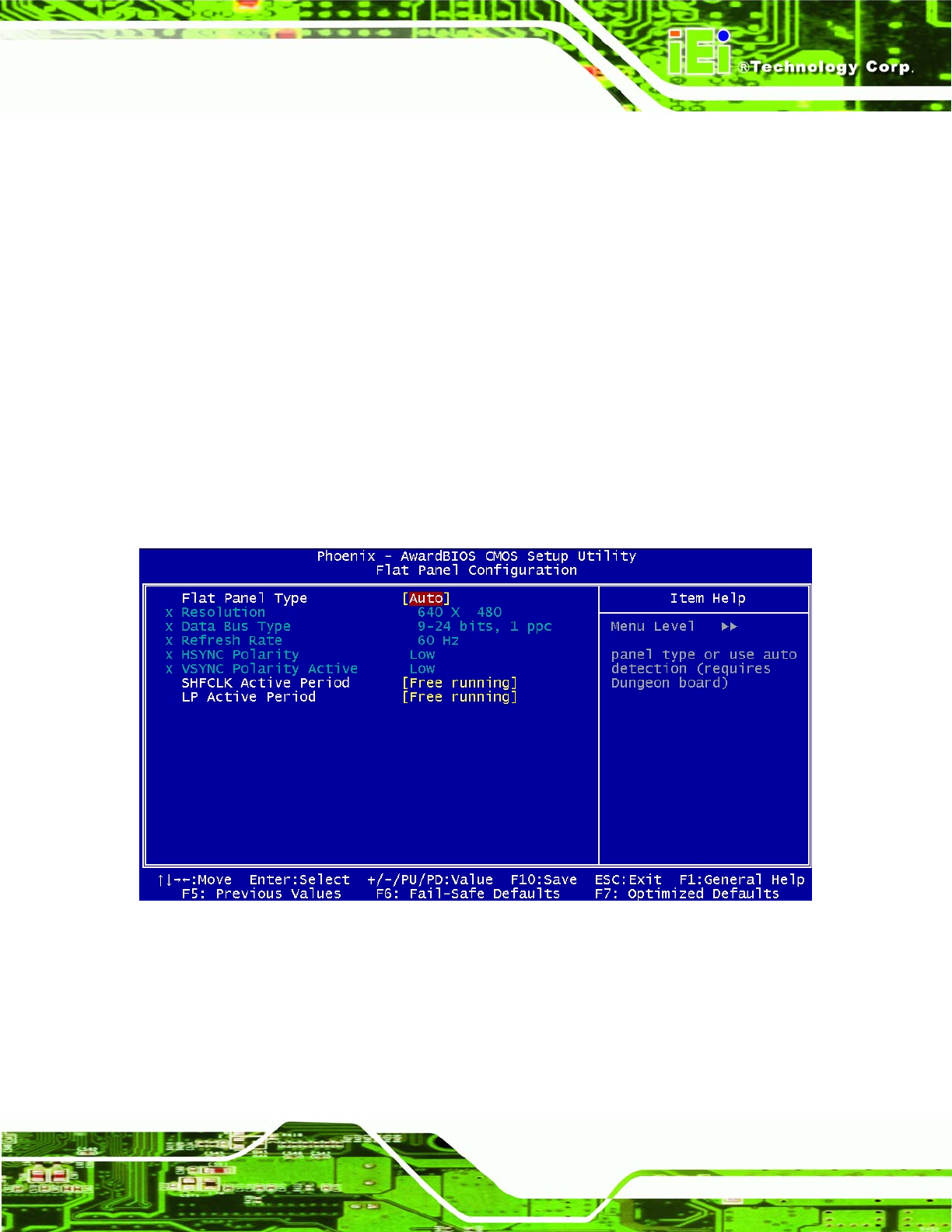

BIOS Menu 6: Flat Panel Configuration
Flat Panel Type [Auto]
Use the Flat Panel Type option to specify the type of flat panel screen connected to the
system.
Page 135
