NANO-LX EPIC SBC
Delay 4-sec
To shutdown the system the power button must be held
down longer than four seconds otherwise the system
enters a low power usage state.
Power-On by Alarm [Disabled]
Use the Power-On by Alarm to set the time when the system should automatically be
turned on.
Disabled
(Default) The real time clock (RTC) cannot generate a wake
event.
Enabled
If selected, the tune (hh:mm:ss) options can be set
to specify the exact time the system is roused.
6.7 PnP/PCI Configurations
Use the PnP/PCI Configurations menu (BIOS Menu 9) to set the plug and play, and PCI
options.

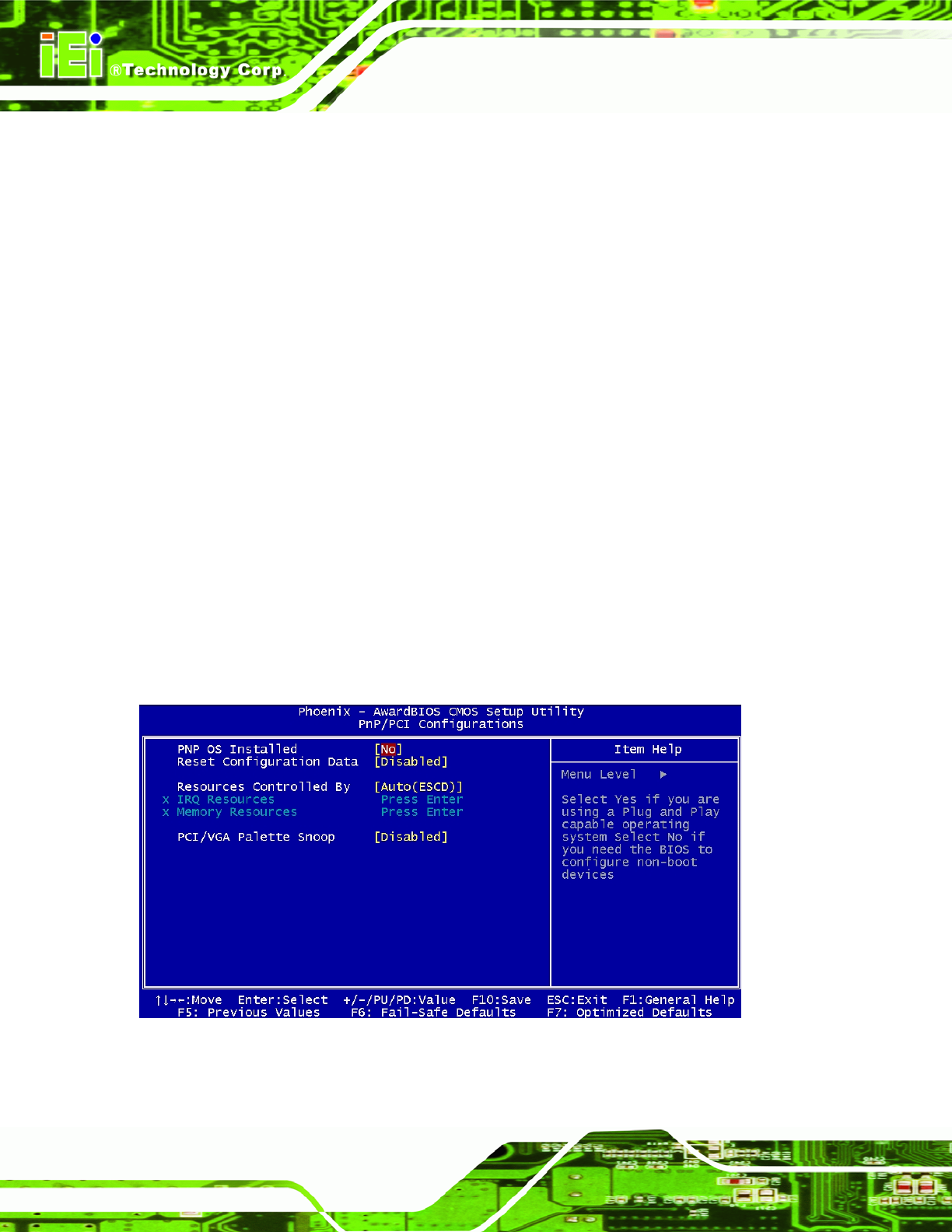

BIOS Menu 9: PnP/PCI Configurations
Page 148
