NANO-LX EPIC SBC
7.4 LAN Driver
To install the LAN driver, please follow the steps below.
Step 1: Click LAN from the AMD LX/GX CD Driver Menu to open a window to the
X:\LAN\Realtek (where X:\ is the system CD drive) folder on the driver CD.
Step 2: Open the RTL8100C folder.
Step 3: Locate the Setup program icon (
Figure 7-25).

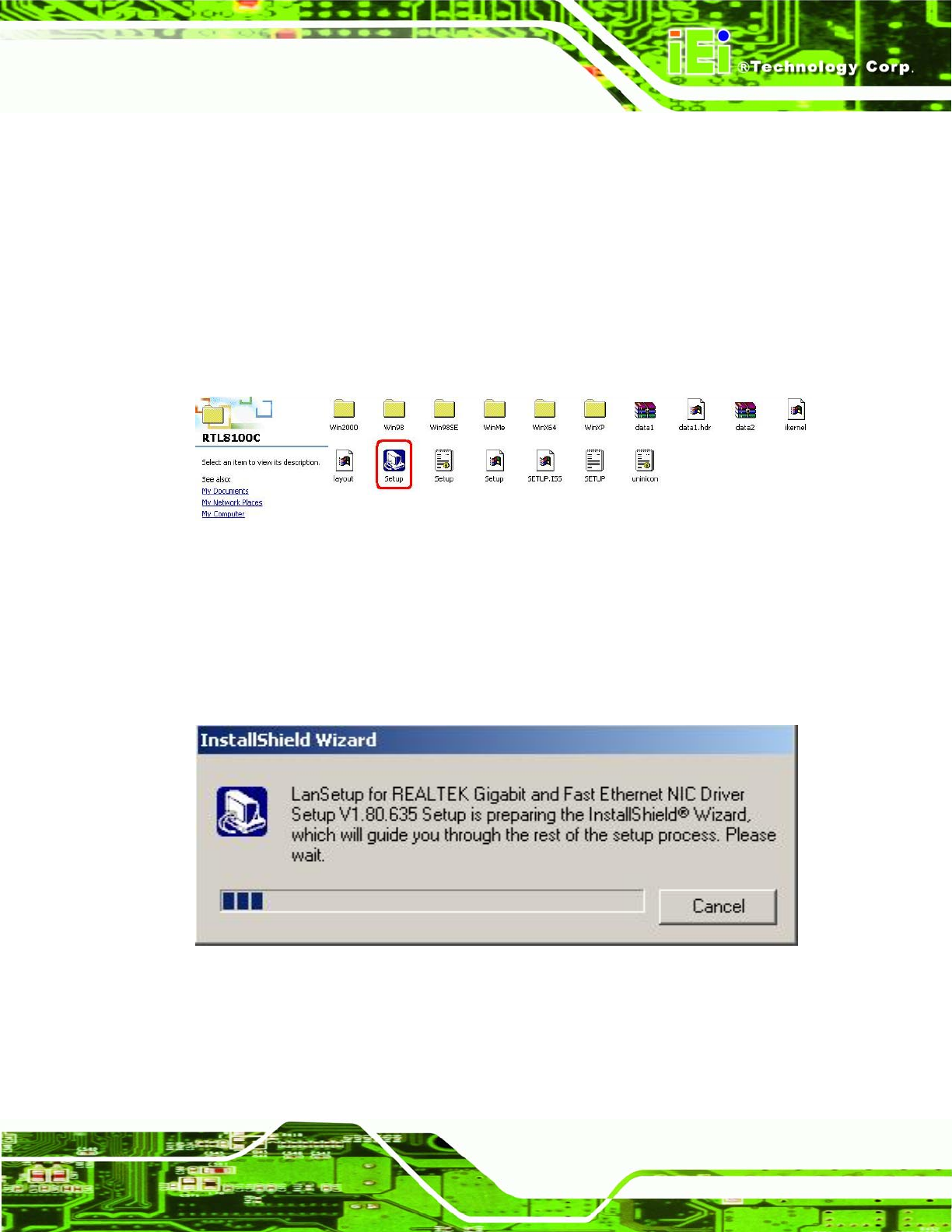

Figure 7-25: Locate the Setup Program Icon
Step 4: Double click the Setup program icon in
Figure 7-25.
Step 5: The Install Shield Wizard is prepared to guide the user through the rest of the
process (
Figure 7-26).
Figure 7-26: Preparing Setup Screen
Step 6: Once initialized, the Install Wizard welcome screen appears (
Figure 7-27).
