NANO-LX EPIC SBC
4.2 Internal Peripheral Connectors
Internal peripheral connectors on the SBC are only accessible when the SBC is outside of
the chassis. This section has complete descriptions of all the internal, peripheral
connectors on the NANO-LX SBC.
4.2.1 ATX Connector
CN Label: CN3
CN Type: 3-pin header
CN Pinouts: See
Table 4-4
CN Location: See Figure 4-3
The ATX connector is a 5V standby connection for the ATX power supply.
PIN DESCRIPTION
1 5VSB
2 NC
3 PS-ON
Table 4-4: CN3 Connector Pinouts

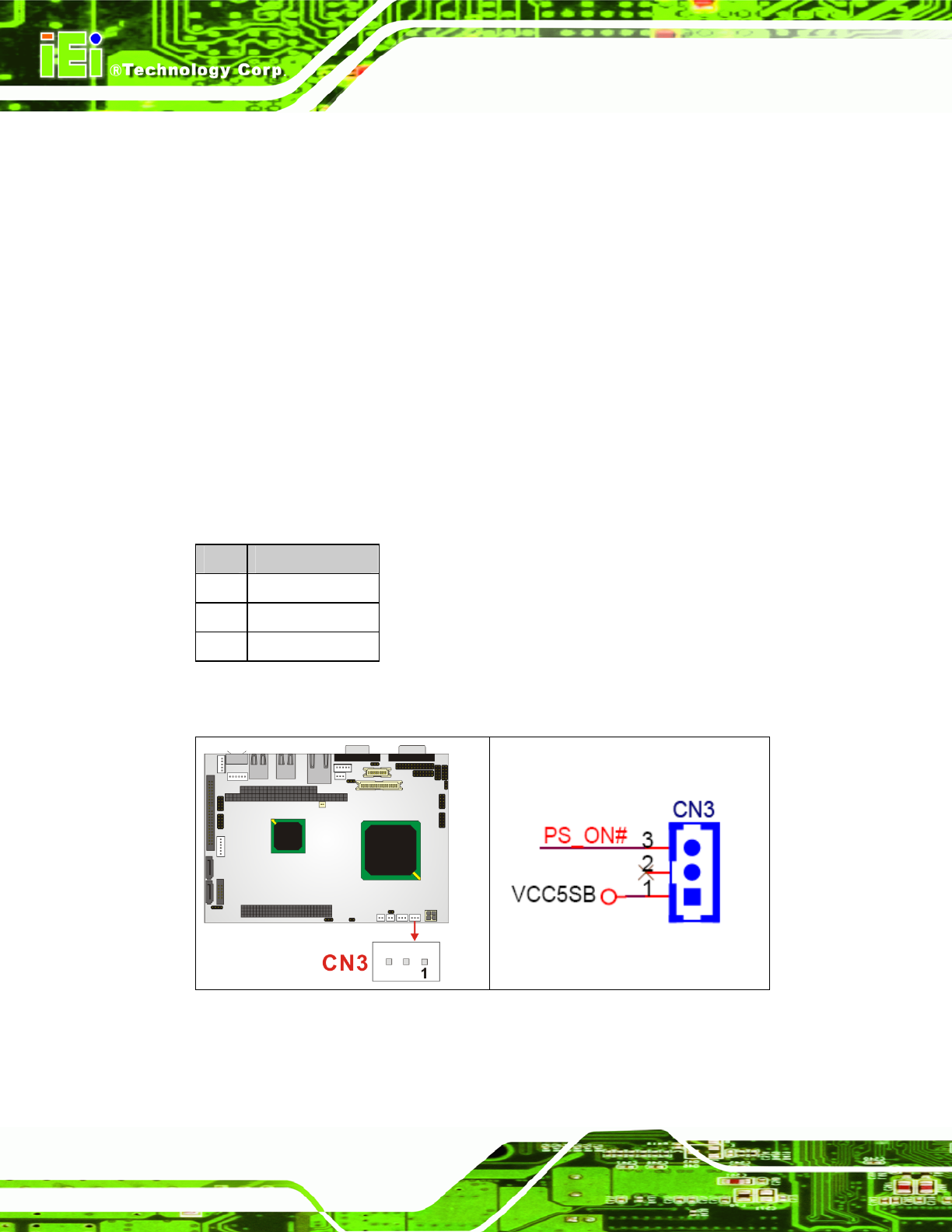

Figure 4-3: CN3 Connector Location
Page 52
