NANO-LX EPIC SBC
7 GND 8 GND
9 MIC1 10 MIC2
Table 4-7: CN9 Connector Pinouts

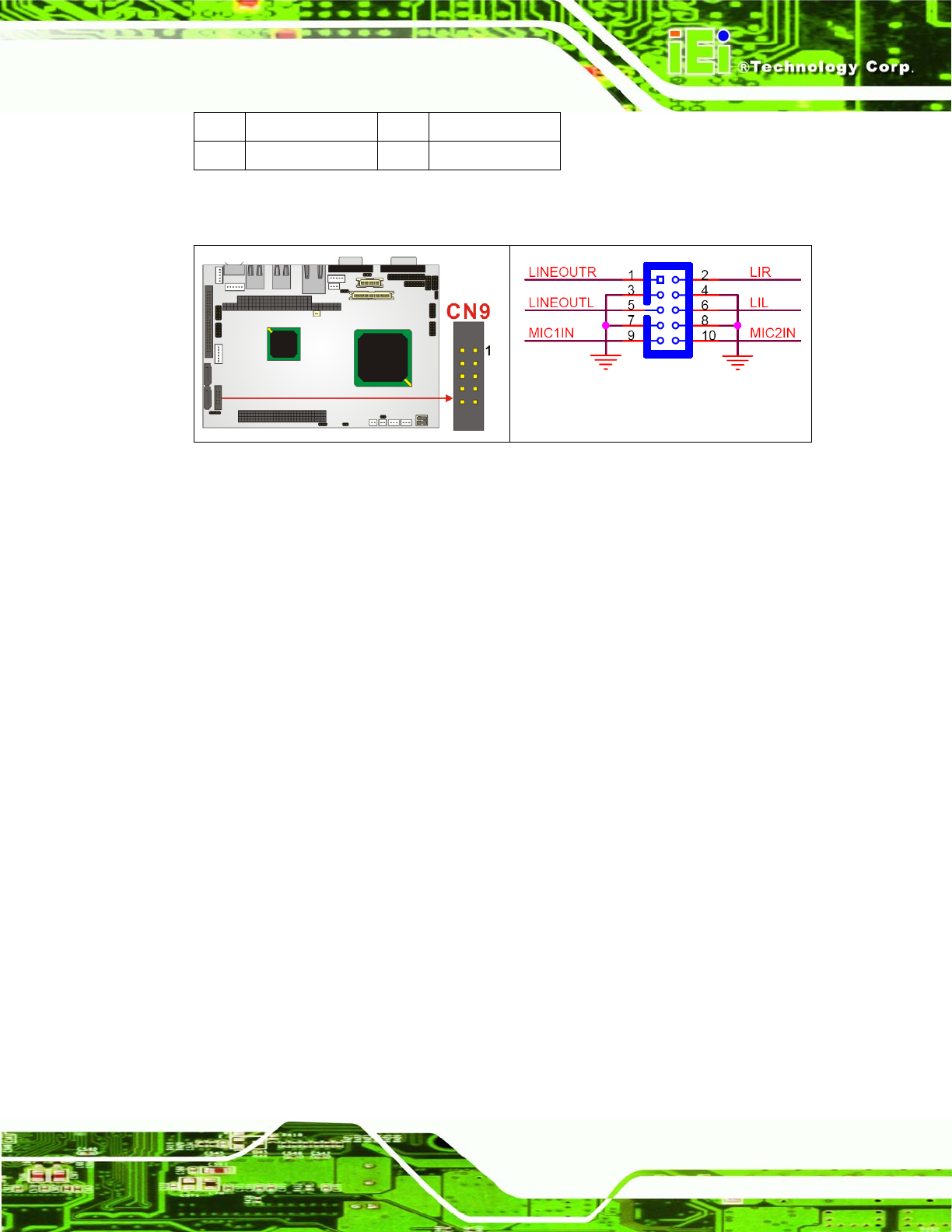

Figure 4-6: CN9 Connector Location
4.2.5 Battery Connector
CN Label: BT1
CN Type: 2-pin header
CN Pinouts: See
Table 4-8
CN Location: See Figure 4-7
This battery connector connects to an externally mounted 3V, Lithium, cell coin battery
(VARTA CR2032). The life expectancy of the battery is approximately 7 years. Depending
on the working condition, the life expectancy may be shorter.
Replacing the battery is not a user operation.
If the battery starts to weaken and lose voltage, contact a vendor or IEI for a replacement
module. Dispose of the used battery properly. Contact the local waste disposal agency for
disposal instructions. Do not dispose of a used battery with normal household waste.
Page 55
