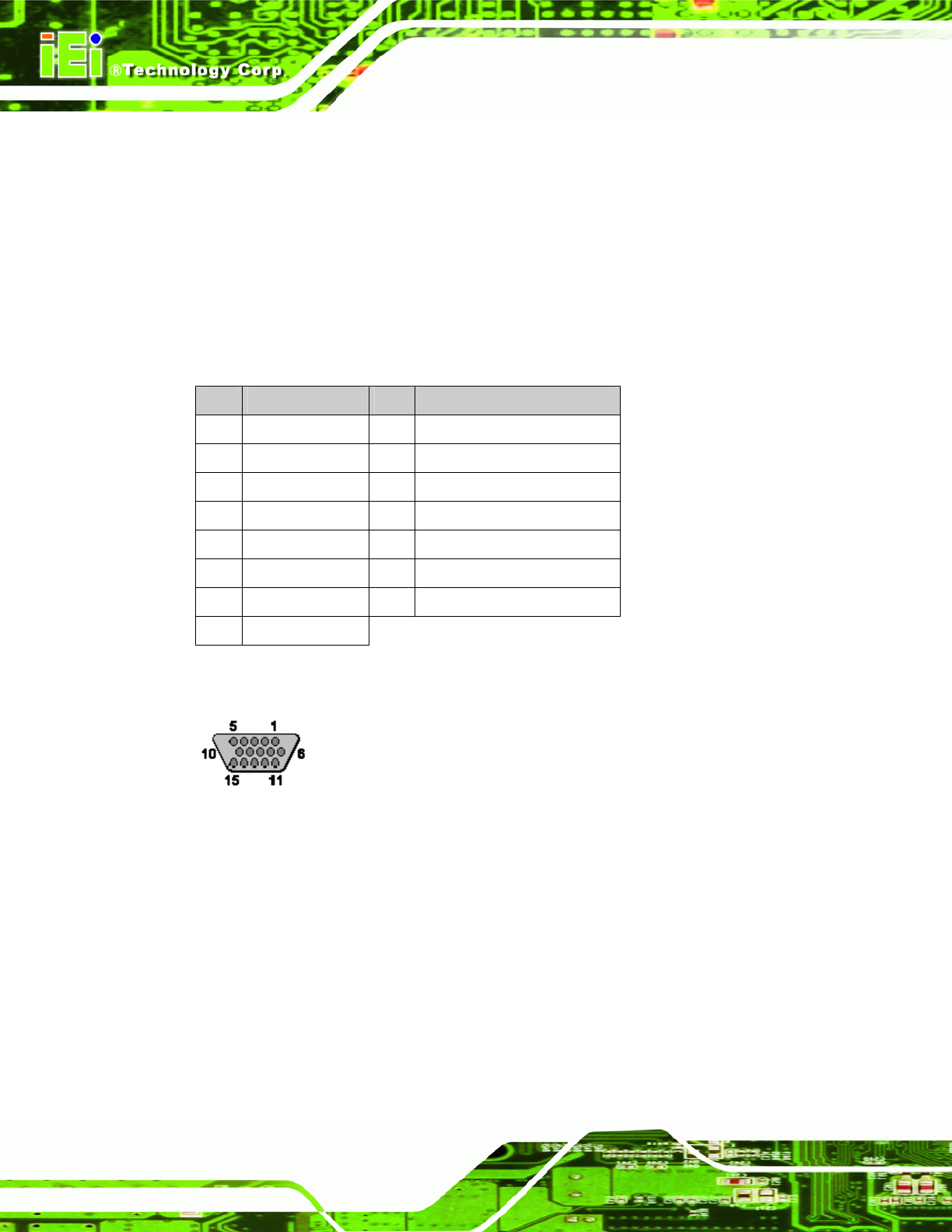

NANO-LX EPIC SBC
4.3.2 VGA Connector
CN Label: CN24
CN Type: HD-D-sub 15 Connector
CN Pinouts: See
Table 4-30 and Figure 4-28
CN Location: See Figure 4-26
The standard 15-pin VGA connector connects to a CRT or LCD monitor.
PIN DESCRIPTION PIN DESCRIPTION
1 Red 9 No Connect
2 Green 10 Ground
3 Blue 11 No Connect
4 No Connect 12 DDC DAT
5 Ground 13 Horizontal Synchronization
6 Ground 14 Vertical Synchronization
7 Ground 15 DDC Clock
8 Ground
Table 4-30: CN24 Connector Pinouts
Figure 4-28: CN24 Connector
4.3.3 Ethernet Connector
CN Label: CN27
CN Type: RJ-45
CN Pinouts: See
Table 4-31 and Figure 4-29
CN Location: See Figure 4-26
Page 82
