PM-945GSE-N270 User Manual
Page 36
43 INPACK# 44 REG#
45 BVD2 46 BVD1
47 D8 48 D9
49 D10 50 GND
Table 3-6: CompactFlash® Connector Pinouts
3.2.6 Fan Connector
CN Label: CPU_FAN1
CN Type:
3-pin header
CN Location:
See Figure 3-8
CN Pinouts:
See Table 3-7
The fan connector attaches to a cooling fan.

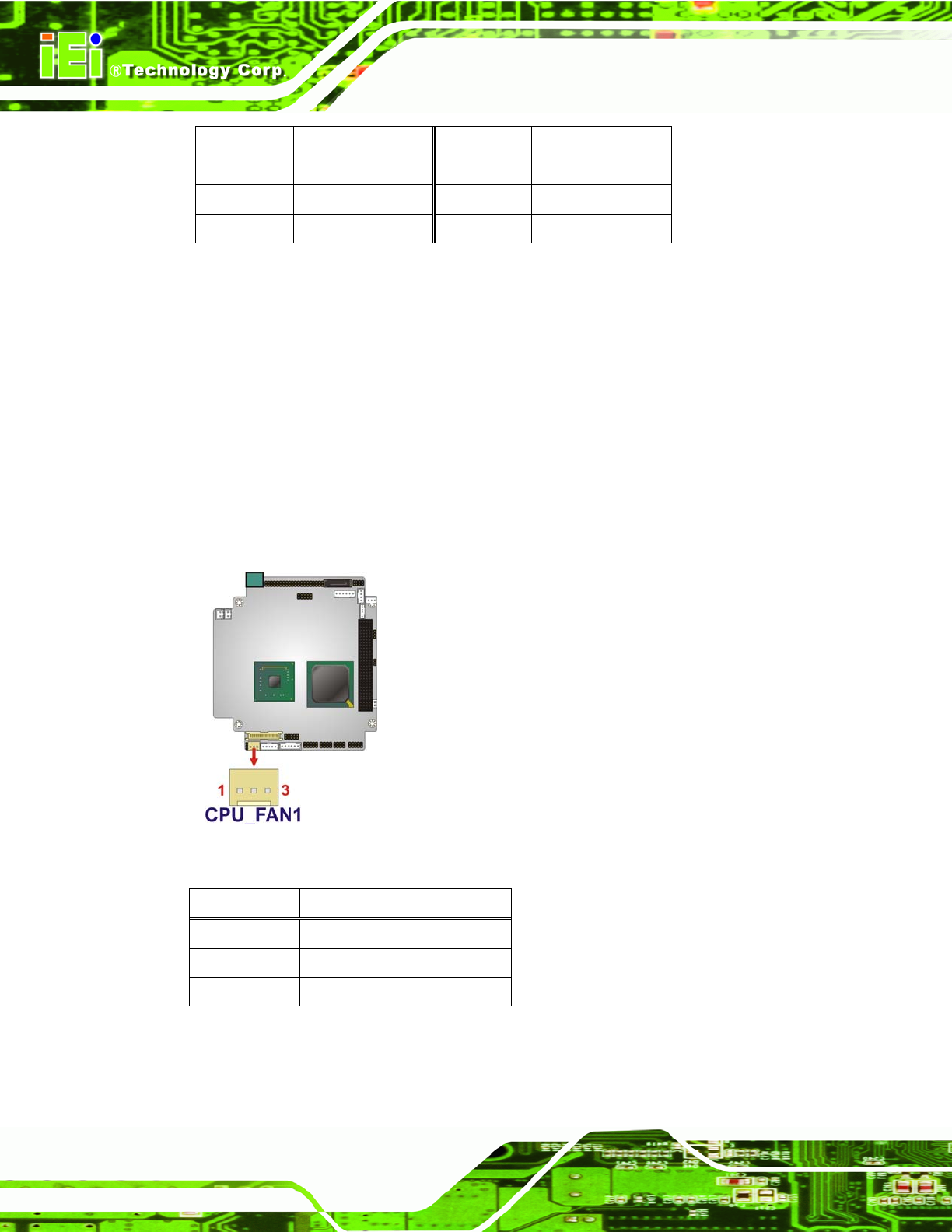

Figure 3-8: Fan Connector Location
PIN NO. DESCRIPTION
1 Power-
2 Power+
3 Fan Speed Detect
Table 3-7: Fan Connector Pinouts
