CN Pinouts:
See Figure 3-10
CN Lo
cation:
See Table 3-9
The keybo
ard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.

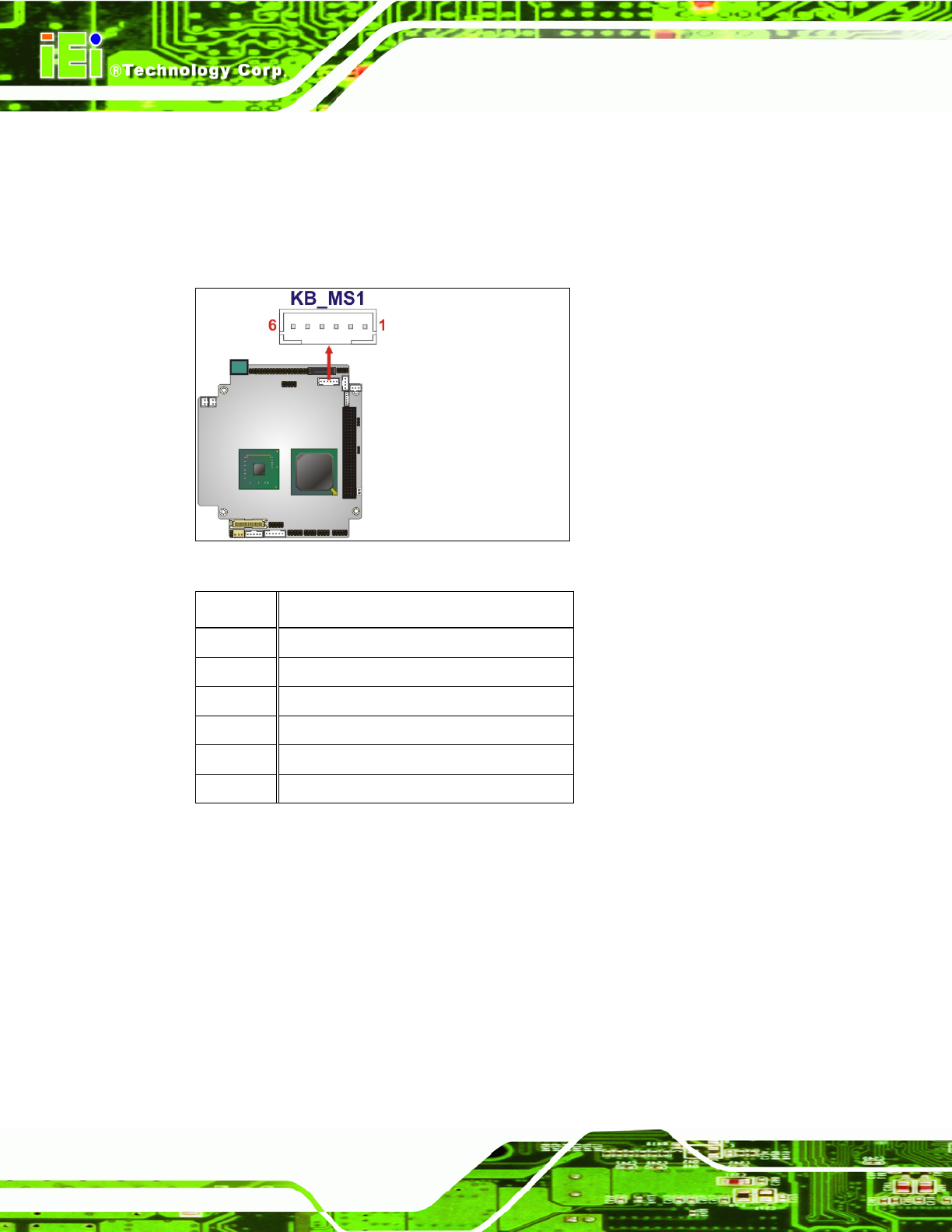

Figure 3-10: Keyboard/Mouse Connector Location
PIN NO. DESCRIPTION
1 VCC5
2 MOUSE DATA
3 MOUSE CLOCK
4 KEYBOARD DATA
5 KEYBOARD CLOCK
6 GND
Table 3-9: Keyboard/Mouse Connector Pinouts
3.2.9 LAN Connector
CN Label:
LAN1
CN Type:
10-pin box header
CN Location:
See Figure 3-11
CN Pinou
ts:
See Table 3-10
