PM-945GSE-N270 User Manual
Page 40

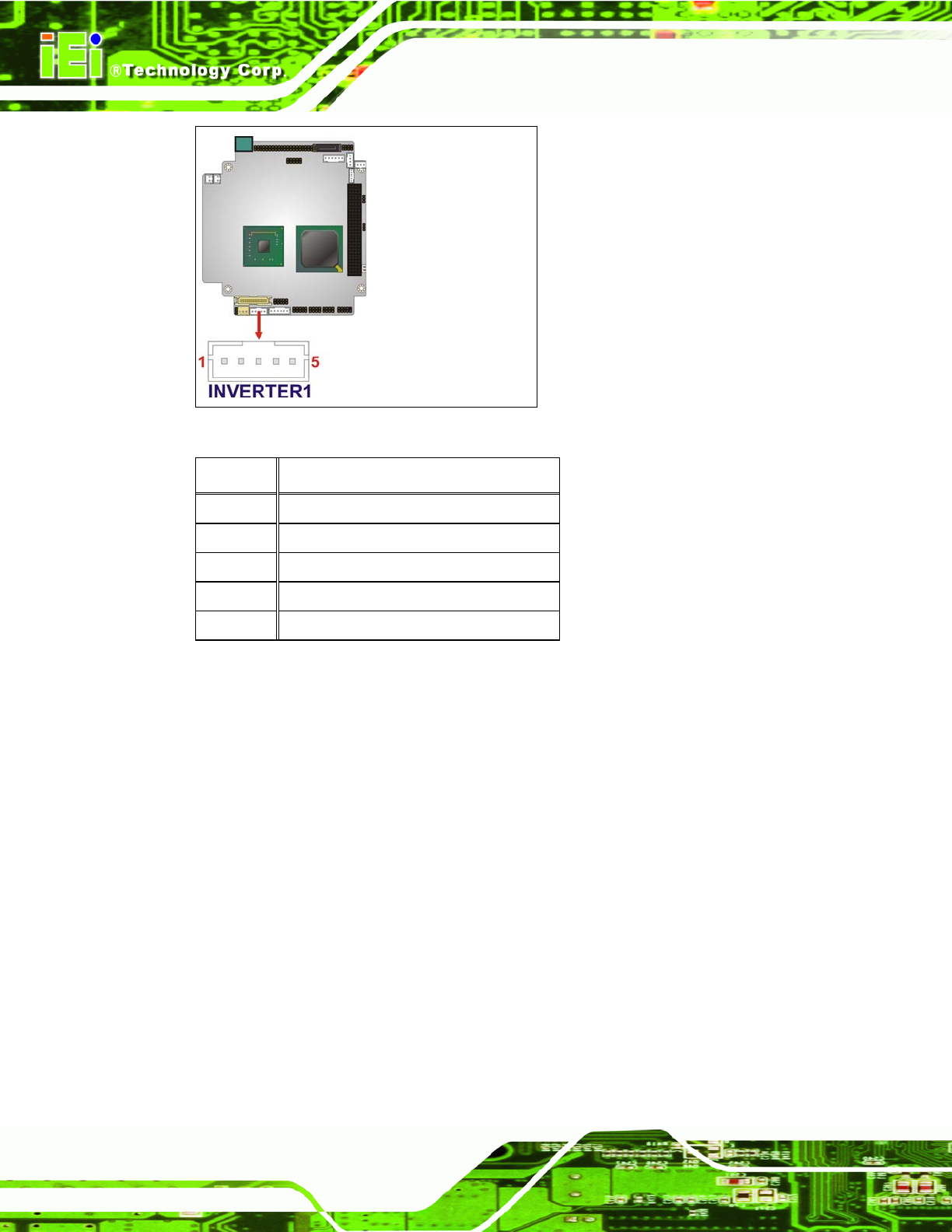

Figure 3-12: LCD Inverter Connector Location
PIN NO. DESCRIPTION
1 LCD_BKLTCTL
2 GROUND
3 VCC12
4 GROUND
5 LCD_BKLEN
Table 3-11: LCD Inverter Connector Pinouts
3.2.11 LED and +5V Output Connector
CN Label: LED_C1
CN Type:
6-pin wafer (1x6)
CN Location:
See Figure 3-13
CN Pinouts:
See Table 3-12
The LED and +5V output connector connects to the hard drive activity LED and power
LED on the system front panel and provides a +5V power output.
