PM-945GSE-N270 User Manual
Page 41

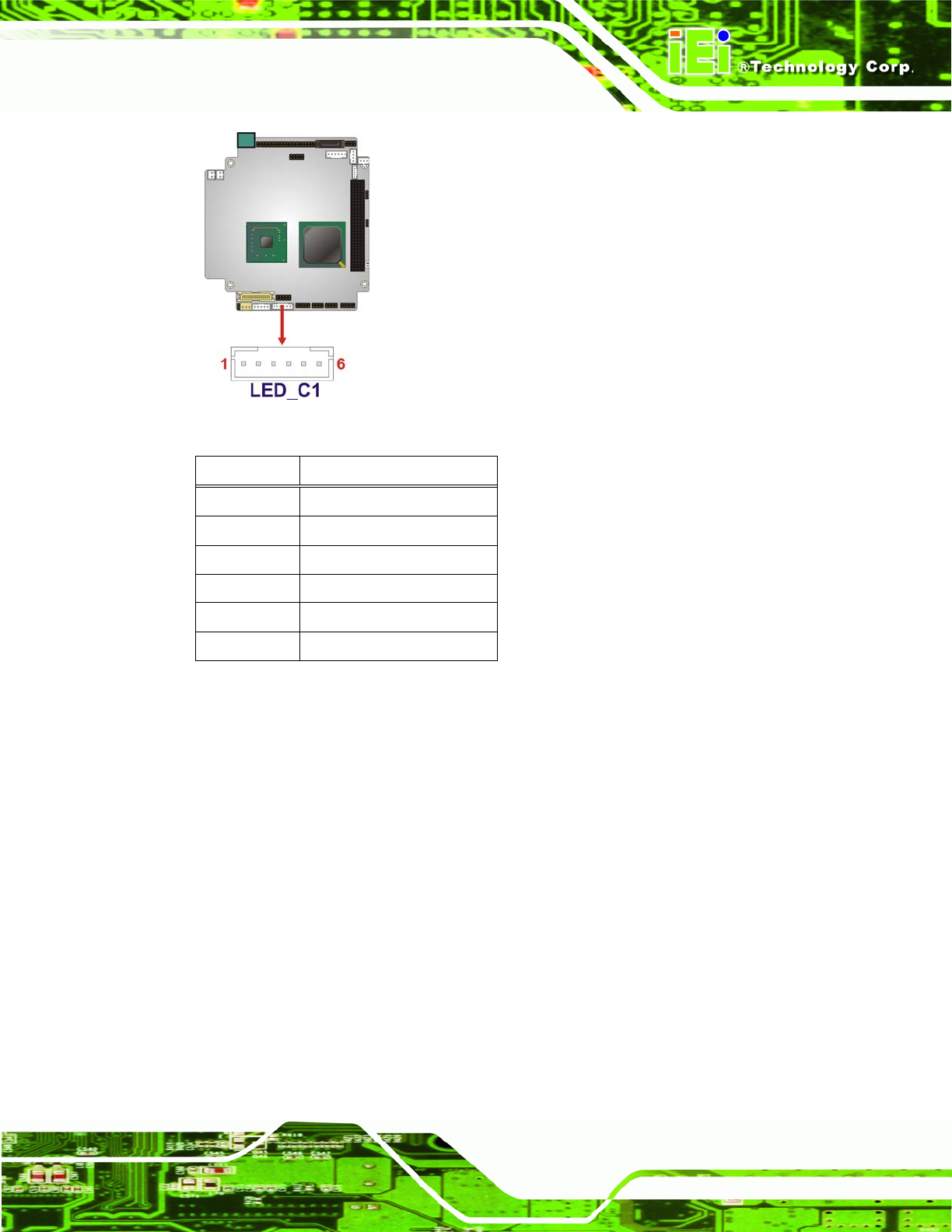

Figure 3-13: LED Connector Locations
PIN NO. DESCRIPTION
1 +5 V
2 GND
3 Power LED+
4 Power LED-
5 HDD LED+
6 HDD LED-
Table 3-12: LED Connector Pinouts
3.2.12 PCI-104 Connector
CN Label: PC104_PLUS1
CN Type:
120-pin socket
CN Location:
See Figure 3-14
CN Pinouts:
See Table 3-13
The PCI-104 connector is for installing a PCI-104 expansion card.
