PM-945GSE-N270 User Manual
Page 47
PIN NO. DESCRIPTION
1 RXD485#
2 RXD485+
3 TXD485+
4 TXD485#
Table 3-17: RS-422/RS-485 Serial Port Connector Pinouts
3.2.17 LVDS LCD Connector
CN Label:
LVDS1
CN Type:
30-pin crimp connector
CN Location:
See Figure 3-19
CN Pinou
ts:
See Table 3-18
The LVDS
connector is connected to a LVDS LCD display device.

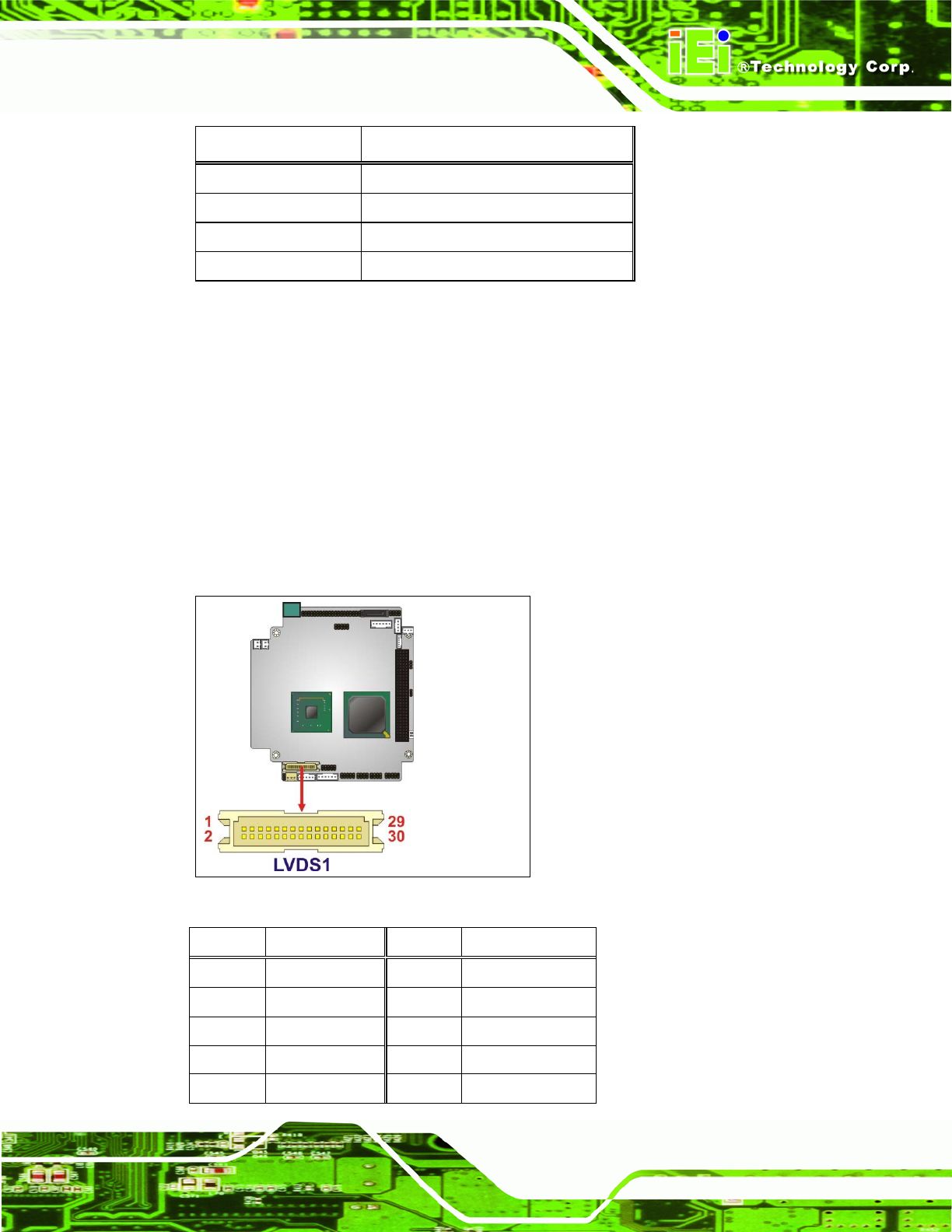

Figure 3-19: LVDS LCD Connector Locations
Pin Description Pin Description
1 GROUND 2 GROUND
3 LVDSA_Y0+ 4 LVDSA_Y0-
5 LVDSA_Y1+ 6 LVDSA_Y1-
7 LVDSA_Y2+ 8 LVDSA_Y2-
9 LVDSA_CLK+ 10 LVDSA_CLK-
