PM-945GSE-N270 User Manual
Page 51
CN Type:
10-pin box header
CN Location:
See Figure 3-23
CN Pinouts:
See Table 3-22
The VGA connector connects to a monitor.

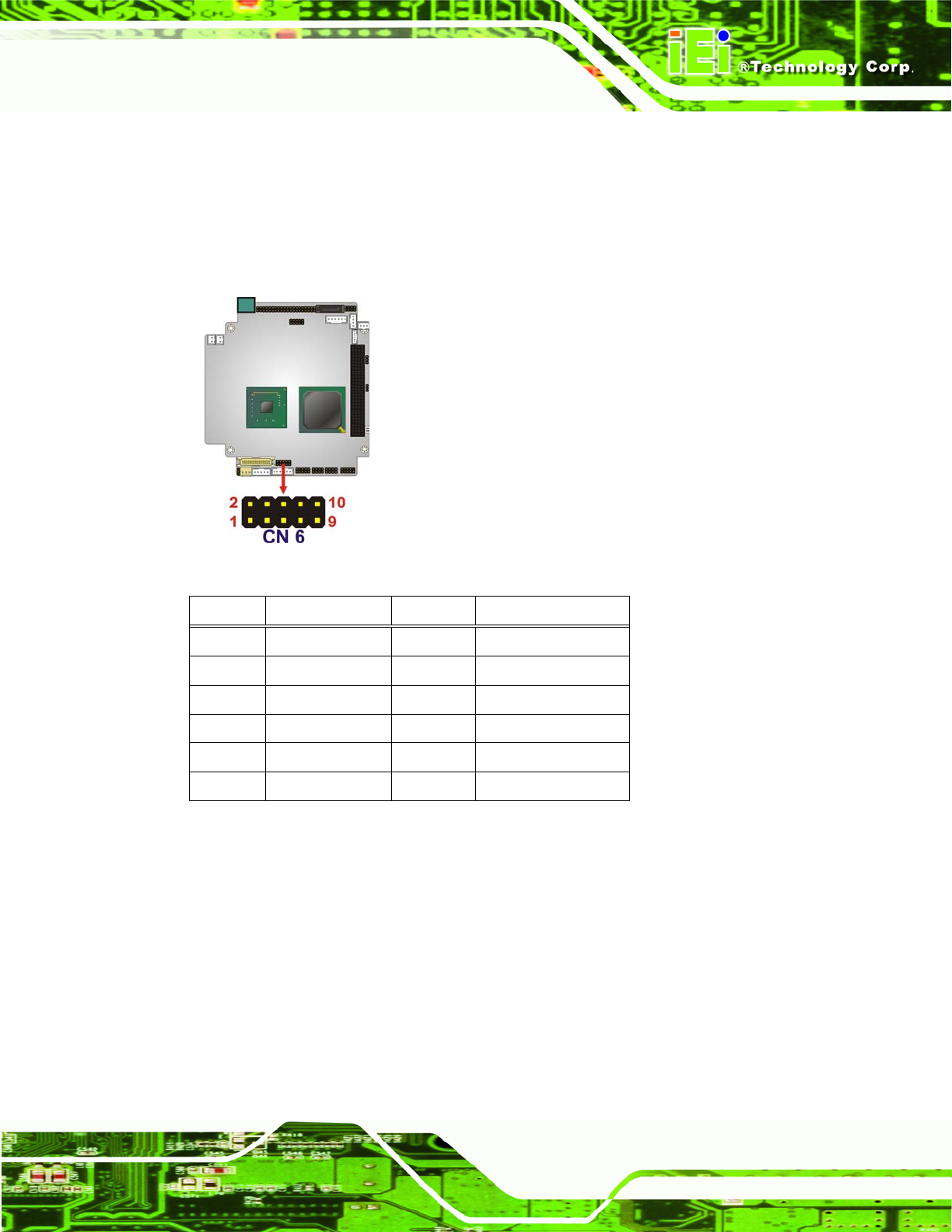

Figure 3-23: VGA Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 L_RED 2 5 V_DDCLK
3 L_GREEN 4 5 V_DDCDA
5 L_BLUE 6 GND
7 5 VHSYNC 8 GND
9 5 VVSYNC 10 CRT_PLUG#
9 5 VVSYNC 8 GND
Table 3-22: VGA Connector Pinouts
