PM-945GSE-N270 User Manual
Page 64

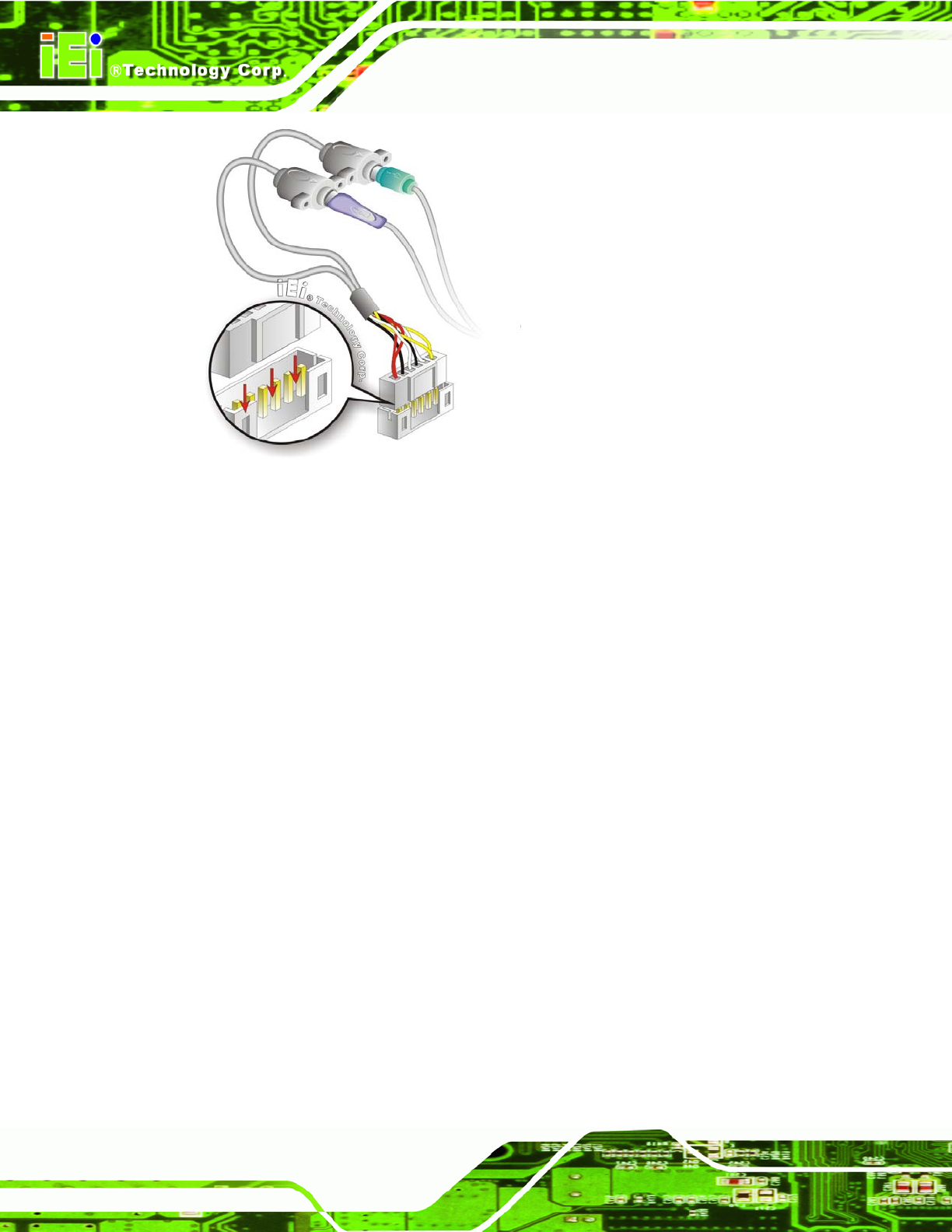

Figure 4-7: Keyboard/mouse Y-cable Connection
Step 6: Attach PS/2 connectors to the chassis. The keyboard/mouse Y-cable
connector is connected to two PS/2 connectors. To secure the PS/2 connectors
to the chassis please refer to the installation instructions that came with the
chassis.
Step 7: Connect the keyboard and mouse. Once the PS/2 connectors are connected
to the chassis, a keyboard and mouse can each be connected to one of the
PS/2 connectors. The keyboard PS/2 connector and mouse PS/2 connector are
both marked. Please make sure the keyboard and mouse are connected to the
correct PS/2 connector. Step 0:
4.7.2 LVDS LCD Installation
The PM-945GSE-N270 can be connected to a TFT LCD screen through the 30-pin LVDS
crimp connector on the board. To connect a TFT LCD to the PM-945GSE-N270, please
follow the steps below.
Step 1: Locate the connector. The location of the LVDS connector is shown in
Chapter 3.
