PM-945GSE-N270 User Manual
Page 66

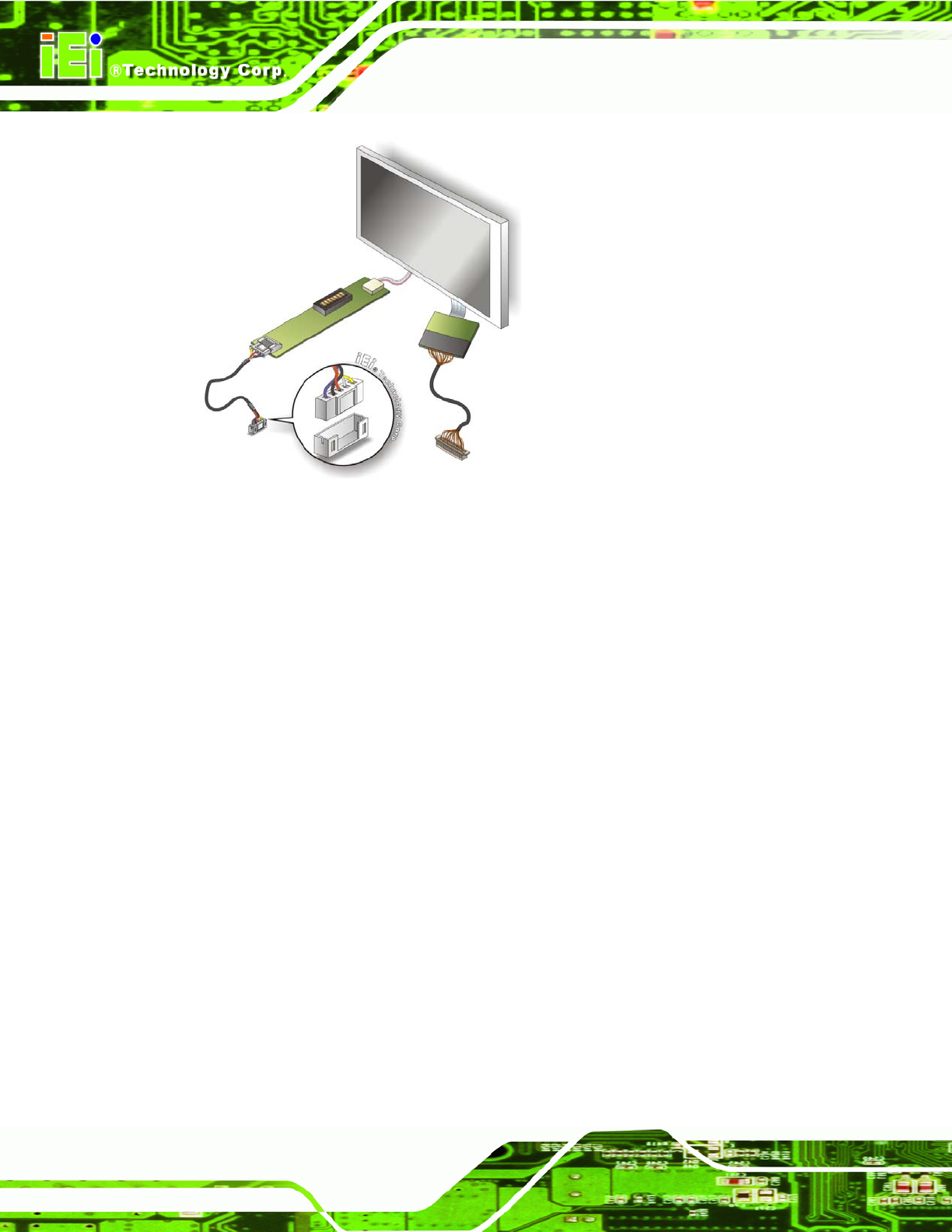

Figure 4-9: Backlight Inverter Connection
4.7.3 SATA Drive Connection
The PM-945GSE-N270 is shipped with two SATA drive cables and one SATA drive power
cable. To connect the SATA drives to the connectors, please follow the steps below.
Step 1: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Press the clip on the connector at the end of the
SATA cable and insert the cable connector into the on-board SATA drive
connector. See Figure 4-10.
