PM-P006UPS DC/DC Converter Module
Page 3
RoHS compliant
I/O interface:
o SMBus/I
2
C
o RS-232
Utility software: pull data out through RS-232 to system
Total output capacity: 65W
Input Voltage: 6V to 36V DC
Output Voltage:
Voltage +5V +12V -12V +3.3V 5VSB
Max. Load
10A 4A 0.1A 8A 1A
Table 1-1: Output Voltage
Dimensions: 90mm x 96mm
Environment:
o Operating temperature: -20°C ~ +85°C
o Storage temperature: -40°C ~ +125°C
Weight (NW): 178g

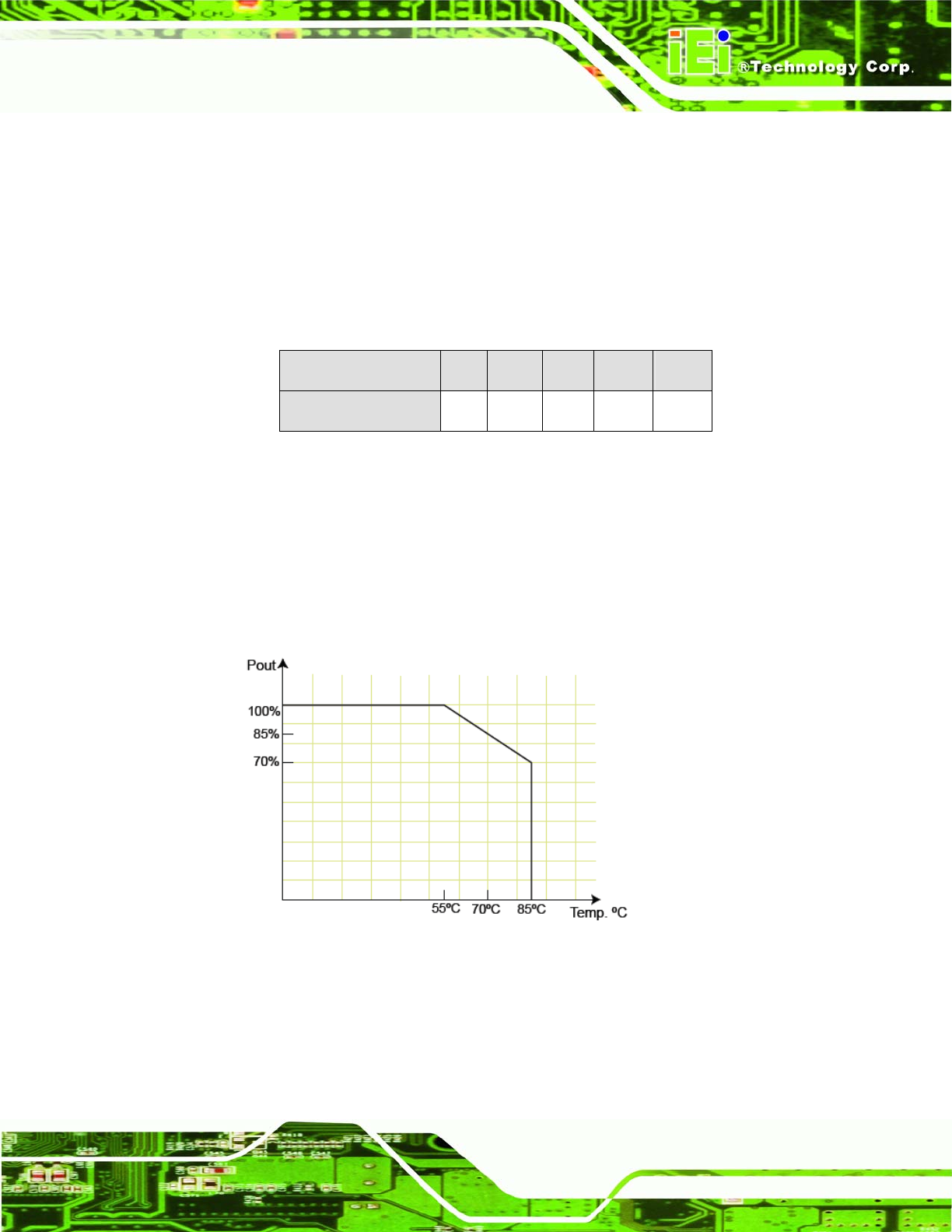

Figure 1-2: Output Power and Temperature
