4.2.2 Battery Connectors
CN Label: J1, J2
CN Type:
7-pin wafer connector (1x7)
CN Location: See
165H165H173HFigure 4-3
CN Pinouts: See
166H166H174HTable 4-4
This connector is connected to the smart battery.

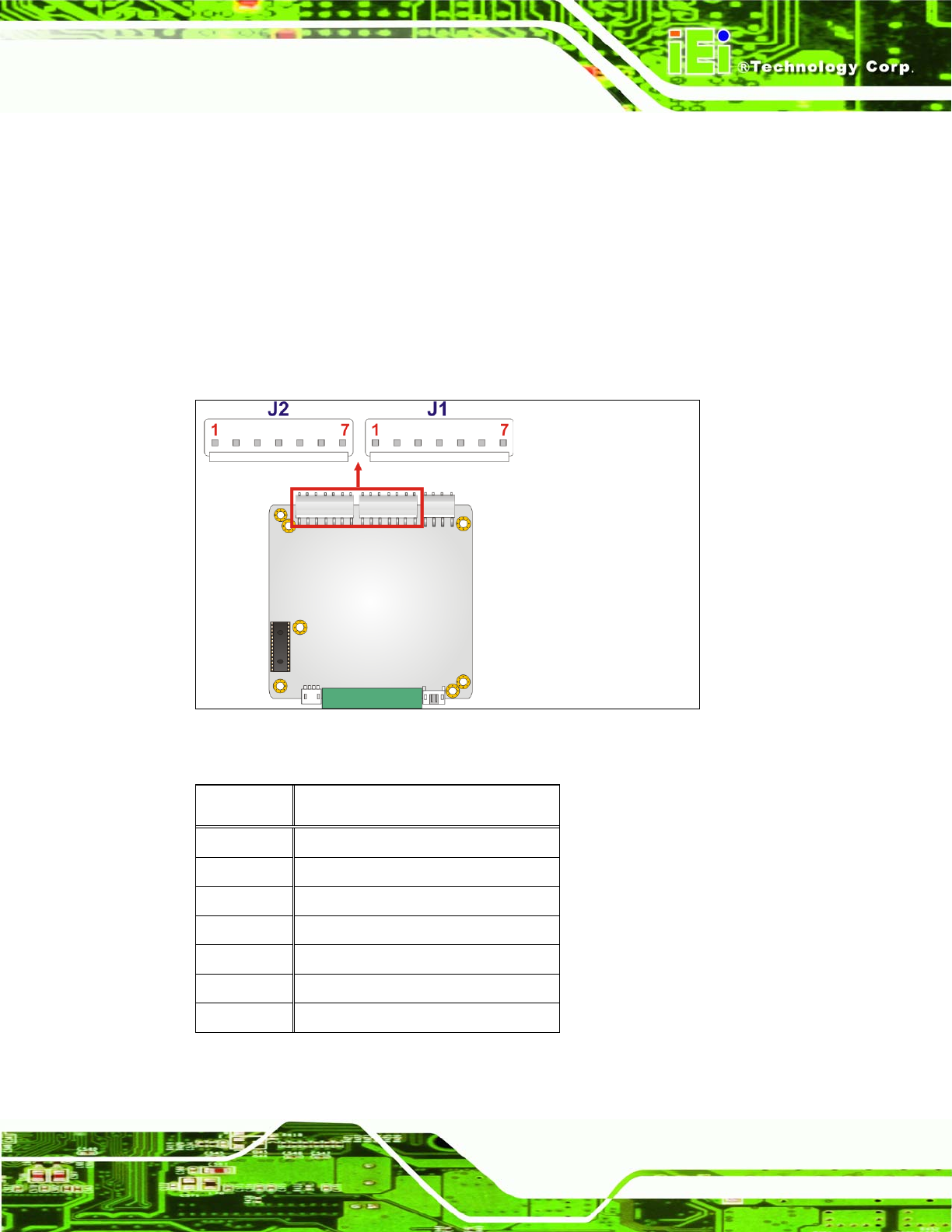

Figure 4-3: Battery Connector Locations
PIN NO. DESCRIPTION
1 BAT+
2 BAT+
3 Clock
4 DATA
5 Temp
6 GROUND
7 GROUND
Table 4-4: Battery Connector Pinouts
