User Manual

PM-P006UPS DC/DC Converter Module
Page 20

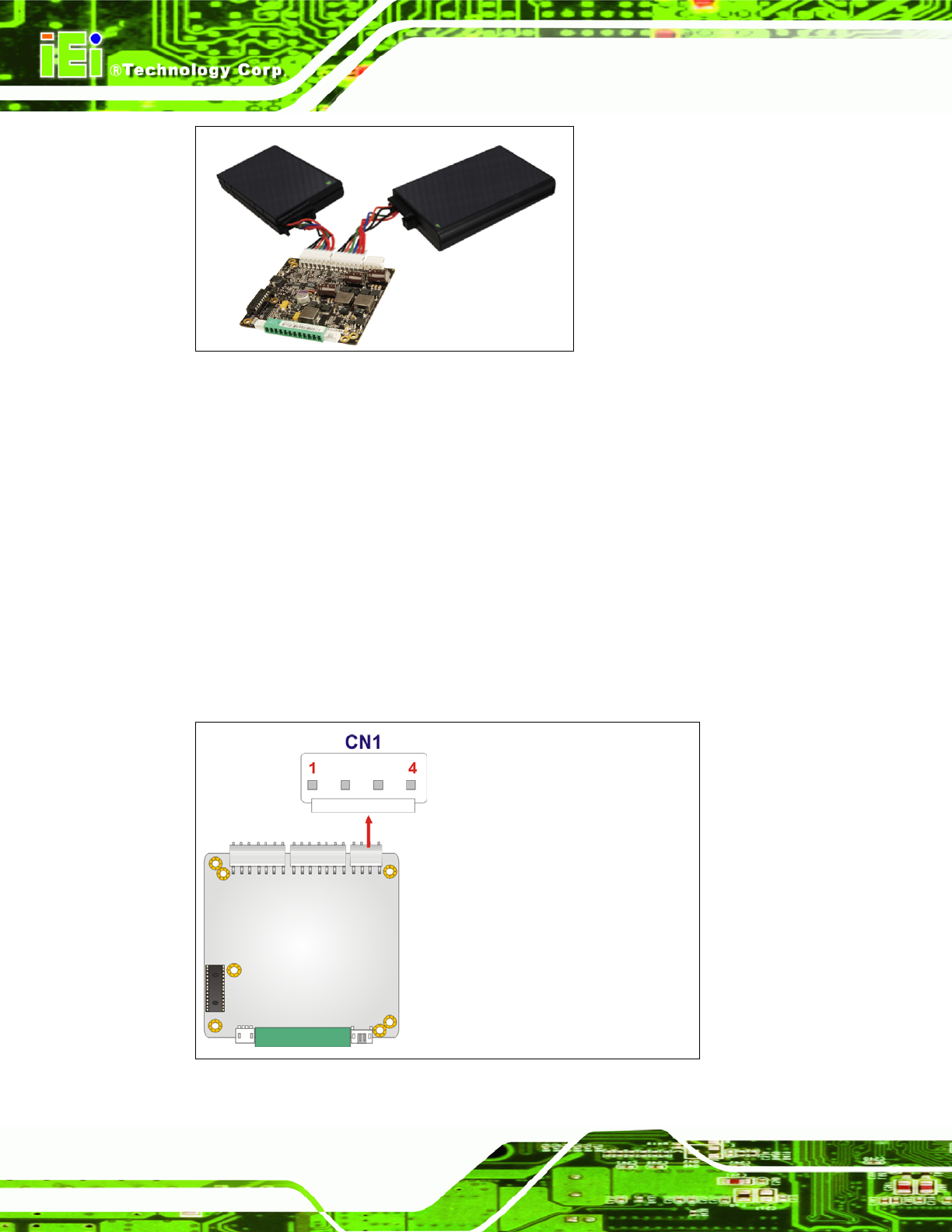

Figure 4-4: Battery Connected
4.2.3 Input Power Connector
CN Label: CN1
CN Type:
4-pin wafer connector (1x4)
CN Location: See
167H167H175HFigure 4-5
CN Pinouts: See
168H168H176HTable 4-5
The input power connector is connected to power source, such as a power adapter or a
terminal block.
Figure 4-5: Input Power Connector Location
