User Manual

PM-P006UPS DC/DC Converter Module
Page 21

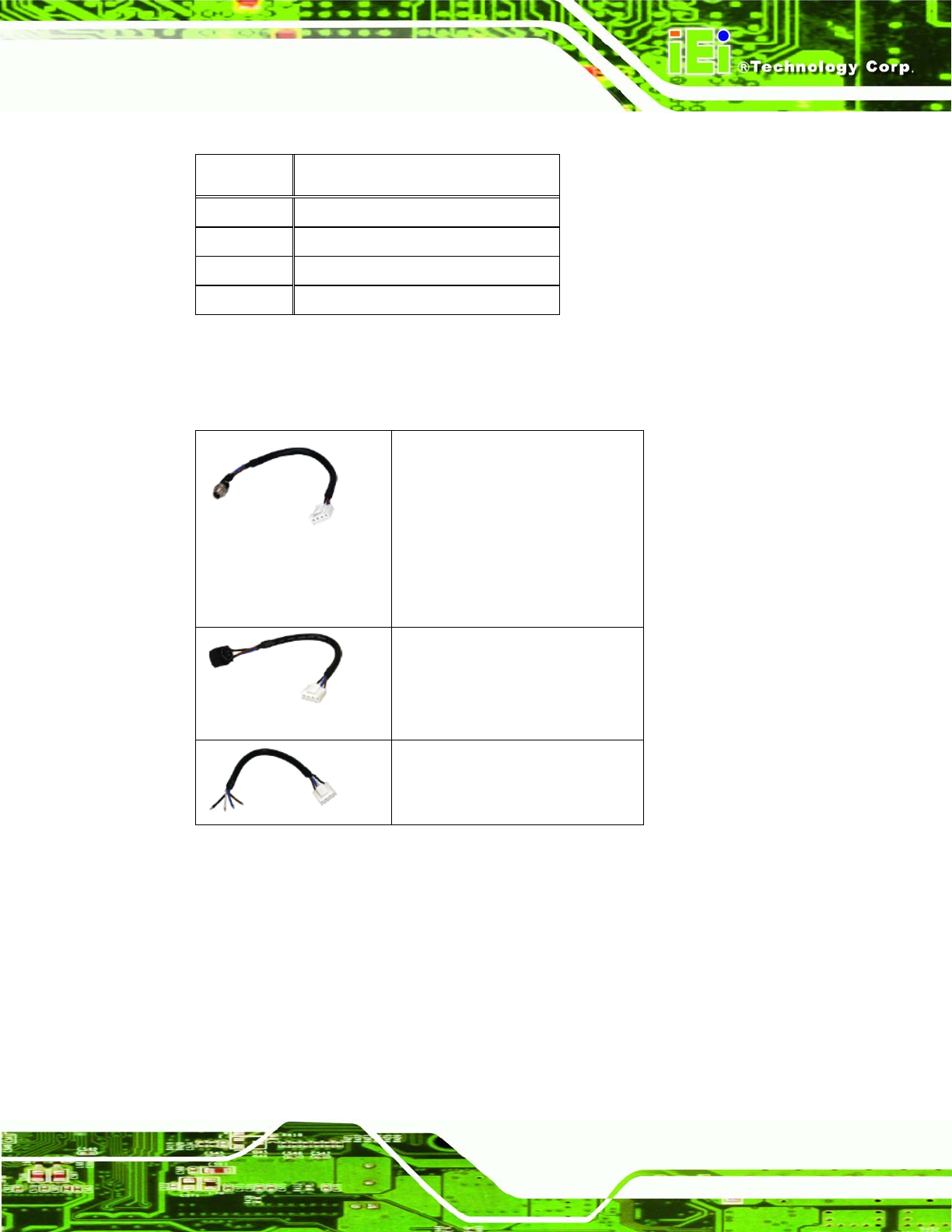

PIN NO. DESCRIPTION
1 VIN
2 VIN
3 GROUND
4 GROUND
Table 4-5: Input Power Connector Pinouts
Use either one of the following cables to connect CN1 with power source:
Cable for following AC-DC
adapters
-FSP0601AD101C 60W
-UP0451E12P 45W
-UP0251E12PL 25W
(P/N: CB-P1LP4-RS)
Cable for 63000-FSP120AAB-RS
120W AC-DC adapter
(P/N: CB-MD4P4-RS)
Cable for Terminal Block
(P/N: CB-NOLP4-RS)
Table 4-6: CN1 Connector Cables
4.2.4 Output Power Connectors
CN Label: CN7
CN Type:
12-pin connector (1x12)
CN Location: See
169H169H177HFigure 4-6
CN Pinouts: See
170H170H178HTable 4-7
