User Manual

PM-P006UPS DC/DC Converter Module
Page 23
4.2.5 RS-232 Cable Connector
CN Label: JP2
CN Type:
3-pin wafer connector (1x3)
CN Location: See
171H171H179HFigure 4-7
CN Pinouts: See
172H172H180HTable 4-8
This connector enables the PM-P006UPS to communicate with the SBC through RS-232
serial port.

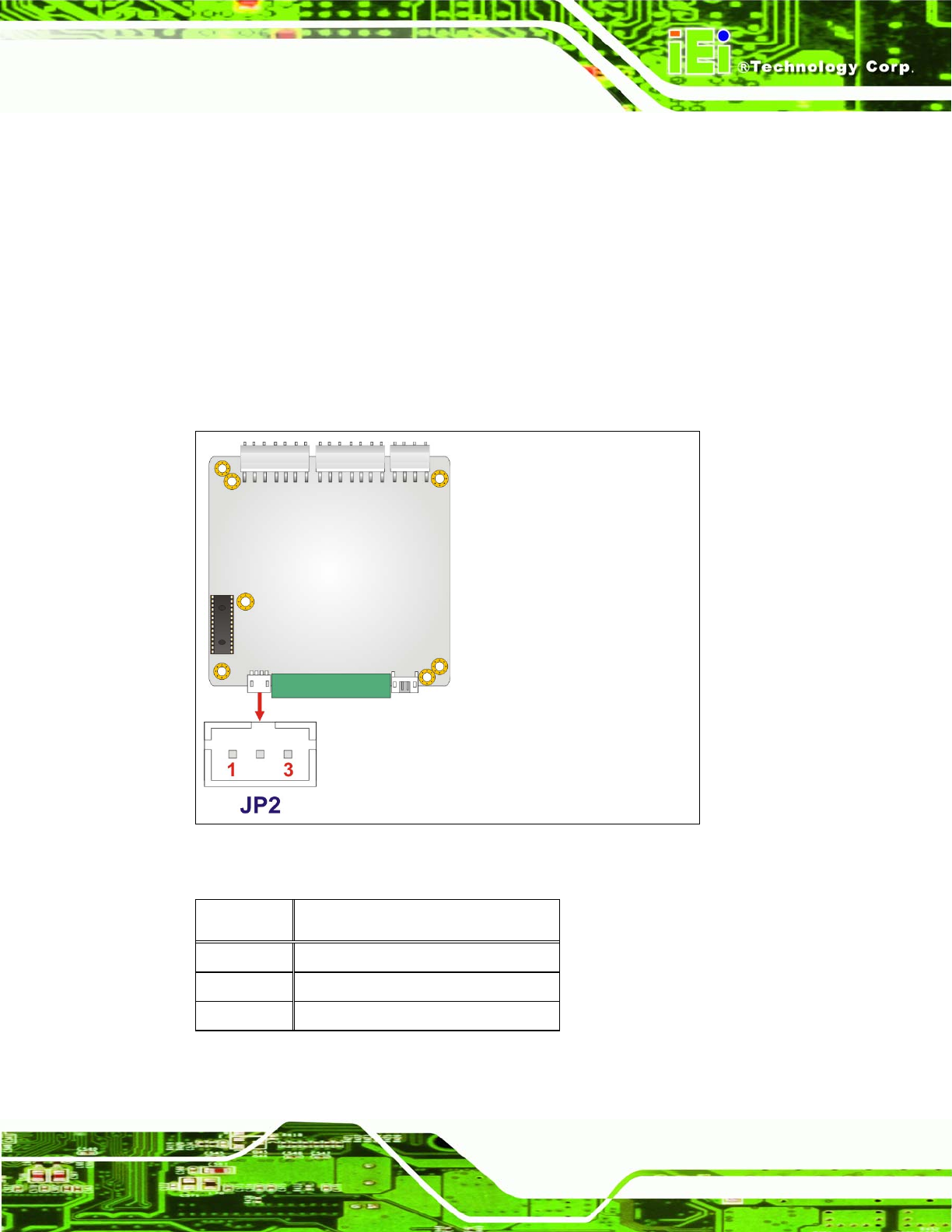

Figure 4-7: RS-232 Cable Connector Location
PIN NO. DESCRIPTION
1 GROUND
2 TX
3 RX
Table 4-8: RS-232 Cable Connector Pinouts
