User Manual

PM-P006UPS DC/DC Converter Module
Page 31
5.2.3 Battery Information
Click on the BATTERY A or BATTERY B tab to view the information of battery A or battery
B. The listed information includes battery type, capacity, output voltage, temperature,
charging rate, discharging rate and battery remaining time (
180H180H191HFigure 5-9). The values listed
are updated per second.

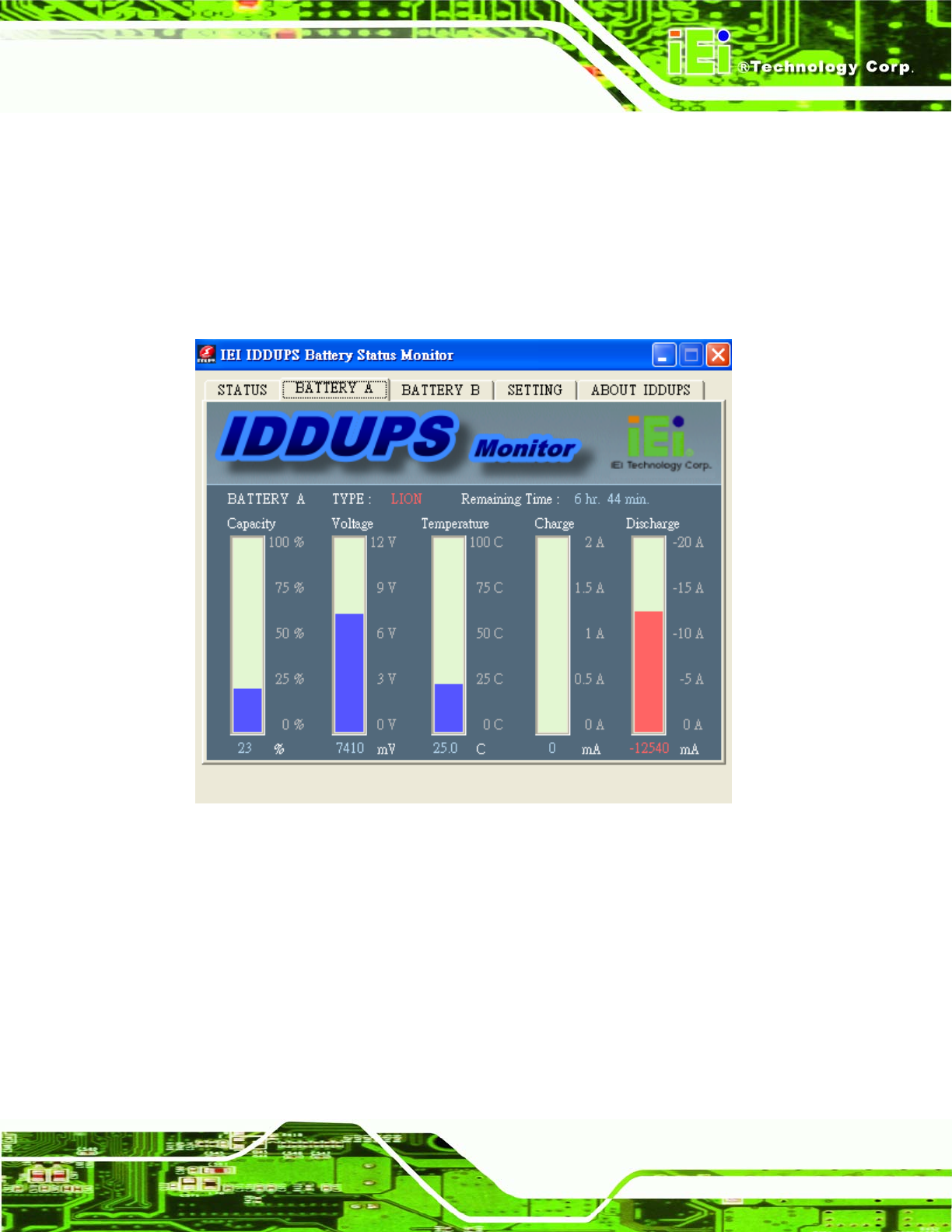

Figure 5-9: Battery Information
5.2.4 Setting
Click on the SETTING tab to select the COM port or enable/disable the special event
pop-up window (
181H181H192HFigure 5-10).
