User Manual

PM-P006UPS DC/DC Converter Module
Page 32

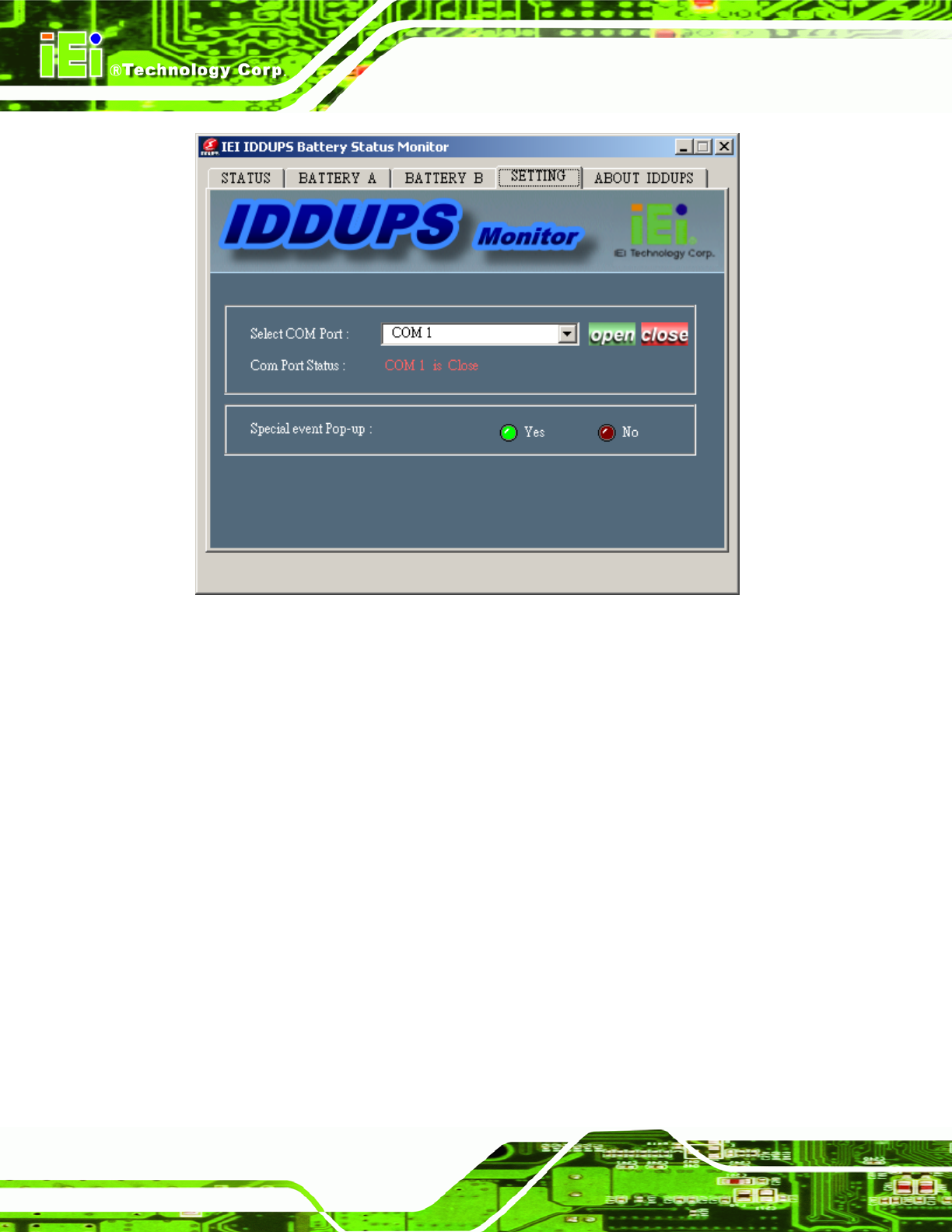

Figure 5-10: Application Setting
When the IDDUPS Battery Status Monitor application starts up, the user need to click the
SETTING tab to select the connected COM port of the SBC and activate the COM port by
clicking the open button. Please refer to Section
193H5.2.1 for step-by-step description.
182H182H194HFigure 5-11 shows the COM 2 is open by the user for connecting the PM-P006UPS to the
SBC.
