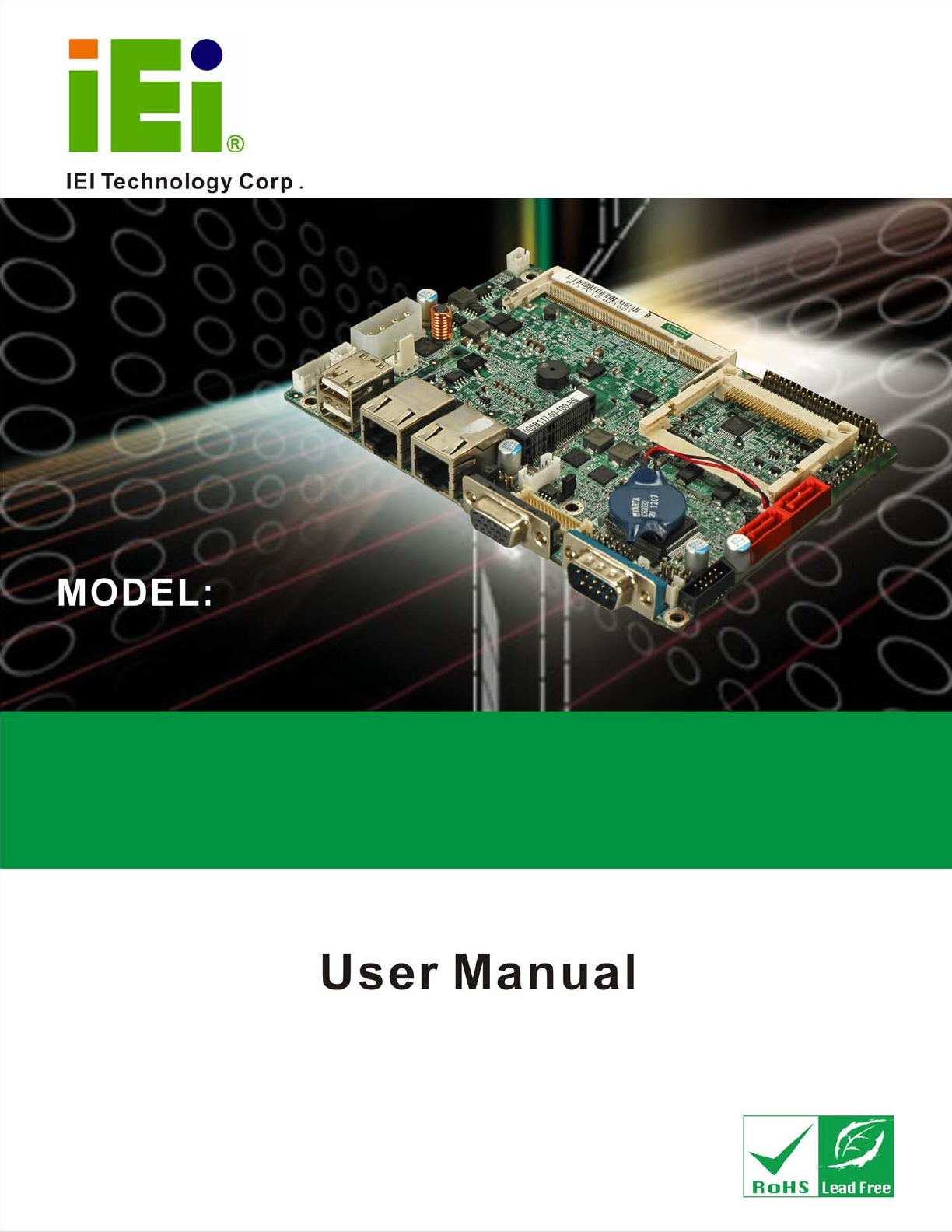

WAFER-945GSE 3.5” Motherboard WAFER-945GSE 3.5” Motherboard , WAFER-945GSE 3.5" SBC with Intel® Atom™ Processor with support for VGA and LVDS Displays, Dual PCIe GbE, CF Type II, and SATA Page i Rev. 1.
WAFER-945GSE 3.5” Motherboard Revision Date Version Changes 12 August, 2011 1.04 Modified SATA connector description. 15 June, 2009 1.03 Modified LVDS connector description in Section 4.3.10 12 March, 2009 1.02 Changed model name 8 January, 2009 1.01 Added a warning for using heat sink enclosure on page 92 4 November, 2008 1.
WAFER-945GSE 3.5” Motherboard Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
WAFER-945GSE 3.5” Motherboard Manual Conventions WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning” is written as “WARNING,” both capitalized and bold and is followed by text. The text is the warning message. A warning message is shown below: WARNING: This is an example of a warning message.
WAFER-945GSE 3.5” Motherboard NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes. Notes are easy to recognize. The word “note” is written as “NOTE,” both capitalized and bold and is followed by text. The text is the cautionary message. A note message is shown below: NOTE: This is an example of a note message. Notes should always be read.
WAFER-945GSE 3.5” Motherboard Packing List NOTE: If any of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the WAFER-945GSE from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. 0H The items listed below should all be included in the WAFER-945GSE package.
WAFER-945GSE 3.5” Motherboard Table of Contents 1 INTRODUCTION...................................................................................................... 1 1H 398H 1.1 OVERVIEW.................................................................................................................. 2 1.1.1 WAFER-945GSE Introduction ........................................................................... 2 1.2 WAFER-945GSE OVERVIEW ...................................................................
WAFER-945GSE 3.5” Motherboard 2.5.6 Intel® ICH7-M SATA Controller ...................................................................... 23 2.5.7 Intel® ICH7-M USB Controller........................................................................ 24 2.6 LPC BUS COMPONENTS ........................................................................................... 25 2.6.1 LPC Bus Overview........................................................................................... 25 2.6.2 BIOS Chipset.........
WAFER-945GSE 3.5” Motherboard 4.3.4 Backlight Inverter Connector .......................................................................... 41 4.3.5 CompactFlash® Socket.................................................................................... 42 4.3.6 Digital Input/Output (DIO) Connector............................................................ 43 4.3.7 Fan Connector (+12V, 3-pin) .......................................................................... 44 4.3.8 Keyboard/Mouse Connector ......
WAFER-945GSE 3.5” Motherboard 5.5.6 LVDS Voltage Selection.................................................................................... 76 5.6 CHASSIS INSTALLATION ............................................................................................ 77 5.6.1 Airflow.............................................................................................................. 77 5.6.2 Motherboard Installation................................................................................. 78 5.
WAFER-945GSE 3.5” Motherboard 6.3.5.1 ACPI configuration ..................................................................................116 6.3.5.2 APM Configuration..................................................................................117 6.3.6 Remote Configuration .................................................................................... 120 6.3.7 USB Configuration......................................................................................... 124 6.4 PCI/PNP..............
WAFER-945GSE 3.5” Motherboard E.3 MEMORY ADDRESS MAP ...................................................................................... 179 164H F 561H HAZARDOUS MATERIALS DISCLOSURE ...................................................... 180 165H 562H F.1 HAZARDOUS MATERIAL DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ................................................
WAFER-945GSE 3.5” Motherboard List of Figures Figure 1-1: WAFER-945GSE.........................................................................................2 167H 564H Figure 1-2: WAFER-945GSE Overview [Front View]..................................................3 168H 56H Figure 2-1: WAFER-945GSE Dimensions (mm) .........................................................9 169H 56H Figure 2-2: External Interface Panel Dimensions (mm).............................................
WAFER-945GSE 3.5” Motherboard Figure 4-12: PCIe Mini Card Slot Location ...............................................................49 195H 592H Figure 4-13: Power Button Connector Location ......................................................51 196H 593H Figure 4-14: Reset Button Connector Locations .....................................................52 197H 594H Figure 4-15: SATA Drive Connector Locations........................................................
WAFER-945GSE 3.5” Motherboard Figure 5-22: VGA Connector ......................................................................................91 27H 624H Figure 5-23: Heat Sink Retention Screws .................................................................93 28H 625H Figure 7-1: Start Up Screen..................................................................................... 143 29H 62H Figure 7-2: Select Operating System .....................................................................
WAFER-945GSE 3.5” Motherboard List of Tables Table 1-1: Technical Specifications ............................................................................6 25H 652H Table 2-1: Power Consumption .................................................................................30 256H 653H Table 4-1: Peripheral Interface Connectors..............................................................37 257H 654H Table 4-2: Rear Panel Connectors.................................................................
WAFER-945GSE 3.5” Motherboard Table 5-3: CF Card Setup Jumper Settings ..............................................................71 283H 680H Table 5-4: Clear CMOS Jumper Settings ..................................................................73 284H 681H Table 5-5: COM 2 Function Select Jumper Settings................................................74 285H 682H Table 5-6: LVDS Panel Resolution Jumper Settings ...............................................
WAFER-945GSE 3.5” Motherboard List of BIOS Menus Menu 1: Main................................................................................................................97 290H 687H Menu 2: Advanced.......................................................................................................99 291H 68H Menu 3: CPU Configuration .................................................................................... 100 29H 689H Menu 4: IDE Configuration ......................................
WAFER-945GSE 3.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 1.1 Overview Figure 1-1: WAFER-945GSE 1.1.1 WAFER-945GSE Introduction The WAFER-945GSE 3.5” motherboards are embedded 45 nm Intel® Atom™ processor platforms. The Intel® Atom™ processor N270 embedded on the WAFER-945GSE has a 1.60 GHz clock speed, a 533 MHz FSB and a 512 KB L2 cache. The WAFER-945GSE also supports one 200-pin 533 MHz 2.0 GB (max.) DDR2 SDRAM SO-DIMM. The board comes with an LVDS connector and supports both 18-bit and 36-bit single channel LVDS screens.
WAFER-945GSE 3.5” Motherboard Figure 1-2: WAFER-945GSE Overview [Front View] 1.2.
WAFER-945GSE 3.5” Motherboard 1 x Power button connector 1 x Reset button connector 1 x 4-port RS-232 serial port connector 1 x RS-232/422/485 serial port connector 2 x Serial ATA (SATA) drive connectors 2 x USB 2.0 connectors (supports four USB 2.0 devices) The WAFER-945GSE has the following external peripheral interface connectors on the board rear panel.
WAFER-945GSE 3.5” Motherboard Northbridge: Intel® 945GSE System Chipset Southbridge: Intel® ICH7-M One 200-pin SO-DIMM socket supports one 400 MHz or Memory 533 MHz 2.0 GB (max.) DDR2 SDRAM SO-DIMM CompactFlash® One CompactFlash® Type II socket Super I/O ITE IT8718 Intel® Generation 3.
WAFER-945GSE 3.5” Motherboard 5.0 V only Power Supply 12 V for LCD/System Fan AT and ATX support Power Consumption 5V @ 2.94 A (1.6 GHz Intel® Atom™ with one 1.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 2.1 Dimensions 2.1.
WAFER-945GSE 3.5” Motherboard Figure 2-1: WAFER-945GSE Dimensions (mm) 2.1.2 External Interface Panel Dimensions External peripheral interface connector panel dimensions are shown in Figure 2-2. 748H10 Figure 2-2: External Interface Panel Dimensions (mm) 2.2 Data Flow Figure 2-3 shows the data flow between the two on-board chipsets and other components 749H1 installed on the motherboard and described in the following sections of this chapter.
WAFER-945GSE 3.5” Motherboard Figure 2-3: Data Flow Block Diagram 2.3 Embedded WAFER-945GSE Processor 2.3.1 Overview The WAFER-945GSE comes with an embedded 45 nm 1.60 GHz Intel® Atom™ processor N270. The processor supports a 533 MHz FSB and has a 1.
WAFER-945GSE 3.5” Motherboard cache. The low power processor has a maximum power of 2.5 W. The processor is covered with a heat sink and is shown in Figure 2-4 below. 712H Figure 2-4: Embedded Processor 2.3.
WAFER-945GSE 3.5” Motherboard Thermal management support via Intel® Thermal Monitor 1 and Intel Thermal Monitor 2 FSB Lane Reversal for flexible routing Supports C0/C1(e)/C2(e)/C4(e) L2 Dynamic Cache Sizing Advanced power management features including Enhanced Intel SpeedStep® Technology Execute Disable Bit support for enhanced security 2.3.3 Front Side Bus (FSB) The Intel® Atom™ processor on the WAFER-945GSE is interfaced to the Intel 945GSE Northbridge through a 533 MHz front side bus (FSB).
WAFER-945GSE 3.5” Motherboard 2.4 Intel 945GSE Northbridge Chipset 2.4.1 Intel® 945GSE Overview The Intel 945GSE Graphics and Memory Controller Hub (GMCH) supports the embedded Intel® Atom™ N270 processor. The Intel 945GSE is interfaced to the processor through a 533 MHz FSB. 2.4.2 Intel® 945GSE DDR2 Controller There is one 200-pin DDR2 SO-DIMM socket on the WAFER-945GSE.
WAFER-945GSE 3.5” Motherboard Figure 2-6: DDR2 SO-DIMM Socket 2.4.3 Intel® 945GSE Graphics The Intel® 945GSE supports CRT and LVDS. The internal graphics engine has the following features: Intel® Gen 3.5 Integrated Graphics Engine 250-MHz core render clock and 200 MHz core display clock at 1.05-V core voltage Supports TV-Out, LVDS, CRT and SDVO Dynamic Video Memory Technology (DVMT 3.0) Intel® Display Power Saving Technology 2.0 (Intel® DPST 2.
WAFER-945GSE 3.5” Motherboard 4x pixel rate HWMC Microsoft DirectX* 9.1 operating system Intermediate Z in Classic Rendering Internal Graphics Display Device States: D0, D1, D3 Graphics Display Adapter States: D0, D3. 2.4.3.1 Analog CRT Graphics Mode The analog CRT bus is interfaced to an external DB-15 interface connector. The connector is shown below.
WAFER-945GSE 3.5” Motherboard Support for CRT Hot Plug 2.4.3.2 LVDS Interface The LVDS interface is connected directly to one of the LVDS connectors on the board. Figure 2-8: LVDS Connector Some of the features of the LVDS interface include: Panel support up to UXGA (1600 x 1200) 25-MHz to 112-MHz single-/dual-channel; @18 bpp o TFT panel type supported Pixel Dithering for 18-bit TFT panel to emulate 24-bpp true color displays Panel Fitting. Panning, and Center Mode Supported CPIS 1.
WAFER-945GSE 3.5” Motherboard 2.5 Intel® ICH7-M Southbridge Chipset 2.5.1 Intel® ICH7-M Overview The Intel® ICH7-M southbridge chipset is connected to the Intel® 945GSE northbridge GMCH through the chip-to-chip Direct Media Interface (DMI). Figure 2-9: Direct Media Interface Some of the features of the Intel® ICH7-M are listed below. Complies with PCI Express Base Specification, Revision 1.0a Complies with PCI Local Bus Specification, Revision 2.
WAFER-945GSE 3.5” Motherboard o o Interrupt controller Timer functions Integrated SATA host controller with DMA operations interfaced to two SATA connectors on the WAFER-945GSE Integrated IDE controller supports Ultra ATA 100/66/33 Supports the four USB 2.0 devices on the WAFER-945GSE with four UHCI controllers and one EHCI controller Complies with System Management Bus (SMBus) Specification, Version 2.0 Supports Audio Codec ’97 (AC’97) Revision 2.
WAFER-945GSE 3.5” Motherboard Meets performance requirements for audio on PC99/2001 systems Meets Microsoft WHQL/WLP 2.0 audio requirements 16-bit Stereo full-duplex CODEC with 48KHz sampling rate Compliant with AC'97 Rev 2.3 specifications o o o o o Front-Out, Surround-Out, MIC-In and LINE-In Jack Sensing 14.318MHz -> 24.576MHz PLL to eliminate crystal 12.
WAFER-945GSE 3.5” Motherboard 2.5.3 Intel® ICH7-M Low Pin Count (LPC) Interface The ICH7-M LPC interface complies with the LPC 1.1 specifications. The LPC bus from the ICH6 is connected to the following components: BIOS chipset Super I/O chipset 2.5.4 Intel® ICH7-M PCIe Bus The Intel® ICH7-M southbridge chipset has four PCIe lanes. Two of the four PCIe lanes are interfaced to PCIe GbE controller. A third PCIe lane is interfaced to a PCIe mini socket. 2.5.4.
WAFER-945GSE 3.5” Motherboard Figure 2-11: Realtek RTL8111C PCIe GbE Controllers The Realtek RTL8111C PCIe GbE controllers combine a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, 32-bit PCIe bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, they offer high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable.
WAFER-945GSE 3.5” Motherboard Auto-Negotiation with Next Page capability Supports PCI Express™ 1.1 Supports pair swap/polarity/skew correction Crossover Detection & & Auto-Correction Wake-on-LAN and remote wake-up support Microsoft® NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send and Giant send) support Supports Full Duplex flow control (IEEE 802.3x) Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Supports IEEE 802.
WAFER-945GSE 3.5” Motherboard Figure 2-12: PCIe Mini Slot 2.5.5 Intel® ICH7-M Real Time Clock 256 bytes of battery backed RAM is provided by the Motorola MC146818A real time clock (RTC) integrated into the ICH6. The RTC operates on a 3V battery and 32.768KHz crystal. The RTC keeps track of the time and stores system data even when the system is turned off. 2.5.
WAFER-945GSE 3.5” Motherboard Figure 2-13: SATA Connectors SATA controller specifications are listed below. Supports two SATA drives Supports 3.0 Gb/s data transfer speeds Supports Serial ATA Specification, Revision 1.0a 2.5.7 Intel® ICH7-M USB Controller Up to six high-speed, full-speed or low-speed USB devices are supported by the ICH7-M on the WAFER-945GSE. High-speed USB 2.
WAFER-945GSE 3.5” Motherboard Figure 2-14: Onboard USB Implementation 2.6 LPC Bus Components 2.6.1 LPC Bus Overview The SIS964 LPC bus is connected to components listed below: BIOS chipset Super I/O chipset LPC Serial Port Chipset 2.6.2 BIOS Chipset The BIOS chipset has a licensed copy of AMI BIOS installed on the chipset.
WAFER-945GSE 3.5” Motherboard Console redirection function support PXE (Pre-boot Execution Environment) support USB booting support 2.6.3 iTE IT8718F Super I/O chipset The iTE IT8718F Super I/O chipset is connected to the ICH7-M southbridge through the LPC bus. Figure 2-15: Super I/O The iTE IT8718F is an LPC interface-based Super I/O device that comes with Environment Controller integration.
WAFER-945GSE 3.5” Motherboard Two 16C550 UARTs for serial port control One IEEE 1284 Parallel Port Keyboard Controller Watchdog Timer Some of the Super I/O features are described in more detail below: 2.6.3.1 Super I/O LPC Interface The LPC interface on the Super I/O complies with the Intel® Low Pin Count Specification Rev. 1.0. The LPC interface supports both LDRQ# and SERIRQ protocols as well as PCI PME# interfaces. 2.6.3.
WAFER-945GSE 3.5” Motherboard 2.6.3.5 Super I/O Fan Speed Controller The Super I/O fan speed controller enables the system to monitor the speed of the fan. One of the pins on the fan connector is reserved for fan speed detection and interfaced to the fan speed controller on the Super I/O. The fan speed is then reported in the BIOS. 2.6.3.6 Super I/O Keyboard/Mouse Controller The Super I/O keyboard/mouse controller can execute the 8042 instruction set.
WAFER-945GSE 3.5” Motherboard System temperature CPU temperature Eight voltage inputs on the WAFER-945GSE Super I/O Enhanced Hardware Monitor monitor the following voltages: CPU Core +1.05V +3.3V +12V +1.5V +1.8V +5VSB VBAT The WAFER-945GSE Super I/O Enhanced Hardware Monitor also monitors the following fan speeds: CPU Fan speed The values for the above environmental parameters are all recorded in the BIOS Hardware Health Configuration menu. 2.7.
WAFER-945GSE 3.5” Motherboard 2.7.3 Power Consumption Table 2-1 shows the power consumption parameters for the WAFER-945GSE running 762H0 with a 1.6 GHz Intel® Atom™ with 1.0 GB DDR2 memory. Voltage Current +5V 2.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 3.1 Anti-static Precautions WARNING! Failure to take ESD precautions during the installation of the WAFER-945GSE may result in permanent damage to the WAFER-945GSE and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the WAFER-945GSE. Dry climates are especially susceptible to ESD.
WAFER-945GSE 3.5” Motherboard 3.3 Unpacking Checklist NOTE: If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the WAFER-945GSE was purchased from or contact an IEI sales representative directly by sending an email to sales@iei.com.tw. 326H1 3.3.
WAFER-945GSE 3.5” Motherboard 1 4 COM (wo bracket) (P/N: 32200-025401-RS) 1 Mini jumper pack (2.0mm) (P/N:33100-000033-RS) 1 Utility CD 1 Quick Installation Guide 3.3.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 4.1 Peripheral Interface Connectors Section 4.2 shows peripheral interface connector locations. Section 4.2 lists all the 765H23 76H24 peripheral interface connectors seen in Section 4.2. 76H25 4.1.1 WAFER-945GSEWAFER-945GSE Layout Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors 768H2 and on-board jumpers. Figure 4-1: Connector and Jumper Locations [Front Side] 4.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard Connector Type Label Ethernet connector RJ-45 LAN1 Ethernet connector RJ-45 LAN2 RS-232 serial port connector Male DB-9 COM1 Dual USB port USB port USB_C45 VGA port connector 15-pin female VGA1 Table 4-2: Rear Panel Connectors 4.3 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis.
WAFER-945GSE 3.5” Motherboard PIN NO. DESCRIPTION 1 +12V 2 GND 3 GND 4 +5V Table 4-3: ATX Power Connector Pinouts 4.3.2 ATX Power Supply Enable Connector CN Label: ATXCTL1 CN Type: 3-pin wafer (1x3) CN Location: See Figure 4-3 CN Pinouts: See Table 4-4 73H 734H The ATX power supply enable connector enables the WAFER-945GSE to be connected to an ATX power supply. In default mode, the WAFER-945GSE can only us an AT power supply.
WAFER-945GSE 3.5” Motherboard 3 PS-ON Table 4-4: ATX Power Supply Enable Connector Pinouts 4.3.3 Audio Connector (10-pin) CN Label: AUDIO1 CN Type: 10-pin header CN Location: See Figure 4-4 CN Pinouts: See Table 4-5 735H 736H The 10-pin audio connector is connected to external audio devices including speakers and microphones for the input and output of audio signals to and from the system. Figure 4-4: Audio Connector Pinouts (10-pin) PIN NO. DESCRIPTION PIN NO.
WAFER-945GSE 3.5” Motherboard 4.3.4 Backlight Inverter Connector CN Label: INVERTER1 CN Type: 5-pin wafer (1x5) CN Location: See Figure 4-5 CN Pinouts: See Table 4-6 73H 738H The backlight inverter connectors provide the backlights on the LCD display connected to the WAFER-945GSE with +12V of power. Figure 4-5: Panel Backlight Connector Pinout Locations PIN NO.
WAFER-945GSE 3.5” Motherboard 4.3.5 CompactFlash® Socket CN Label: CF1 CN Type: 50-pin header (2x25) CN Location: See Figure 4-6 CN Pinouts: See Table 4-7 739H 740H A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the WAFER-945GSE. Figure 4-6: CF Card Socket Location PIN NO. DESCRIPTION PIN NO.
WAFER-945GSE 3.5” Motherboard PIN NO. DESCRIPTION PIN NO.
WAFER-945GSE 3.5” Motherboard Figure 4-7: DIO Connector Connector Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION 1 GND 2 VCC 3 Output 3 4 Output 2 5 Output 1 6 Output 0 7 Input 3 8 Input 2 9 Input 1 10 Input 0 Table 4-8: DIO Connector Connector Pinouts 4.3.7 Fan Connector (+12V, 3-pin) CN Label: CPU_FAN1 CN Type: 3-pin header CN Location: See Figure 4-8 CN Pinouts: See Table 4-9 7H43 78H4 The cooling fan connector provides a 12V, 500mA current to the cooling fan.
WAFER-945GSE 3.5” Motherboard Figure 4-8: +12V Fan Connector Location PIN NO. DESCRIPTION 1 GND 2 +12V 3 Fan Speed Detect Table 4-9: +12V Fan Connector Pinouts 4.3.8 Keyboard/Mouse Connector CN Label: KB_MS1 CN Type: 6-pin header (1x6) CN Location: See Figure 4-9 CN Pinouts: See Table 4-10 745H 746H The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2 Y-cable to add keyboard and mouse functionality to the system.
WAFER-945GSE 3.5” Motherboard Figure 4-9: Keyboard/Mouse Connector Location PIN NO. DESCRIPTION 1 +5V KB DATA 2 MS DATA 3 MS CLK 4 KB DATA 5 KB CLK 6 GROUND Table 4-10: Keyboard/Mouse Connector Pinouts 4.3.
WAFER-945GSE 3.5” Motherboard Figure 4-10: LED Connector Locations PIN NO. DESCRIPTION 1 +5V 2 GND 3 Power LED+ 4 Power LED- 5 HDD LED+ 6 HDD LED- Table 4-11: LED Connector Pinouts 4.3.10 LVDS LCD Connector CN Label: LVDS1 CN Type: 30-pin crimp (2x10) CN Location: See Figure 4-11 CN Pinouts: See Table 4-12 789H4 790H5 The 30-pin LVDS LCD connector can be connected to single channel or dual channel, 18-bit or 36-bit LVDS panel.
WAFER-945GSE 3.5” Motherboard Figure 4-11: LVDS LCD Connector Pinout Locations PIN NO. DESCRIPTION PIN NO.
WAFER-945GSE 3.5” Motherboard 4.3.11 PCIe Mini Card Slot CN Label: CN4 CN Type: 52-pin Mini PCIe Card Slot CN Location: See Figure 4-12 CN Pinouts: See Table 4-13 791H5 752H The PCIe mini card slot enables a PCIe mini card expansion module to be connected to the board. Cards supported include among others wireless LAN (WLAN) cards. Figure 4-12: PCIe Mini Card Slot Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION 1 PCIE_WAKE# 2 VCC3 3 N/C 4 GND 5 N/C 6 1.
WAFER-945GSE 3.5” Motherboard 17 PCIRST# 18 GND 19 LPC 20 VCC3 21 GND 22 PCIRST# 23 PERN2 24 3VDual 25 PERP2 26 GND 27 GND 28 1.5V 29 GND 30 SMBCLK 31 PETN2 32 SMBDATA 33 PETP2 34 GND 35 GND 36 USBD- 37 N/C 38 USBD+ 39 N/C 40 GND 41 N/C 42 N/C 43 N/C 44 RF_LINK# 45 N/C 46 BLUELED# 47 N/C 48 1.
WAFER-945GSE 3.5” Motherboard 4.3.12 Power Button Connector CN Label: PWRBTN1 CN Type: 2-pin wafer (1x2) CN Location: See Figure 4-13 CN Pinouts: See Table 4-14 753H 754H The power button connector is connected to a power switch on the system chassis to enable users to turn the system on and off. Figure 4-13: Power Button Connector Location PIN NO. DESCRIPTION 1 Power Switch 2 GND Table 4-14: Power Button Connector Pinouts 4.3.
WAFER-945GSE 3.5” Motherboard The reset button connector is connected to a reset switch on the system chassis to enable users to reboot the system when the system is turned on. Figure 4-14: Reset Button Connector Locations PIN NO. DESCRIPTION 1 Reset Switch 2 GND Table 4-15: Reset Button Connector Pinouts 4.3.
WAFER-945GSE 3.5” Motherboard Figure 4-15: SATA Drive Connector Locations PIN NO. DESCRIPTION 1 GND 2 TX+ 3 TX- 4 GND 5 RX- 6 RX+ 7 GND Table 4-16: SATA Drive Connector Pinouts 4.3.15 Serial Port Connector (COM3, COM4, COM5 and COM6) CN Label: COM CN Type: 40-pin header (2x20) CN Location: See Figure 4-16 CN Pinouts: See Table 4-17 759H 760H The 40-pin serial port connector contains the following four serial ports: COM3, COM4, COM5 and COM6.
WAFER-945GSE 3.5” Motherboard COM3 is located on pin 1 to pin 10 COM4 is located on pin 11 to pin 20 COM5 is located on pin 21 to pin 30 COM6 is located on pin 31 to pin 40 Figure 4-16: COM3 to COM6 Connector Pinout Locations PIN NO. DESCRIPTION PIN NO.
WAFER-945GSE 3.5” Motherboard PIN NO. DESCRIPTION PIN NO. DESCRIPTION 25 TRANSMIT DATA (TXD5) 26 CLEAR TO SEND (CTS5) 27 DATA TERMINAL READY (DTR5) 28 RING INDICATOR (RI5) 29 GND 30 GND 31 DATA CARRIER DETECT (DCD6 32 DATA SET READY (DSR6) 33 RECEIVE DATA (RXD6) 34 REQUEST TO SEND (RTS6) 35 TRANSMIT DATA (TXD6 36 CLEAR TO SEND (CTS6) 37 DATA TERMINAL READY (DTR6 38 RING INDICATOR (RI6) 39 GND 40 GND Table 4-17: COM3 to COM6 Connector Pinouts 4.3.
WAFER-945GSE 3.5” Motherboard Figure 4-17: RS-232/422/485 Serial Port Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION 1 NDCD 2 NDSR2 3 NRX 4 NRTS2 5 NTX 6 NCTS2 7 NDTR 8 NRI2 9 GND 10 GND 11 TXD485+ 12 TXD485- 13 RXD485+ 14 RXD485- Table 4-18: RS-232/RS-485 Serial Port Connector Pinouts 4.3.
WAFER-945GSE 3.5” Motherboard Figure 4-18: USB Connector Pinout Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION 1 VCC 2 GND 3 DATA- 4 DATA+ 5 DATA+ 6 DATA- 7 GND 8 VCC Table 4-19: USB Port Connector Pinouts 4.4 External Peripheral Interface Connector Panel Figure 4-19 shows the WAFER-945GSE external peripheral interface connector (EPIC) 803H765 panel.
WAFER-945GSE 3.5” Motherboard Figure 4-19: WAFER-945GSE External Peripheral Interface Connector 4.4.1 LAN Connectors CN Label: LAN1 and LAN2 CN Type: RJ-45 CN Location: See Figure 4-19 CN Pinouts: See Table 4-20 80H76 809H76 The WAFER-945GSE is equipped with two built-in RJ-45 Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the connector indicating the status of LAN.
WAFER-945GSE 3.5” Motherboard Figure 4-20: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green LED indicates activity on the port and the yellow LED indicates the port is linked. See Table 4-21. 810H76 STATUS DESCRIPTION GREEN Activity STATUS YELLOW DESCRIPTION Linked Table 4-21: RJ-45 Ethernet Connector LEDs 4.4.
WAFER-945GSE 3.5” Motherboard PIN NO. DESCRIPTION PIN NO. DESCRIPTION 1 DCD 6 DSR 2 RX 7 RTS 3 TX 8 CTS 4 DTR 9 RI 5 GND Table 4-22: RS-232 Serial Port (COM 1) Pinouts Figure 4-21: COM1 Pinout Locations 4.4.3 USB Connectors CN Label: USB_C45 CN Type: Dual USB port CN Location: See Figure 4-19 CN Pinouts: See Table 4-23 814H72 815H73 The WAFER-945GSE has two external USB 2.0 ports. The ports connect to both USB 2.0 and USB 1.1 devices.
WAFER-945GSE 3.5” Motherboard PIN NO. DESCRIPTION PIN NO. DESCRIPTION 1 VCC (+5V) 5 VCC (+5V) 2 DATA4- 6 DATA5- 3 DATA4+ 7 DATA5+ 4 GND 8 GND Table 4-23: USB Port Pinouts 4.4.4 VGA Connector CN Label: VGA1 CN Type: 15-pin Female CN Location: See Figure 4-19 CN Pinouts: See Figure 4-22 and Table 4-24 816H74 817H5 81H76 The WAFER-945GSE has a single 15-pin female connector for connectivity to standard display devices.
WAFER-945GSE 3.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 5.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the WAFER-945GSE may result in permanent damage to the WAFER-945GSE and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the WAFER-945GSE. Dry climates are especially susceptible to ESD.
WAFER-945GSE 3.5” Motherboard 5.2 Installation Considerations NOTE: The following installation notices and installation considerations should be read and understood before the WAFER-945GSE is installed. All installation notices pertaining to the installation of the WAFER-945GSE should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the WAFER-945GSE and injury to the person installing the motherboard. 5.2.
WAFER-945GSE 3.5” Motherboard o When working with the WAFER-945GSE, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system. Before and during the installation of the WAFER-945GSE DO NOT: Remove any of the stickers on the PCB board. These stickers are required for warranty validation. Use the product before verifying all the cables and power connectors are properly connected.
WAFER-945GSE 3.5” Motherboard 5.3 Unpacking When the WAFER-945GSE is unpacked, please check all the unpacking list items listed in Chapter 3 are indeed present. If any of the unpacking list items are not available please contact the WAFER-945GSE vendor reseller/vendor where the WAFER-945GSE was purchased or contact an IEI sales representative. 5.4 SO-DIMM and CF Card Installation 5.4.1 SO-DIMM Installation WARNING: Using incorrectly specified SO-DIMM may cause permanently damage the WAFER-945GSE.
WAFER-945GSE 3.5” Motherboard Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a way that the notch in the middle of the SO-DIMM must be aligned with the plastic bridge in the socket. Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See Figure 5-1) 78H Step 4: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket out and push the rear of the SO-DIMM down. (See Figure 5-1) 79H Step 5: Secure the SO-DIMM.
WAFER-945GSE 3.5” Motherboard Figure 5-2: CF Card Installation 5.5 Jumper Settings NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To CLOSE/SHORT a jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper.
WAFER-945GSE 3.5” Motherboard Description Label Type AT Power Mode Setting ATXCTL1 2-pin header CF Card Setting JCF1 2-pin header Clear CMOS J_CMOS1 3-pin header COM2 Mode Setting JP1 6-pin header LVDS1 Panel Resolution J_LCD_TYPE1 8-pin header LVDS1 Voltage Select J_VLVDS1 3-pin header Table 5-1: Jumpers 5.5.1 AT Power Select Jumper Settings NOTE: The AT Power Select Jumper is the same as the ATX Enable connector.
WAFER-945GSE 3.5” Motherboard AT Power Select Description Short 2 – 3 Use AT power OFF Use ATX power Default Table 5-2: AT Power Select Jumper Settings The location of the AT Power Select jumper is shown in Figure 5-4 below. 785H Figure 5-4: AT Power Select Jumper Location 5.5.
WAFER-945GSE 3.5” Motherboard Figure 5-5: CF Card Setup Jumper Location 5.5.3 Clear CMOS Jumper Jumper Label: J_CMOS1 Jumper Type: 3-pin header Jumper Settings: See Table 5-4 Jumper Location: See Figure 5-6 830H79 831H79 If the WAFER-945GSE fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.
WAFER-945GSE 3.5” Motherboard AT Power Select Description Short 1 - 2 Keep CMOS Setup Short 2 - 3 Clear CMOS Setup Default Table 5-4: Clear CMOS Jumper Settings The location of the clear CMOS jumper is shown in Figure 5-6 below. 83H79 Figure 5-6: Clear CMOS Jumper 5.5.
WAFER-945GSE 3.5” Motherboard Short 5-6 RS-485 with RTS Short 7-8 control Table 5-5: COM 2 Function Select Jumper Settings The COM 2 Function Select jumper location is shown in Figure 5-7. 79H Figure 5-7: COM 2 Function Select Jumper Location 5.5.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 5.5.6 LVDS Voltage Selection WARNING: Permanent damage to the screen and WAFER-945GSE may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that cam with the monitor to select the correct voltage. Jumper Label: J_VLVDS1 Jumper Type: 3-pin header Jumper Settings: See Table 5-7 Jumper Location: See Figure 5-9 802H 803H The LVDS Voltage Selection jumpers allow the LVDS screen voltages to be set.
WAFER-945GSE 3.5” Motherboard Figure 5-9: LVDS Voltage Selection Jumper Pinout Locations 5.6 Chassis Installation 5.6.1 Airflow WARNING: Airflow is critical to the cooling of the CPU and other onboard components. The chassis in which the WAFER-945GSE must have air vents to allow cool air to move into the system and hot air to move out. The WAFER-945GSE must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface.
WAFER-945GSE 3.5” Motherboard NOTE: IEI has a wide range of backplanes available. Please contact your WAFER-945GSE vendor, reseller or an IEI sales representative at sales@iei.com.tw or visit the IEI website (http://www.ieiworld.com.tw) 327H1 328H1 to find out more about the available chassis. 5.6.2 Motherboard Installation To install the WAFER-945GSE motherboard into the chassis please refer to the reference material that came with the chassis. 5.7 Internal Peripheral Device Connections 5.7.
WAFER-945GSE 3.5” Motherboard 4-COM port kit 5.7.2 SATA Drive Connection The WAFER-945GSE is shipped with two SATA drive cables and one SATA drive power cable. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors. The locations of the SATA drive connectors are shown in Chapter 3. Step 2: Insert the cable connector. Press the clip on the connector at the end of the SATA cable and insert the cable connector into the onboard SATA drive connector.
WAFER-945GSE 3.5” Motherboard NOTE: The SATA power cable described below is an optional item and must be pre-ordered. The SATA power cable is not shipped with the system. Step 4: Connect the SATA power cable. Connect the SATA power connector to the back of the SATA drive. See Figure 5-11. 854H09 Figure 5-11: SATA Power Drive Connection 5.7.3 Serial Port Connector Cable (Four Ports) Cable Connection The WAFER-945GSE is shipped with one four serial port connector cable.
WAFER-945GSE 3.5” Motherboard the WAFER-945GSE 40-pin serial port connector. See Figure 5-16. 810H Step 3: Insert the cable connectors. Once the cable connector is properly aligned with the 40-pin serial port connector on the WAFER-945GSE, connect the cable connector to the on-board connectors. See Figure 5-16. 81H Figure 5-12: Four Serial Port Connector Cable Connection Step 4: Attach DB-9 serial port connectors to the chassis.
WAFER-945GSE 3.5” Motherboard Chapter 3. Step 2: Insert the cable connectors. Insert one connector into each serial port box headers. See Figure 5-13. A key on the front of the cable connectors ensures the connector can only be installed in one direction. Figure 5-13: Dual RS-232 Cable Installation Step 3: Secure the connectors. Both single RS-232 connectors have two retention screws that must be secured to a chassis or bracket. Step 4: Connect the serial device.
WAFER-945GSE 3.5” Motherboard Step 2: Insert the cable connector. Align the cable connector with the onboard connector. Make sure the pin 1on the cable connector is properly aligned with pin 1 on the board connector. Figure 5-14. 812H Step 3: Connect the adapter board to the cable. The adapter board with the four COM ports must then be attached to the cable. Make sure the cable connector is properly aligned with the connector on the adapter board.
WAFER-945GSE 3.5” Motherboard Figure 5-15: Serial Device Connector 5.7.6 Keyboard/Mouse Y-cable Connector The WAFER-945GSE is shipped with a keyboard/mouse Y-cable connector. The keyboard/mouse Y-cable connector connects to a keyboard/mouse connector on the WAFER-945GSE and branches into two cables that are each connected to a PS/2 connector, one for a mouse and one for a keyboard. To connect the keyboard/mouse Y-cable connector please follow the steps below. Step 1: Locate the connector.
WAFER-945GSE 3.5” Motherboard Figure 5-16: Keyboard/mouse Y-cable Connection Step 4: Attach PS/2 connectors to the chassis. The keyboard/mouse Y-cable connector is connected to two PS/2 connectors. To secure the PS/2 connectors to the chassis please refer to the installation instructions that came with the chassis. Step 5: Connect the keyboard and mouse. Once the PS/2 connectors are connected to the chassis, a keyboard and mouse can each be connected to one of the PS/2 connectors.
WAFER-945GSE 3.5” Motherboard In, connects to a microphone. The remaining two audio jacks, Line-In and Line-Out, connect to two speakers. To install the audio kit, please refer to the steps below: Step 1: Locate the audio connector. The location of the 10-pin audio connector is shown in Chapter 3. Step 2: Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit connector. Pin 1 on the audio kit connector is indicated with a white dot. See Figure 5-17.
WAFER-945GSE 3.5” Motherboard Chapter 3. WARNING: If the USB pins are not properly aligned, the USB device can burn out. Step 2: Align the connectors. The cable has two connectors. Correctly align pin 1on each cable connector with pin 1 on the WAFER-945GSE USB connector. Step 3: Insert the cable connectors. Once the cable connectors are properly aligned with the USB connectors on the WAFER-945GSE, connect the cable connectors to the on-board connectors. See Figure 5-18.
WAFER-945GSE 3.5” Motherboard RJ-45 Ethernet cable connectors Serial port devices USB devices VGA monitors To install these devices, connect the corresponding cable connector from the actual device to the corresponding WAFER-945GSE external peripheral interface connector making sure the pins are properly aligned. 5.8.1 LAN Connection (Single Connector) There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection to an external network.
WAFER-945GSE 3.5” Motherboard Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 5.8.2 Serial Device Connection The WAFER-945GSE has a single female DB-9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the WAFER-945GSE. Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in Chapter 3.
WAFER-945GSE 3.5” Motherboard 5.8.3 USB Connection (Dual Connector) The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the WAFER-945GSE. Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB Series "A" receptacle connectors are shown in Chapter 3. Step 2: Insert a USB Series "A" plug.
WAFER-945GSE 3.5” Motherboard 5.8.4 VGA Monitor Connection The WAFER-945GSE has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the WAFER-945GSE, please follow the instructions below. Step 1: Locate the female DB-15 connector. The location of the female DB-15 connector is shown in Chapter 3. Step 2: Align the VGA connector.
WAFER-945GSE 3.5” Motherboard 5.9 Heat Sink Enclosure WARNING: Never run the WAFER-945GSE without the heat sink secured to the board. The heat sink ensures the system remains cool and does not need addition heat sinks to cool the system. WARNING: When running the WAFER-945GSE, do not put the WAFER-945GSE directly on a surface that can not dissipate system heat, especially the wooden or plastic desk.
WAFER-945GSE 3.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 6.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed. 6.1.1 Starting Setup The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways. 1. Press the DELETE key as soon as the system is turned on or 2.
WAFER-945GSE 3.5” Motherboard F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 /F3 key Change color from total 3 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 6-1: BIOS Navigation Keys 6.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press ESC or the F1 key again. 6.1.
WAFER-945GSE 3.5” Motherboard 6.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. 864H23 The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.
WAFER-945GSE 3.5” Motherboard o Count: The number of CPUs on the motherboard System Memory: Displays the auto-detected system memory. o Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year. 6.
WAFER-945GSE 3.5” Motherboard BIOS Menu 2: Advanced 6.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications 873H2 and configure the CPU.
WAFER-945GSE 3.5” Motherboard BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: 874H3 Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used Frequency: Lists the CPU processing speed FSB Speed: Lists the FSB speed Cache L1: Lists the CPU L1 cache size Cache L2: Lists the CPU L2 cache size 6.3.
WAFER-945GSE 3.5” Motherboard BIOS Menu 4: IDE Configuration ATA/IDE Configurations [Compatible] Use the ATA/IDE Configurations option to configure the ATA/IDE controller. Disabled Disables the on-board ATA/IDE controller. Compatible Configures the on-board ATA/IDE controller to be in compatible mode. In this mode, a SATA channel will replace one of the IDE channels. This mode supports up to 4 storage devices. Enhanced DEFAULT Configures the on-board ATA/IDE controller to be in Enhanced mode.
WAFER-945GSE 3.5” Motherboard Legacy IDE Channels [PATA Pri, SATA Sec] Only the SATA drives are enabled. SATA Only SATA Pri, PATA Sec DEFAULT The IDE drives are enabled on the Primary IDE channel. The SATA drives are enabled on the Secondary IDE channel. The IDE drives are enabled on the primary PATA Only and secondary IDE channels. SATA drives are disabled. IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices.
WAFER-945GSE 3.5” Motherboard BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows: Device: Lists the device type (e.g. hard disk, CD-ROM etc.) Type: Indicates the type of devices a user can manually select Vendor: Lists the device manufacturer Size: List the storage capacity of the device.
WAFER-945GSE 3.5” Motherboard interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt. PIO Mode: Indicates the PIO mode of the installed device. Async DMA: Indicates the highest Asynchronous DMA Mode that is supported. Ultra DMA: Indicates the highest Synchronous DMA Mode that is supported. S.M.A.R.T.: Indicates whether or not the Self-Monitoring Analysis and Reporting Technology protocol is supported. 32Bit Data Transfer: Enables 32-bit data transfer.
WAFER-945GSE 3.5” Motherboard LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB. BIOS is prevented from using the LBA mode control on Disabled the specified channel. Auto DEFAULT BIOS auto detects the LBA mode control on the specified channel.
WAFER-945GSE 3.5” Motherboard 0 PIO mode 0 selected with a maximum transfer rate of 3.3MBps 1 PIO mode 1 selected with a maximum transfer rate of 5.2MBps 2 PIO mode 2 selected with a maximum transfer rate of 8.3MBps 3 PIO mode 3 selected with a maximum transfer rate of 11.1MBps 4 PIO mode 4 selected with a maximum transfer rate of 16.6MBps (This setting generally works with all hard disk drives manufactured after 1999.
WAFER-945GSE 3.5” Motherboard Ultra DMA mode 0 selected with a maximum data transfer UDMA1 rate of 16.6MBps Ultra DMA mode 1 selected with a maximum data transfer UDMA1 rate of 25MBps Ultra DMA mode 2 selected with a maximum data transfer UDMA2 rate of 33.3MBps Ultra DMA mode 3 selected with a maximum data transfer UDMA3 rate of 44MBps (To use this mode, it is required that an 80-conductor ATA cable is used.) Ultra DMA mode 4 selected with a maximum data transfer UDMA4 rate of 66.
WAFER-945GSE 3.5” Motherboard Prevents the BIOS from using 32-bit data transfers. Disabled Enabled DEFAULT Allows BIOS to use 32-bit data transfers on supported hard disk drives. 6.3.3 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 6) to set or change the 87H3 configurations for the FDD controllers, parallel ports and serial ports. BIOS Menu 6: Super IO Configuration Serial Port1 Address [3F8/IRQ4] Use the Serial Port1 Address option to select the Serial Port 1 base address.
WAFER-945GSE 3.5” Motherboard address is IRQ4 Serial Port 1 I/O port address is 3E8 and the interrupt 3E8/IRQ4 address is IRQ4 Serial Port 1 I/O port address is 2E8 and the interrupt 2E8/IRQ3 address is IRQ3 Serial Port2 Address [2F8/IRQ3] Use the Serial Port2 Address option to select the Serial Port 2 base address.
WAFER-945GSE 3.5” Motherboard Use the Serial Port3 IRQ option to select the interrupt address for serial port 3. Serial port 3 IRQ address is 10 10 11 DEFAULT Serial port 3 IRQ address is 11 Serial Port4 Address [2E8] Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
WAFER-945GSE 3.5” Motherboard 2F0 DEFAULT Serial port 5 I/O port address is 2F0 Serial port 5 I/O port address is 2E0 2E0 Serial Port5 IRQ [11] Use the Serial Port3 IRQ option to select the interrupt address for serial port 5. Serial port 5 IRQ address is 10 10 11 DEFAULT Serial port 5 IRQ address is 11 Serial Port6 Address [2E0] Use the Serial Port4 IRQ option to select the interrupt address for serial port 6.
WAFER-945GSE 3.5” Motherboard BIOS Menu 7: Hardware Health Configuration CPU FAN Mode Setting [Full On Mode] Use the CPU FAN Mode Setting option to configure the second fan. Full On Mode DEFAULT Automatic mode Fan is on all the time Fan is off when the temperature is low enough. Parameters must be set by the user. PWM Manual mode Pulse width modulation set manually When the CPU FAN Mode Setting option is in the Automatic Mode, the following parameters can be set. CPU Temp. Limit of OFF CPU Temp.
WAFER-945GSE 3.5” Motherboard CPU Fan Start PWM Slope PWM 1 When the CPU FAN Mode Setting option is in the PWM Manual Mode, the following parameters can be set. CPU Fan PWM control CPU Temp. Limit of OFF [000] WARNING: Setting this value too high may cause the fan to stop when the CPU is at a high temperature and therefore cause the system to be damaged. The CPU Temp. Limit of OFF option can only be set if the CPU FAN Mode Setting option is set to Automatic Mode. Use the CPU Temp.
WAFER-945GSE 3.5” Motherboard The CPU Temp. Limit of Start option can only be set if the CPU FAN Mode Setting option is set to Automatic Mode. Use the CPU Temp. Limit of Start option to select the CPU temperature at which the cooling fan should automatically turn on. When the fan starts, it rotates using the starting pulse width modulation (PWM) specified in the Fan 3 Start PWM option below. To select a value, select the CPU Temp. Limit of Start option and enter a decimal number between 000 and 127.
WAFER-945GSE 3.5” Motherboard 16 PWM 32 PWM 64 PWM The following system parameters and values are shown. The system parameters that are monitored are: System Temperatures: The following system temperatures are monitored o o CPU Temperature System Temperature Fan Speeds: The CPU cooling fan speed is monitored. o CPU Fan Speed Voltages: The following system voltages are monitored o o o o o o o o CPU Core +1.05V +3.30V +12.0 V +1.5V +1.8V 5VSB VBAT 6.3.
WAFER-945GSE 3.5” Motherboard BIOS Menu 8: Power Configuration 6.3.5.1 ACPI configuration The ACPI Configuration menu (BIOS Menu 9) configures the Advanced Configuration 80H4 and Power Interface (ACPI).
WAFER-945GSE 3.5” Motherboard BIOS Menu 9: ACPI Configuration Suspend Mode [S1(POS)] Use the Suspend Mode BIOS option to specify the sleep state the system enters when it is not being used. S1 (POS) DEFAULT System appears off. The CPU is stopped; RAM is refreshed; the system is running in a low power mode. S3 (STR) System appears off. The CPU has no power; RAM is in slow refresh; the power supply is in a reduced power mode. 6.3.5.
WAFER-945GSE 3.5” Motherboard BIOS Menu 10:Advanced Power Management Configuration Restore on AC Power Loss [Last State] Use the Restore on AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system. Power Off The system remains turned off Power On The system turns on Last State The system returns to its previous state. If it was on, it DEFAULT turns itself on. If it was off, it remains off.
WAFER-945GSE 3.5” Motherboard turned on or off When the power button is pressed the system goes into Suspend suspend mode Resume on Keyboard/Mouse [Disabled] Use the Resume on Keyboard/Mouse BIOS option to enable activity on either the keyboard or mouse to rouse the system from a suspend or standby state. That is, the system is roused when the mouse is moved or a button on the keyboard is pressed.
WAFER-945GSE 3.5” Motherboard activity Resume On RTC Alarm [Disabled] Use the Resume On RTC Alarm option to specify the time the system should be roused from a suspended state. Disabled DEFAULT The real time clock (RTC) cannot generate a wake event Enabled If selected, the following appears with values that can be selected: RTC Alarm Date (Days) System Time After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 6.3.
WAFER-945GSE 3.5” Motherboard BIOS Menu 11: Remote Access Configuration [Advanced] Remote Access [Disabled] Use the Remote Access option to enable or disable access to the remote functionalities of the system. Disabled Enabled DEFAULT Remote access is disabled.
WAFER-945GSE 3.5” Motherboard Terminal Type VT-UTF8 Combo Key Support These configuration options are discussed below. Serial Port Number [COM1] Use the Serial Port Number option allows to select the serial port used for remote access. COM1 DEFAULT System is remotely accessed through COM1 System is remotely accessed through COM2 COM2 NOTE: Make sure the selected COM port is enabled through the Super I/O configuration menu.
WAFER-945GSE 3.5” Motherboard Flow Control [None] Use the Flow Control option to report the flow control method for the console redirection application. None DEFAULT No control flow, Hardware Hardware is set as the console redirection Software Software is set as the console redirection Redirection After BIOS POST [Always] Use the Redirection After BIOS POST option to specify when console redirection should occur.
WAFER-945GSE 3.5” Motherboard The VT100 Terminal Definition is the standard convention used to configure and conduct emergency management tasks with UNIX-based servers. VT100 does not support all keys on the standard PC 101-key layout, however. The VT-UTF8 convention makes available additional keys that are not provided by VT100 for the PC 101 keyboard. Disabled Disables the VT-UTF8 terminal keys DEFAULT Enables the VT-UTF8 combination key.
WAFER-945GSE 3.5” Motherboard BIOS Menu 12: USB Configuration USB Functions [Enabled] Use the USB Function option to enable or disable the USB controllers. USB controllers are enabled Disabled Enabled DEFAULT USB controllers are disabled USB 2.0 Controller [Enabled] The USB 2.0 Controller BIOS option enables or disables the USB 2.0 controller USB function disabled Disabled Enabled DEFAULT USB function enabled USB2.
WAFER-945GSE 3.5” Motherboard The USB2.0 Controller Mode BIOS option sets the speed of the USB2.0 controller. The controller is capable of operating at full speed FullSpeed 12 Mb/s HiSpeed DEFAULT The controller is capable of operating at high speed 480 Mb/s Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.
WAFER-945GSE 3.5” Motherboard BIOS Menu 13: PCI/PnP Configuration IRQ# [Available] Use the IRQ# address to specify what IRQs can be assigned to a particular peripheral device.
WAFER-945GSE 3.5” Motherboard IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device.
WAFER-945GSE 3.5” Motherboard 54KB reserved for legacy ISA devices 64K 6.5 Boot Use the Boot menu (BIOS Menu 14) to configure system boot options. 85H4 BIOS Menu 14: Boot 6.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 14) to configure advanced system 86H4 boot options.
WAFER-945GSE 3.5” Motherboard BIOS Menu 15: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Enabled DEFAULT Some POST procedures are skipped to decrease the system boot time Quiet Boot [Disabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.
WAFER-945GSE 3.5” Motherboard The AddOn ROM Display Mode option allows add-on ROM (read-only memory) messages to be displayed. Force BIOS DEFAULT Allows the computer system to force a third party BIOS to display during system boot. Allows the computer system to display the Keep Current information during system boot. Bootup Num-Lock [Off] The Bootup Num-Lock BIOS option allows the Number Lock setting to be modified during boot up. Off DEFAULT Does not enable the keyboard Number Lock automatically.
WAFER-945GSE 3.5” Motherboard Enabled DEFAULT Can be booted from a remote system through the LAN 6.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 16) to specify the boot sequence from 87H4 the available devices.
WAFER-945GSE 3.5” Motherboard 6.6 Security Use the Security menu (BIOS Menu 17) to set system and user passwords. 8H4 BIOS Menu 17: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password.
WAFER-945GSE 3.5” Motherboard password. After the password has been added, Install appears next to Change User Password. 6.7 Chipset Use the Chipset menu (BIOS Menu 18) to access the NorthBridge and SouthBridge 89H4 configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.
WAFER-945GSE 3.5” Motherboard 6.7.1 North Bridge Chipset Configuration Use the North Bridge Chipset Configuration menu (BIOS Menu 18) to configure the 890H5 Northbridge chipset settings. BIOS Menu 19:North Bridge Chipset Configuration Memory Hole [Disabled] The Memory Hole reserves the memory space between 15MB and 16MB for ISA expansion cards that require a specified area of memory to work properly.
WAFER-945GSE 3.5” Motherboard Internal Graphics Mode Select [Enable, 8MB] The Internal Graphic Mode Select option determines the amount of system memory that can be used by the Internal graphics device. Disable 1MB of memory used by internal graphics device Enable, 1MB Enable, 8MB DEFAULT 8MB of memory used by internal graphics device DVMT Mode Select [DVMT Mode] Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology (DVMT) operating mode.
WAFER-945GSE 3.5” Motherboard Maximum DVMT Boot Display Device [Auto] The Boot Display Device BIOS option selects the display device the system uses when it boots. The available options are listed below: Auto DEFAULT CRT LFP LVDS1 Panel Type Use the LVDS Panel Type to determine the LCD panel resolution. Configuration options are listed below: 640 x 480 18b 800 x 480 18b 800 x 600 18b 1024 x 768 18b 1280 x 1024 36b 1400 x 1050 36b 1440 x 900 36b 1600 x 1200 36b by H/W 6.7.
WAFER-945GSE 3.5” Motherboard BIOS Menu 20:SouthBridge Chipset Configuration Audio Controller [All Disabled] The Audio Controller option enables or disables the audio controller. The on-board AC’97 audio controller is enabled. AC’97 Audio Only All Disabled DEFAULT The on-board audio controller is disabled. 6.8 Exit Use the Exit menu (BIOS Menu 21) to load default BIOS values, optimal failsafe values 893H52 and to save configuration changes.
WAFER-945GSE 3.5” Motherboard BIOS Menu 21:Exit Save Changes and Exit Use the Save Changes and Exit option to save the changes made to the BIOS options and to exit the BIOS configuration setup program. Discard Changes and Exit Use the Discard Changes and Exit option to exit the BIOS configuration setup program without saving the changes made to the system. Discard Changes Use the Discard Changes option to discard the changes and remain in the BIOS configuration setup program.
WAFER-945GSE 3.5” Motherboard Load Optimal Defaults Use the Load Optimal Defaults option to load the optimal default values for each of the parameters on the Setup menus. F9 key can be used for this operation. Load Failsafe Defaults Use the Load Failsafe Defaults option to load failsafe default values for each of the parameters on the Setup menus. F8 key can be used for this operation.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard 7.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates. The following drivers can be installed on the system: Chipset VGA LAN Audio Installation instructions are given below. 7.2 Starting the Driver Program To access the driver installation programs, please do the following.
WAFER-945GSE 3.5” Motherboard Figure 7-1: Start Up Screen Step 3: Click WAFER-945GSE. Step 4: The screen in appears. Figure 7-2: Select Operating System Step 5: Select the operating system installed on the WAFER-945GSE system.
WAFER-945GSE 3.5” Motherboard manual describes the installation for a Windows XP operating system. Step 6: The list of drivers in Figure 7-3 appears. 854H Figure 7-3: Drivers 7.3 Chipset Driver Installation To install the chipset driver, please do the following. Step 1: Access the driver list shown in Figure 7-3. (See Section 7.2) 85H 856H Step 2: Click “1-Chipset Driver” Step 3: The setup files are extracted as shown in Figure 7-4.
WAFER-945GSE 3.5” Motherboard Figure 7-4: Chipset Driver Screen Step 4: When the setup files are completely extracted the Welcome Screen in Figure 85H 7-5 appears. Figure 7-5: Chipset Driver Welcome Screen Step 5: Click Next to continue.
WAFER-945GSE 3.5” Motherboard Step 6: The license agreement in Figure 7-6 appears. 859H Step 7: Read the License Agreement. Step 8: Click the Yes icon to continue. Figure 7-6: Chipset Driver License Agreement Step 9: The Read Me file in Figure 7-7 appears. 860H Step 10: Click Next to continue.
WAFER-945GSE 3.5” Motherboard Figure 7-7: Chipset Driver Read Me File Step 11: Setup Operations are performed as shown in Figure 7-8.
WAFER-945GSE 3.5” Motherboard Figure 7-8: Chipset Driver Setup Operations Step 12: Once the Setup Operations are complete, click the Next icon to continue. Step 13: The Finish screen appears. Step 14: Select “Yes, I want to restart the computer now” and click the Finish icon. See Figure 7-9.
WAFER-945GSE 3.5” Motherboard Figure 7-9: Chipset Driver Installation Finish Screen 7.4 VGA Driver Installation To install the VGA driver, please do the following. Step 1: Access the driver list shown in Figure 7-3. (See Section 7.2) 863H 864H Step 2: Click “2-VGA” Step 3: The VGA Read Me file in Figure 7-10 appears. 865H Step 4: Click Next to continue.
WAFER-945GSE 3.5” Motherboard Figure 7-10: VGA Driver Read Me File Step 5: The installation files are extracted. See Figure 7-11. 86H Figure 7-11: VGA Driver Setup Files Extracted Step 6: The Welcome Screen in Figure 7-12 appears.
WAFER-945GSE 3.5” Motherboard Figure 7-12: VGA Driver Welcome Screen Step 7: Click Next to continue. Step 8: The license agreement in Figure 7-13 appears. 86H Step 9: Read the License Agreement. Step 10: Click the Yes icon to continue.
WAFER-945GSE 3.5” Motherboard Figure 7-13: VGA Driver License Agreement Step 11: The Read Me file in Figure 7-14 appears. 869H Step 12: Click Next to continue. Figure 7-14: VGA Driver Read Me File Step 13: Setup Operations are performed as shown in Figure 7-15.
WAFER-945GSE 3.5” Motherboard Figure 7-15: VGA Driver Setup Operations Step 14: Once the Setup Operations are complete, click the Next icon to continue. Step 15: The Finish screen appears. Step 16: Select “Yes, I want to restart the computer now” and click the Finish icon. See Figure 7-16.
WAFER-945GSE 3.5” Motherboard 7.5 LAN Driver Installation To install the chipset driver, please do the following. Step 1: Access the driver list shown in Figure 7-3. (See Section 7.2) 872H 873H Step 2: Click “3-LAN” Step 3: The Welcome screen in Figure 7-17 appears. 874H Figure 7-17: LAN Driver Welcome Screen Step 4: Click Next to continue. Step 5: The Ready to Install screen in Figure 7-18 appears. 875H Step 6: Click Next to proceed with the installation.
WAFER-945GSE 3.5” Motherboard Figure 7-18: LAN Driver Welcome Screen Step 7: The program begins to install. Step 8: The installation progress can be monitored in the progress bar shown in Figure 876H 7-19.
WAFER-945GSE 3.5” Motherboard Step 9: When the driver installation is complete, the screen in Figure 7-20 appears. 87H Figure 7-20: LAN Driver Installation Complete 7.6 Audio Driver Installation To install the chipset driver, please do the following. Step 1: Access the driver list shown in Figure 7-3. (See Section 7.2) 87H 879H Step 2: Click “4-Audio” Step 3: The screen in Figure 7-21 appears 80H WARNING: The WAFER-945GSE does not support HD Audio.
WAFER-945GSE 3.5” Motherboard Figure 7-21: Audio Driver Options Step 4: Select “2-AC’97” in Figure 7-21 81H Step 5: The installation files are extracted as shown in Figure 7-22. 82H Figure 7-22: AC’97 Driver Installation File Extraction Step 6: The AC’97 Driver Installation screen in Figure 7-23 appears.
WAFER-945GSE 3.5” Motherboard Step 7: Click Next to continue. Figure 7-23: AC’97 Driver Installation Welcome Screen Step 8: The Verification window in Figure 7-24 may appear. 84H Step 9: Click “Continue Anyway.
WAFER-945GSE 3.5” Motherboard Step 10: The driver installation begins. See Figure 7-25. 85H Figure 7-25: AC’97 Driver Installation Step 11: When the driver is installed, the driver installation finish screen in Figure 7-26 86H appears. Step 12: Select “Yes, I wish to restart my computer now” And click Finish Figure 7-26: AC’97 Driver Installation Complete Step 13: The system reboots.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard System Overview ................................................................................................97 314H 87H System Time [xx:xx:xx]......................................................................................98 315H 8H System Date [xx/xx/xx].......................................................................................98 316H 89H ATA/IDE Configurations [Compatible] ..........................................................
WAFER-945GSE 3.5” Motherboard Suspend Mode [S1(POS)] ............................................................................... 117 345H 918H Restore on AC Power Loss [Last State]........................................................ 118 346H 91H Power Button Mode [On/Off] .......................................................................... 118 347H 920H Resume on Keyboard/Mouse [Disabled]....................................................... 119 348H 921H Resume on Ring [Disabled]....
WAFER-945GSE 3.5” Motherboard Quiet Boot [Disabled]...................................................................................... 130 37H 950H AddOn ROM Display Mode [Force BIOS]...................................................... 130 378H 951H Bootup Num-Lock [Off]................................................................................... 131 379H 952H Boot From LAN Support [Disabled]...............................................................
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface. ATA The Advanced Technology Attachment (ATA) interface connects storage devices including hard disks and CD-ROM drives to a computer.
WAFER-945GSE 3.5” Motherboard computer is usually a male DE-9 connector. DAC The Digital-to-Analog Converter (DAC) converts digital signals to analog signals. DDR Double Data Rate refers to a data bus transferring data on both the rising and falling edges of the clock signal. DMA Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory.
WAFER-945GSE 3.5” Motherboard MAC The Media Access Control (MAC) protocol enables several terminals or network nodes to communicate in a LAN, or other multipoint networks. PCIe PCI Express (PCIe) is a communications bus that uses dual data lines for full-duplex (two-way) serial (point-to-point) communications between the SBC components and/or expansion cards and the SBC chipsets. Each line has a 2.5 Gbps data transmission rate and a 250 MBps sustained data transfer rate.
WAFER-945GSE 3.5” Motherboard asynchronous communications on the system and manages the system’s serial communication (COM) ports. UHCI The Universal Host Controller Interface (UHCI) specification is a register-level interface description for USB 1.1 Host Controllers. USB The Universal Serial Bus (USB) is an external bus standard for interfacing devices. USB 1.1 supports 12Mbps data transfer rates, while USB 2.0 supports 480Mbps data transfer rates.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard C.1 DIO Interface Introduction The DIO connector on the WAFER-945GSE is interfaced to GPIO ports on the ITE IT8718F Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices. Data can be read or written to the selected address to enable the DIO functions.
WAFER-945GSE 3.5” Motherboard C.3 Assembly Language Samples C.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. MOV AX, 6F08H Sets the digital port as input INT 15H Initiates the INT 15H BIOS call C.3.2 Enable the DIO Output Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O output functions is listed below.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash. This condition may have occurred by external EMI or a software bug.
WAFER-945GSE 3.5” Motherboard NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard E.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard E.
WAFER-945GSE 3.5” Motherboard E.
WAFER-945GSE 3.
WAFER-945GSE 3.5” Motherboard F.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
WAFER-945GSE 3.
WAFER-945GSE 3.
