WAFER-945GSE 3.5” Motherboard
Page 108
Disabled
Prevents the BIOS from using 32-bit data transfers.
Enabled DEFAULT
Allows BIOS to use 32-bit data transfers on supported
hard disk drives.
6.3.3 Super IO Configuration
Use the Super IO Configuration menu (878H837HBIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.

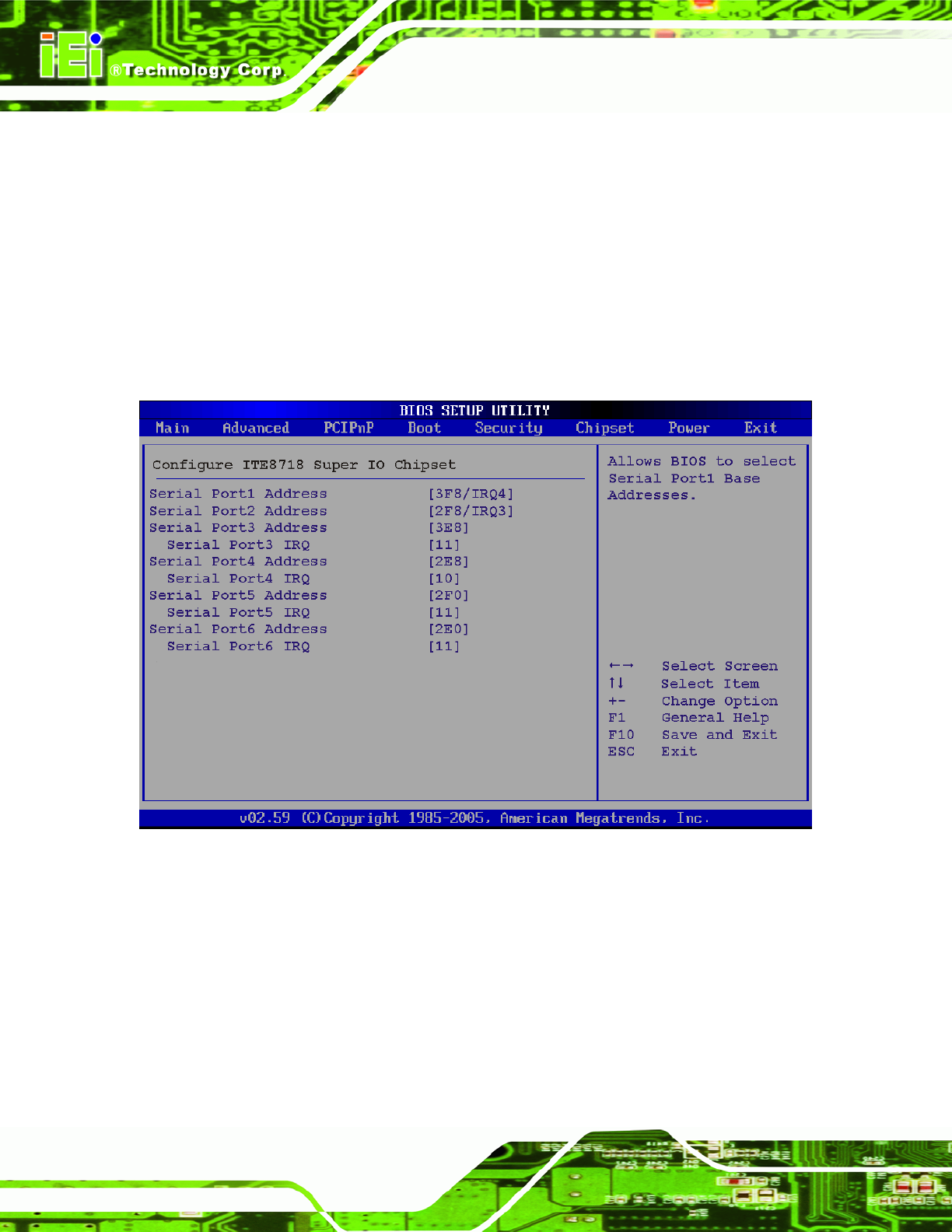

BIOS Menu 6: Super IO Configuration
Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Disabled
No base address is assigned to Serial Port 1
3F8/IRQ4 DEFAULT
Serial Port 1 I/O port address is 3F8 and the interrupt
