WAFER-945GSE 3.5” Motherboard
Page 132
Enabled DEFAULT
Can be booted from a remote system through the
LAN
6.5.2 Boot Device Priority
Use the Boot Device Priority menu (887H847HBIOS Menu 16) to specify the boot sequence from
the available devices. The following options are available:
1
st
Boot Device
2
nd
Boot Device
3
rd
Boot Device

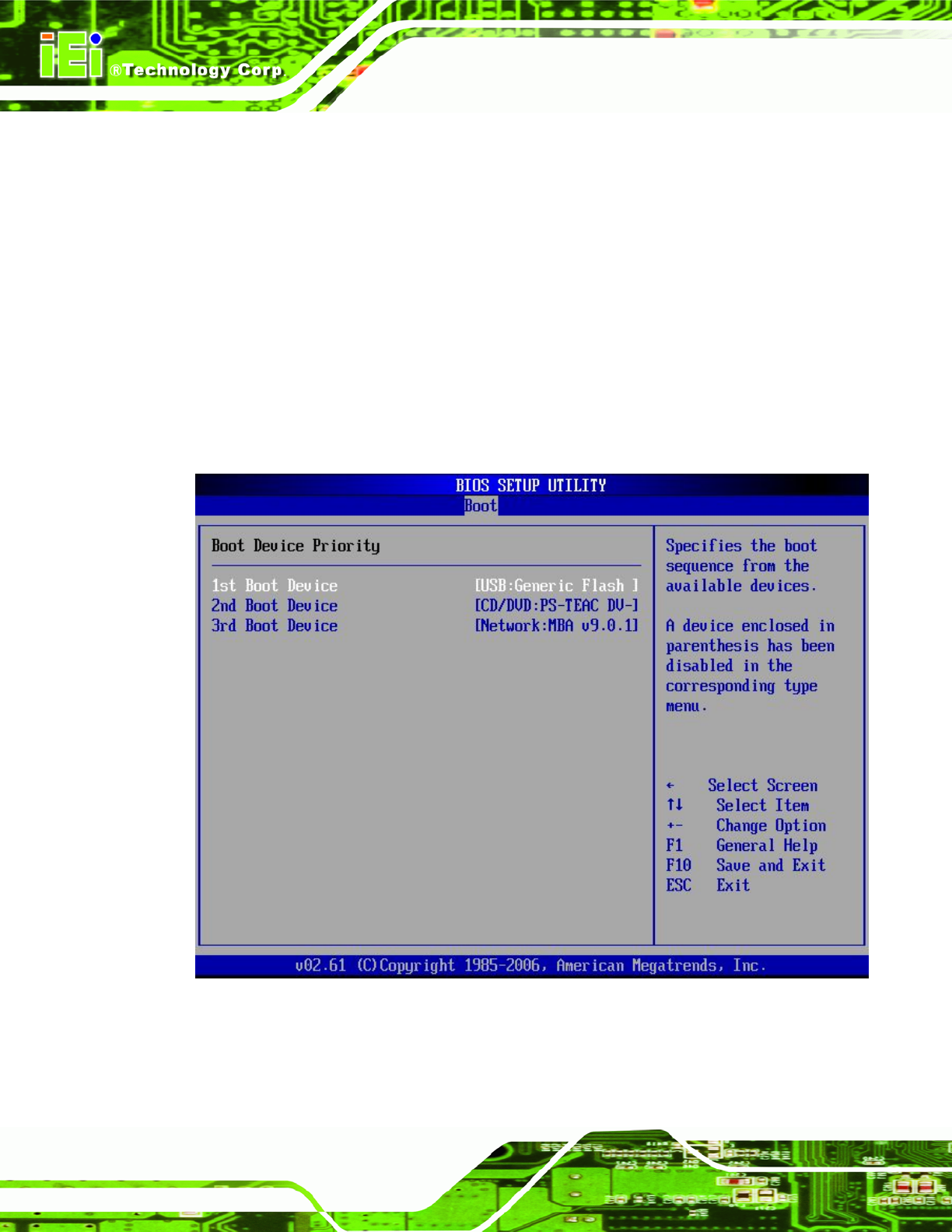

BIOS Menu 16: Boot Device Priority Settings
