WAFER-945GSE 3.5” Motherboard
Page 133
6.6 Security
Use the Security menu (888H848HBIOS Menu 17) to set system and user passwords.

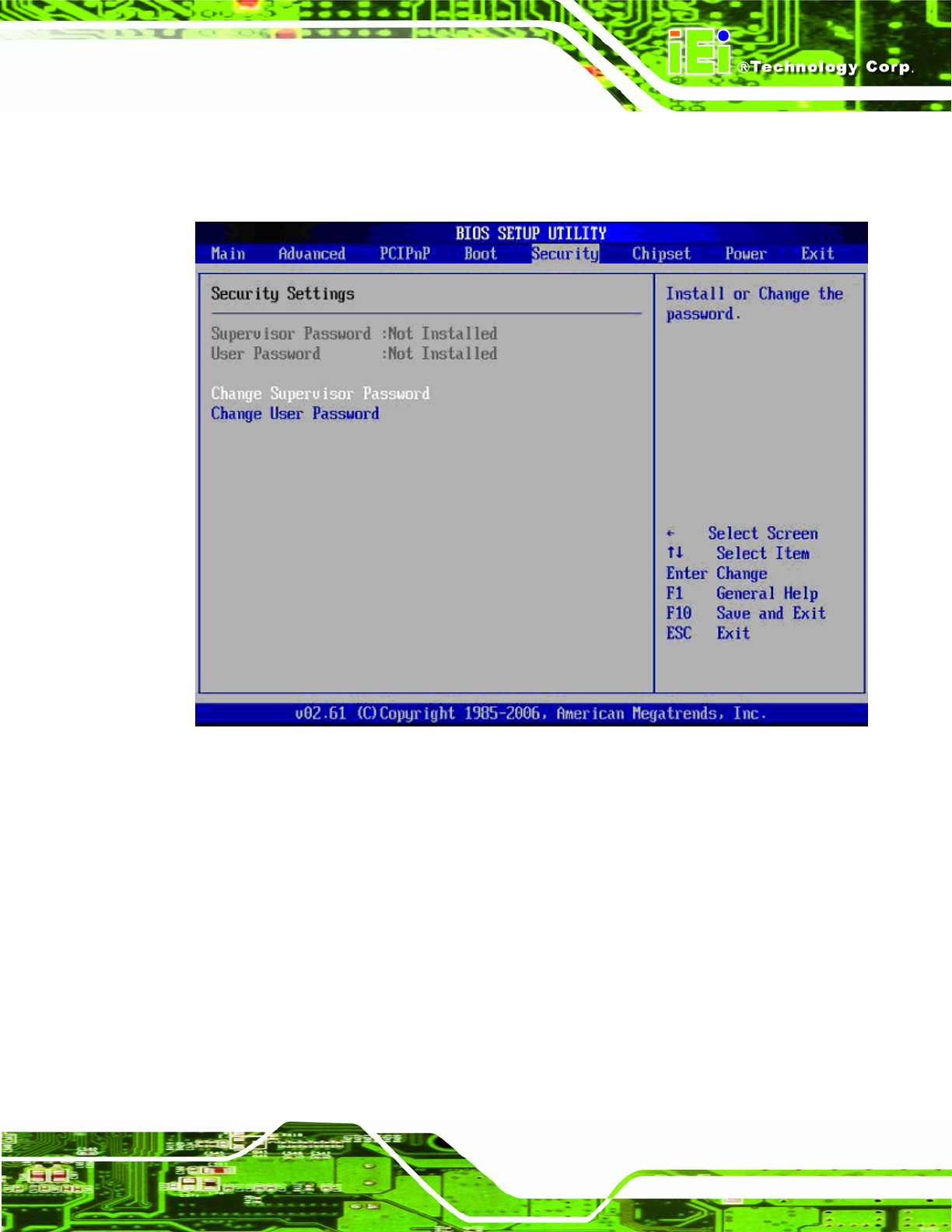

BIOS Menu 17: Security
Change Supervisor Password
Use the Change Supervisor Password to set or change a supervisor password. The
default for this option is Not Installed. If a supervisor password must be installed, select
this field and enter the password. After the password has been added, Install appears
next to Change Supervisor Password.
Change User Password
Use the Change User Password to set or change a user password. The default for this
option is Not Installed. If a user password must be installed, select this field and enter the
