WAFER-945GSE 3.5” Motherboard
Page 2
1.1 Overview

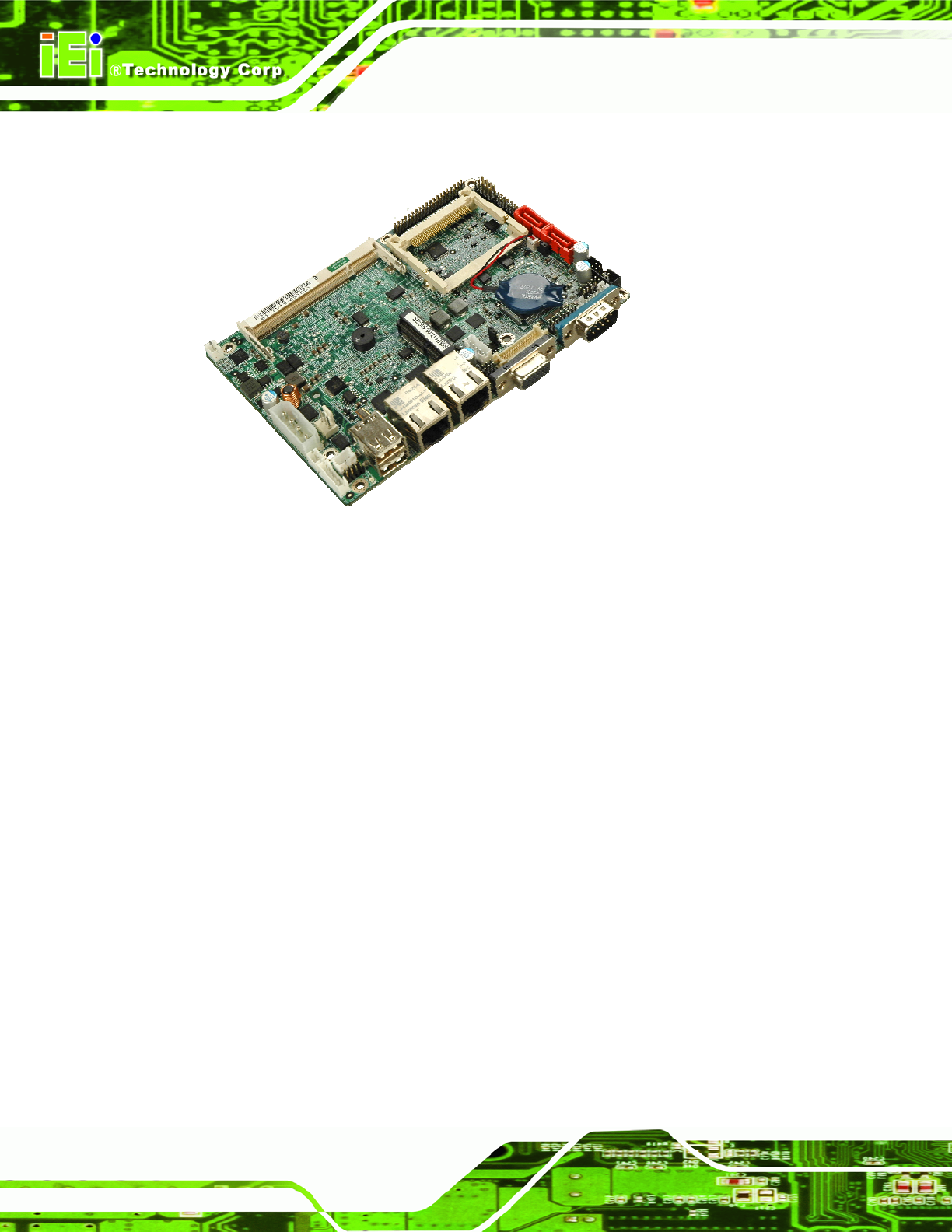

Figure 1-1: WAFER-945GSE
1.1.1 WAFER-945GSE Introduction
The WAFER-945GSE 3.5” motherboards are embedded 45 nm Intel® Atom™ processor
platforms. The Intel® Atom™ processor N270 embedded on the WAFER-945GSE has a
1.60 GHz clock speed, a 533 MHz FSB and a 512 KB L2 cache. The WAFER-945GSE
also supports one 200-pin 533 MHz 2.0 GB (max.) DDR2 SDRAM SO-DIMM. The board
comes with an LVDS connector and supports both 18-bit and 36-bit single channel LVDS
screens. The WAFER-945GSE also comes with two PCI Express (PCIe) Gigabit Ethernet
(GbE) connectors and a PCIe mini slot on the solder side.
1.2 WAFER-945GSE Overview
1.2.1 WAFER-945GSE Overview Photo
The WAFER-945GSE has a wide variety of peripheral interface connectors. 746H708HFigure 1-2 is
a labeled photo of the peripheral interface connectors on the WAFER-945GSE.
