WAFER-945GSE 3.5” Motherboard
Page 25

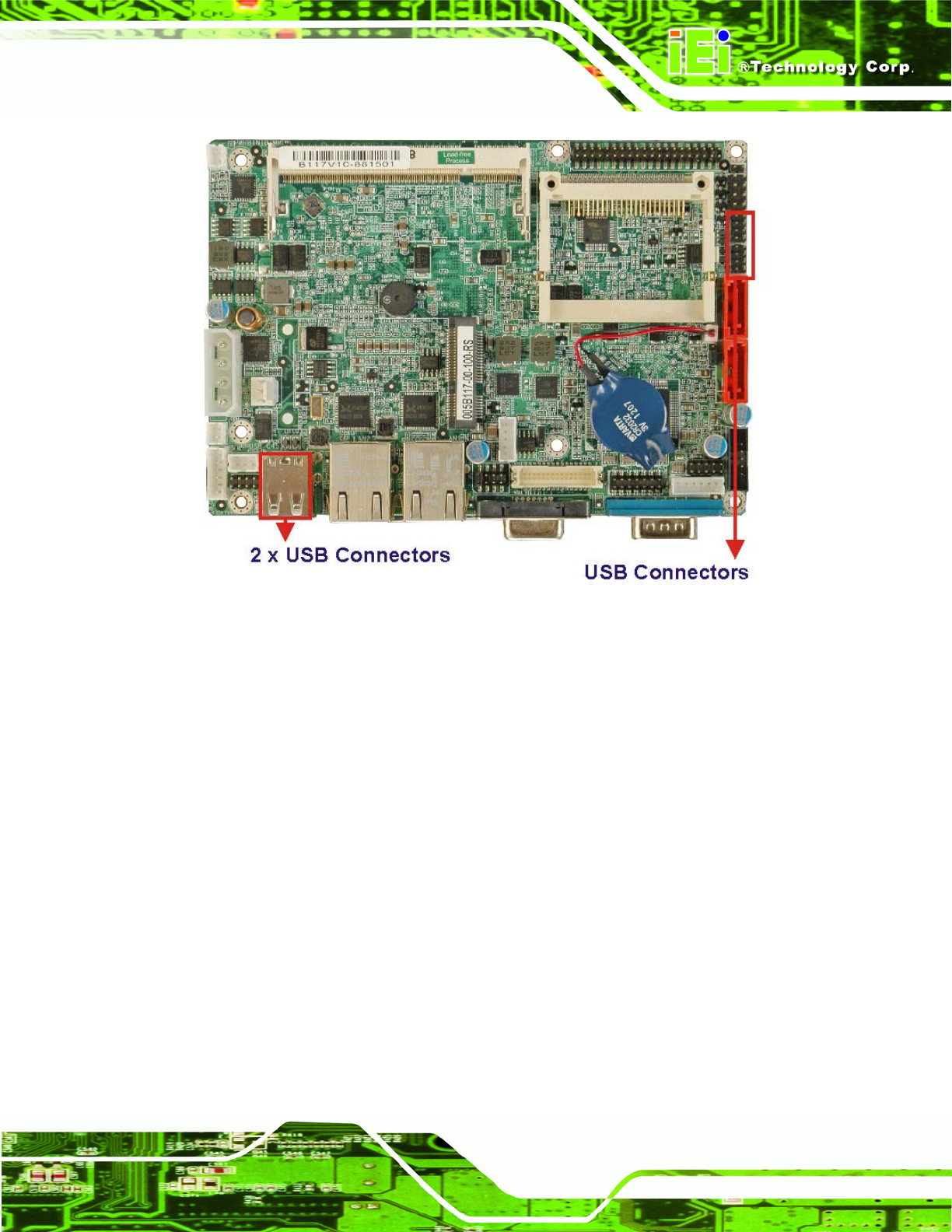

Figure 2-14: Onboard USB Implementation
2.6 LPC Bus Components
2.6.1 LPC Bus Overview
The SIS964 LPC bus is connected to components listed below:
BIOS chipset
Super I/O chipset
LPC Serial Port Chipset
2.6.2 BIOS Chipset
The BIOS chipset has a licensed copy of AMI BIOS installed on the chipset. Some of the
BIOS features are listed below:
AMI Flash BIOS
SMIBIOS (DMI) compliant
