WAFER-945GSE 3.5” Motherboard
Page 40
3 PS-ON
Table 4-4: ATX Power Supply Enable Connector Pinouts
4.3.3 Audio Connector (10-pin)
CN Label: AUDIO1
CN Type:
10-pin header
CN Location: See
735HFigure 4-4
CN Pinouts: See
736HTable 4-5
The 10-pin audio connector is connected to external audio devices including speakers and
microphones for the input and output of audio signals to and from the system.

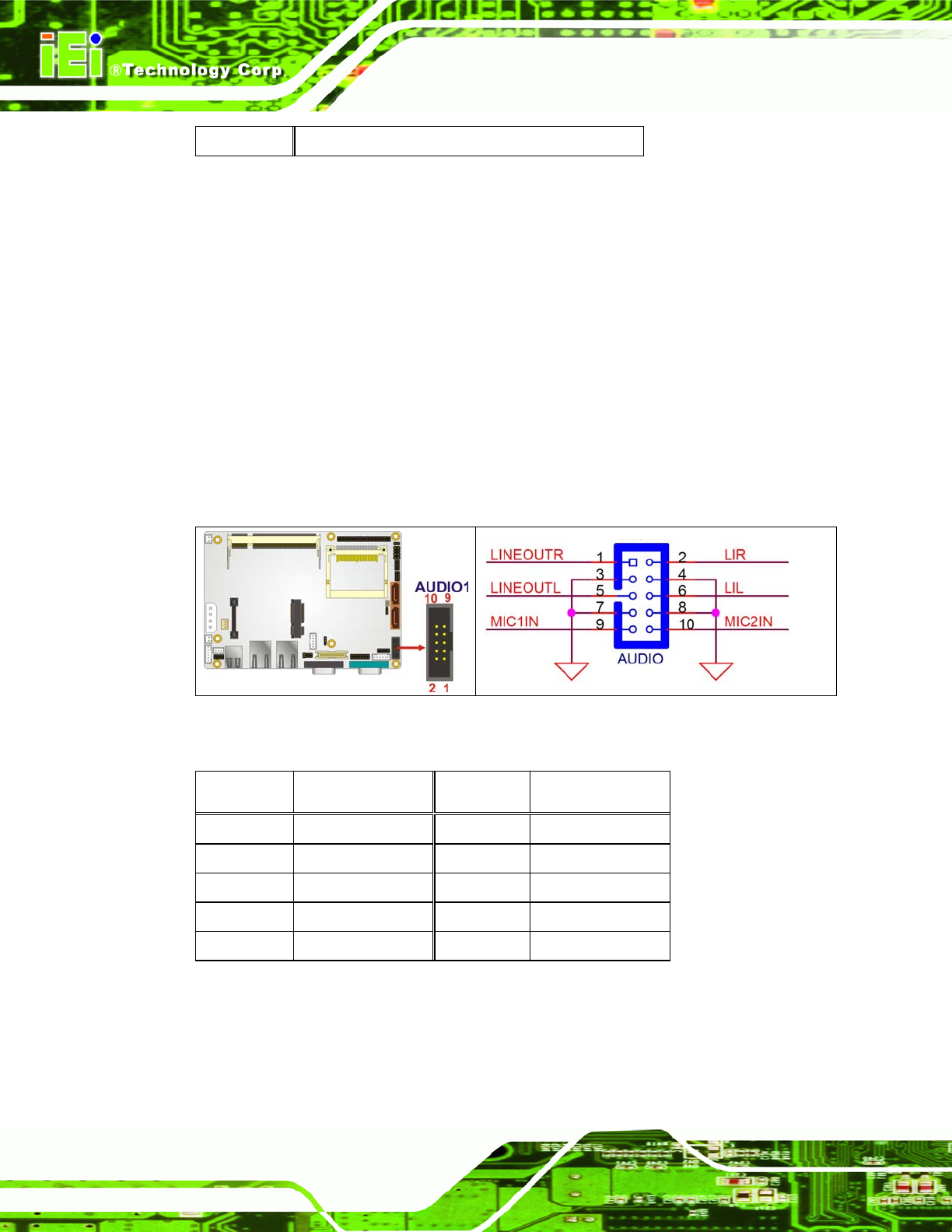

Figure 4-4: Audio Connector Pinouts (10-pin)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Line out R 2 Line in R
3 GND 4 GND
5 Line out L 6 Line in L
7 GND 8 GND
9 MIC in 10 Mic in
Table 4-5: Audio Connector Pinouts (10-pin)
