WAFER-945GSE 3.5” Motherboard
Page 58

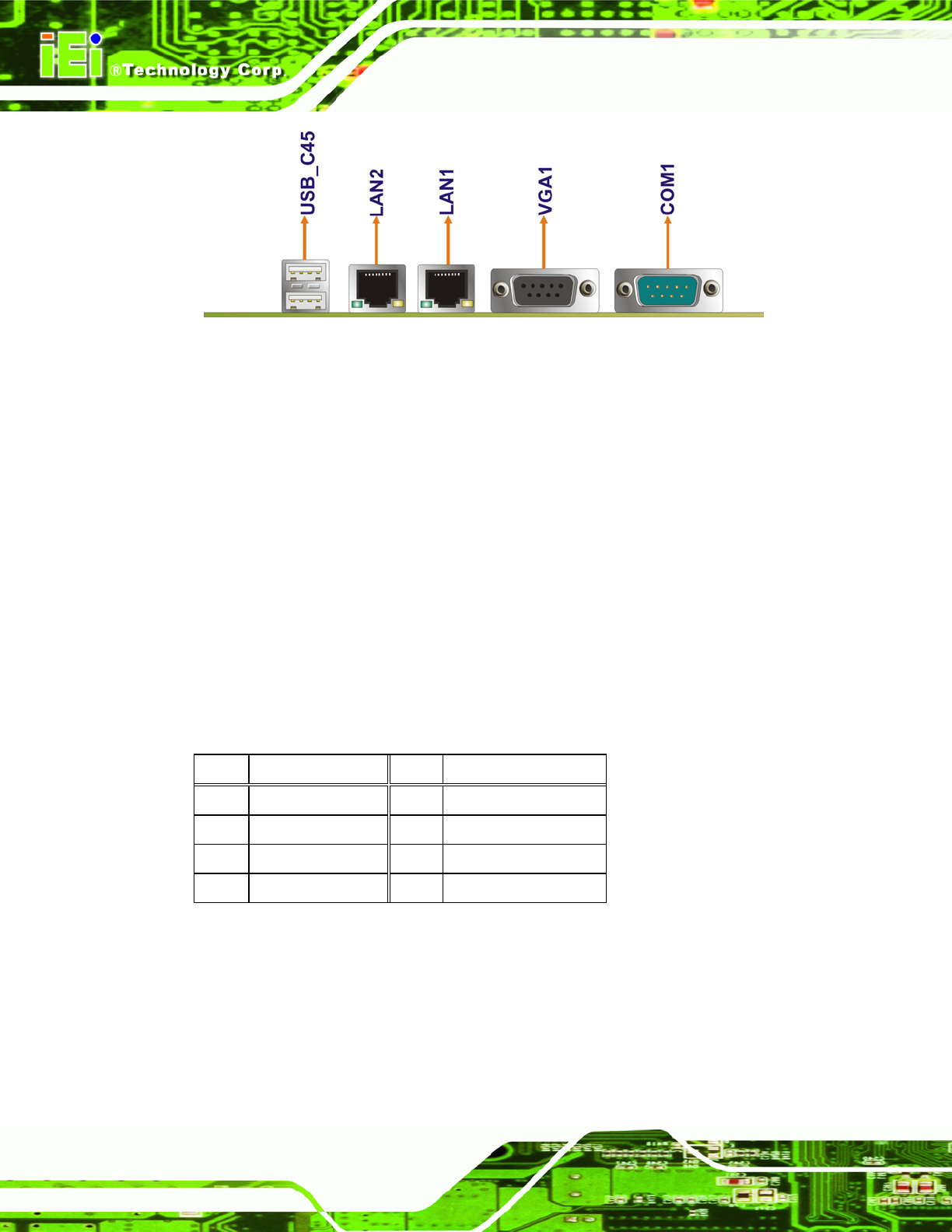

Figure 4-19: WAFER-945GSE External Peripheral Interface Connector
4.4.1 LAN Connectors
CN Label:
LAN1 and LAN2
CN Type:
RJ-45
CN Location:
See
808H766HFigure 4-19
CN Pinouts:
See
809H767HTable 4-20
The WAFER-945GSE is equipped with two built-in RJ-45 Ethernet controllers. The
controllers can connect to the LAN through two RJ-45 LAN connectors. There are two
LEDs on the connector indicating the status of LAN. The pin assignments are listed in the
following table:
PIN DESCRIPTION PIN
DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 4-20: LAN Pinouts
