WAFER-945GSE 3.5” Motherboard
Page 59

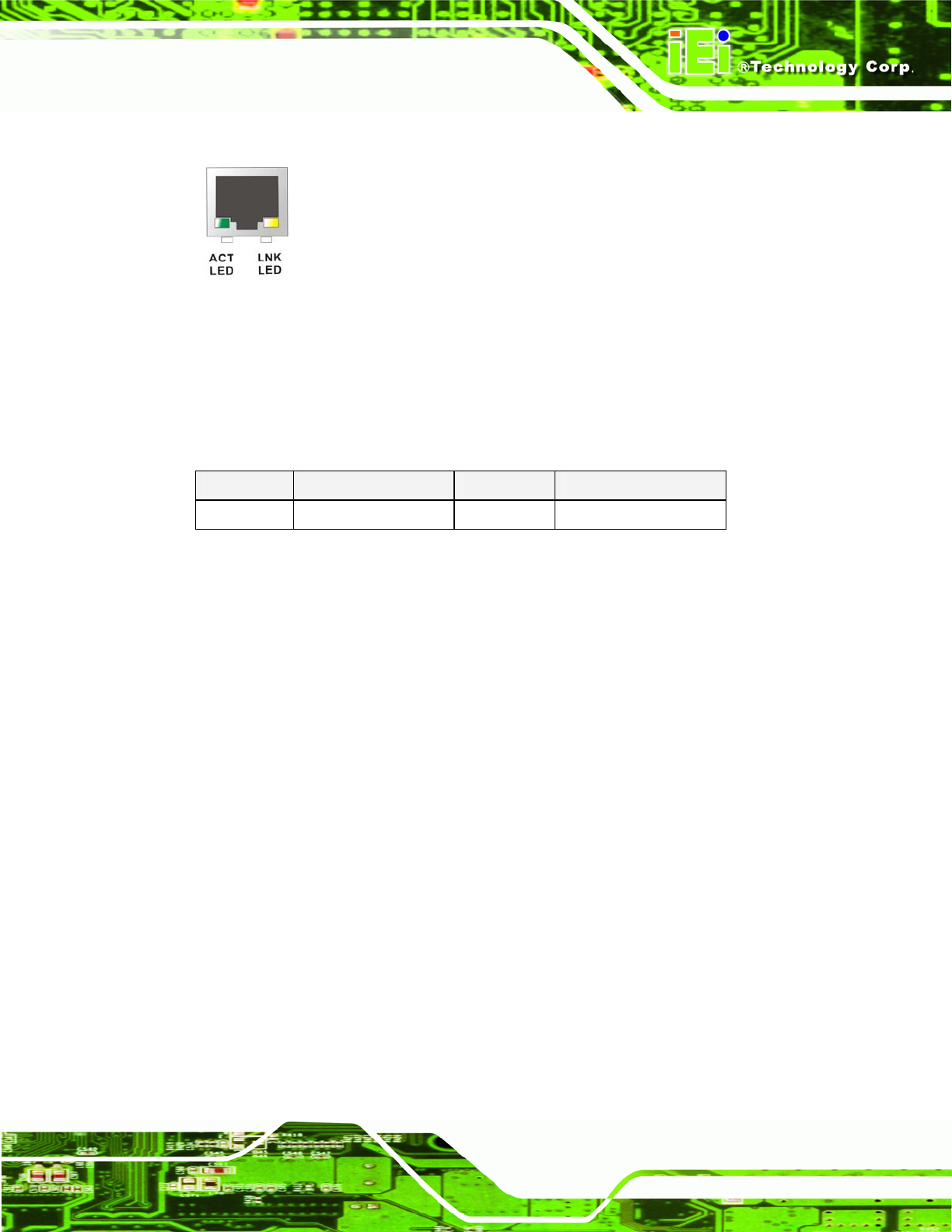

Figure 4-20: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
810H768HTable 4-21.
STATUS
DESCRIPTION STATUS DESCRIPTION
GREEN Activity YELLOW Linked
Table 4-21: RJ-45 Ethernet Connector LEDs
4.4.2 Serial Port Connector (COM1)
CN Label:
COM1
CN Type:
DB-9 connectors
CN Location:
See
811H769HFigure 4-19 (see 2)
CN Pinouts:
See
812H770HTable 4-22 and 813H771HFigure 4-21
The 9-pin DB-9 serial port connectors are connected to RS-232 serial communications
devices.
