WAFER-945GSE2 3.5" Motherboard
Page 107

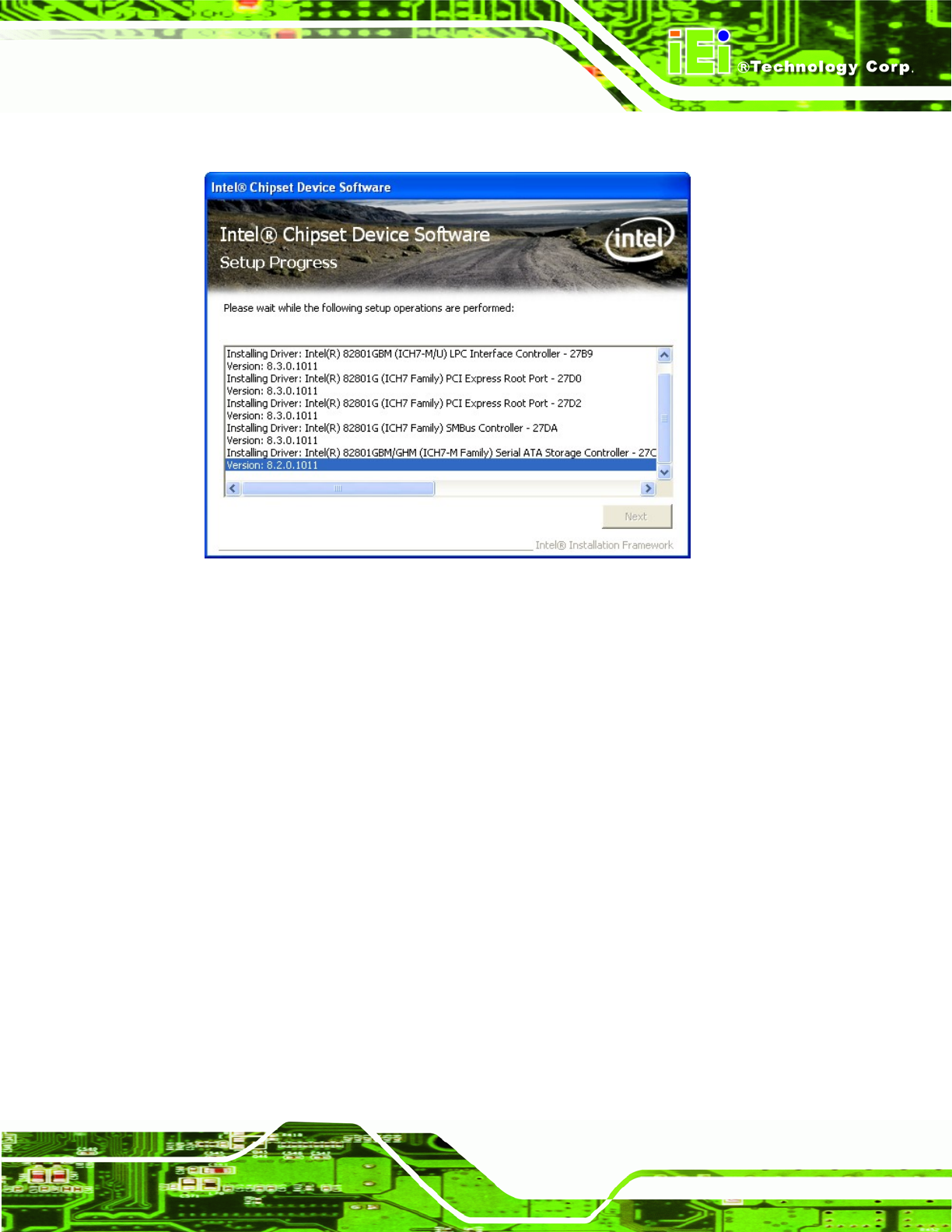

Step 11: Setup Operations are performed as shown in Figure 6-7.
Figure 6-7: Chipset Driver Setup Operations
Step 12: Once the Setup Operations are complete, click Next to continue.
Step 13: The Finish screen appears.
Step 14: Select “Yes, I want to restart the computer now” and click Finish. See
Figure
6-8.
