WAFER-945GSE2 3.5" Motherboard
Page 108

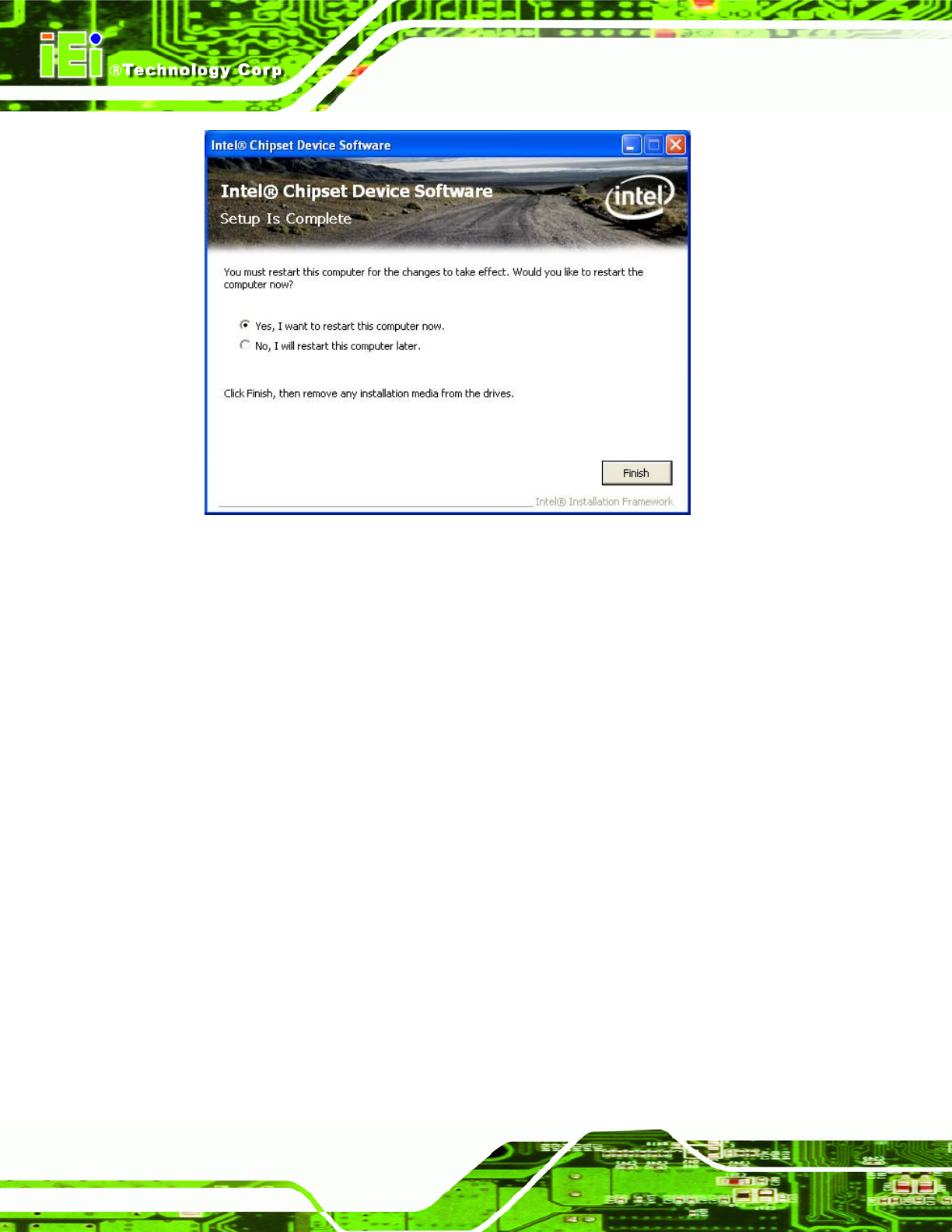

Figure 6-8: Chipset Driver Installation Finish Screen
6.4 VGA Driver Installation
To install the VGA driver, please do the following.
Step 1: Access the driver list shown in
Figure 6-2. (See Section 6.2)
Step 2: Click “2-VGA”
Step 3: The VGA Read Me file in
Figure 6-9 appears.
Step 4: Click Next to continue.
