WAFER-945GSE2 3.5" Motherboard
Page 112
Step 13: Setup Operations are performed as shown in Figure 6-14.

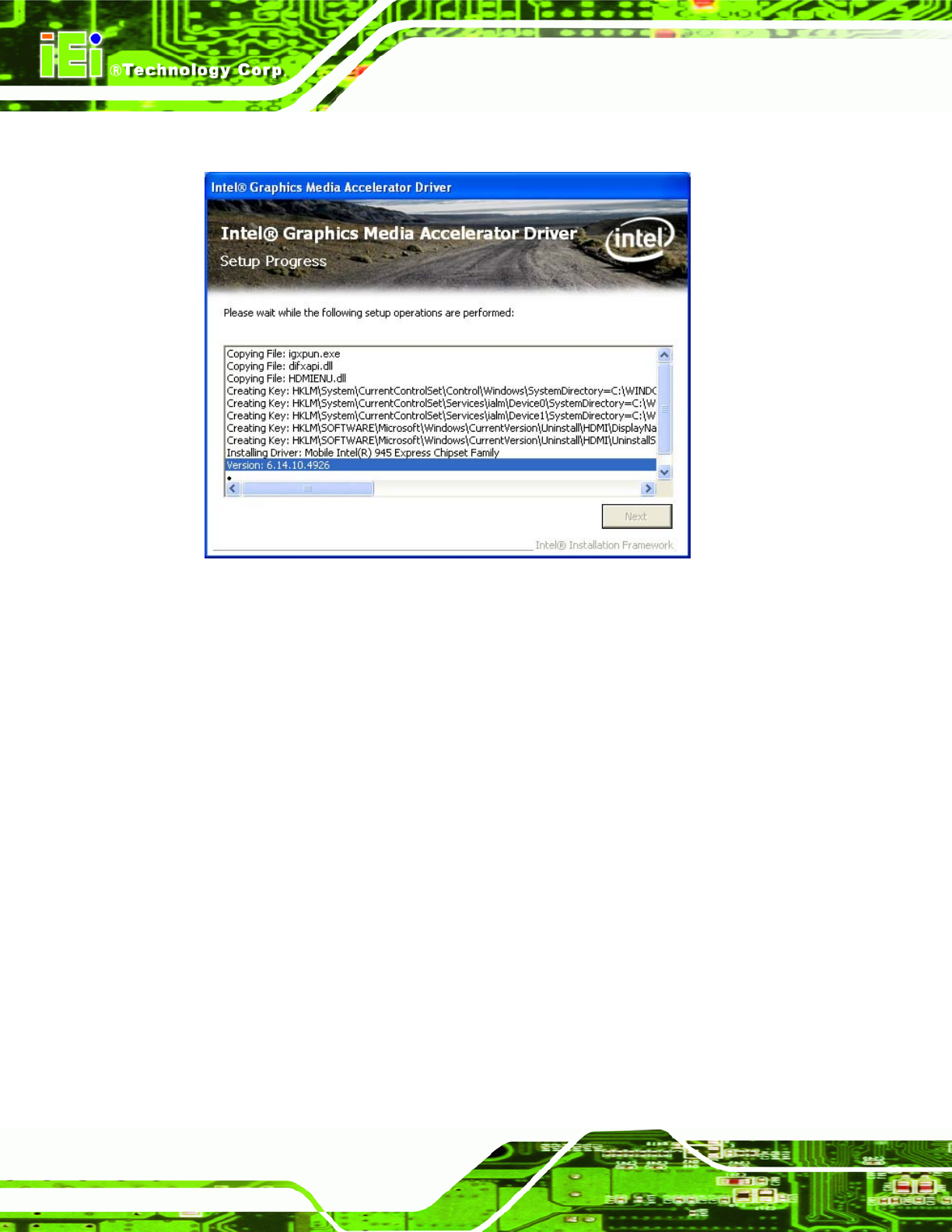

Figure 6-14: VGA Driver Setup Operations
Step 14: Once the Setup Operations are complete, click the Next icon to continue.
Step 15: The Finish screen appears.
Step 16: Select “Yes, I want to restart the computer now” and click the Finish icon.
See
Figure 6-15.
