WAFER-945GSE2 3.5" Motherboard
Page 113

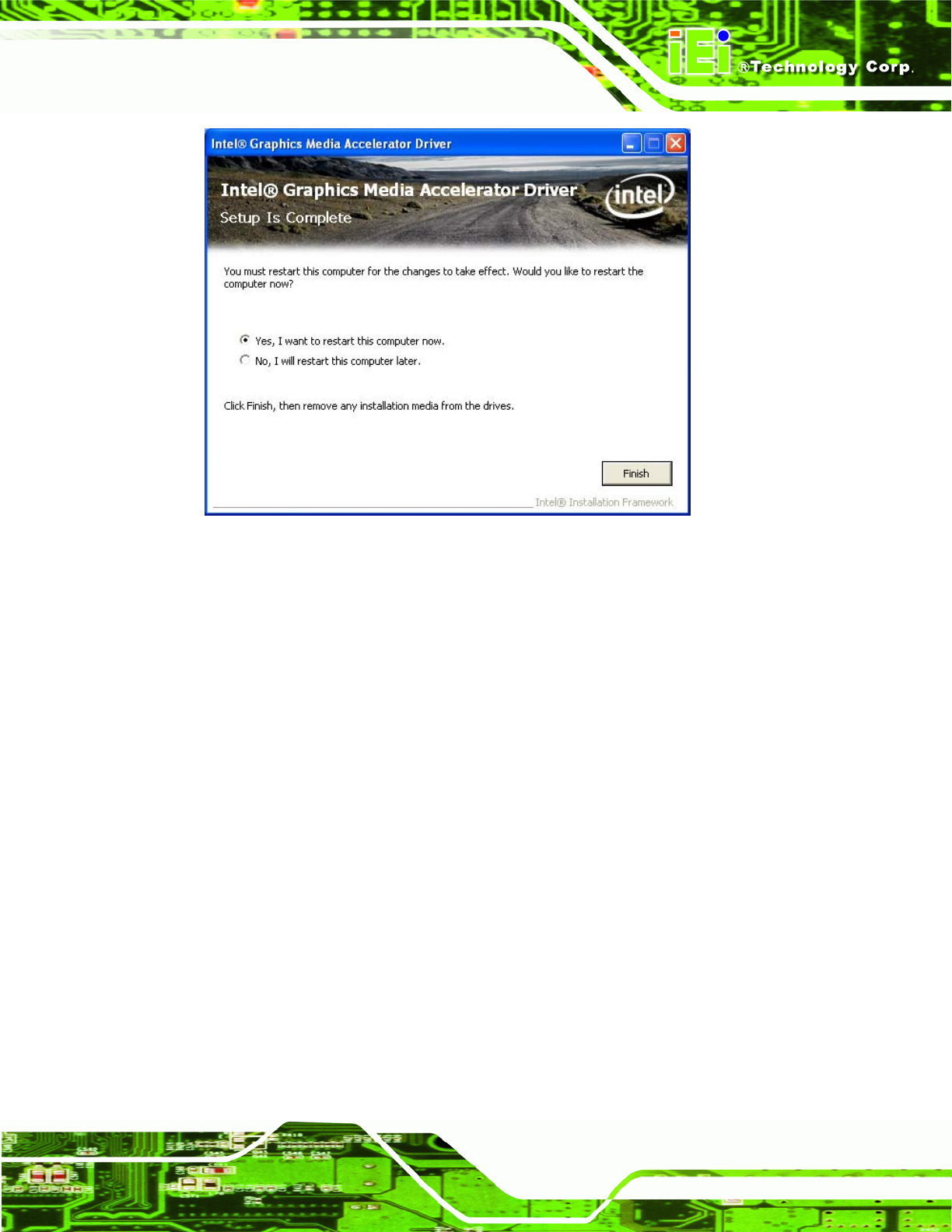

Figure 6-15: VGA Driver Installation Finish Screen
6.5 LAN Driver Installation
To install the LAN driver, please do the following.
Step 1: Access the driver list shown in
Figure 6-2. (See Section 6.2)
Step 2: Click “3-LAN”.
Step 3: The Welcome screen in
Figure 6-16 appears.
