WAFER-945GSE2 3.5" Motherboard
Page 142
B.4.1 Factory Restore
To restore the factory default image, please follow the steps below.
Step 1: Type <1> and press <Enter> in the main menu.
Step 2: The Symantec Ghost window appears and starts to restore the factory default. A
factory default image called iei.GHO is created in the hidden Recovery partition.

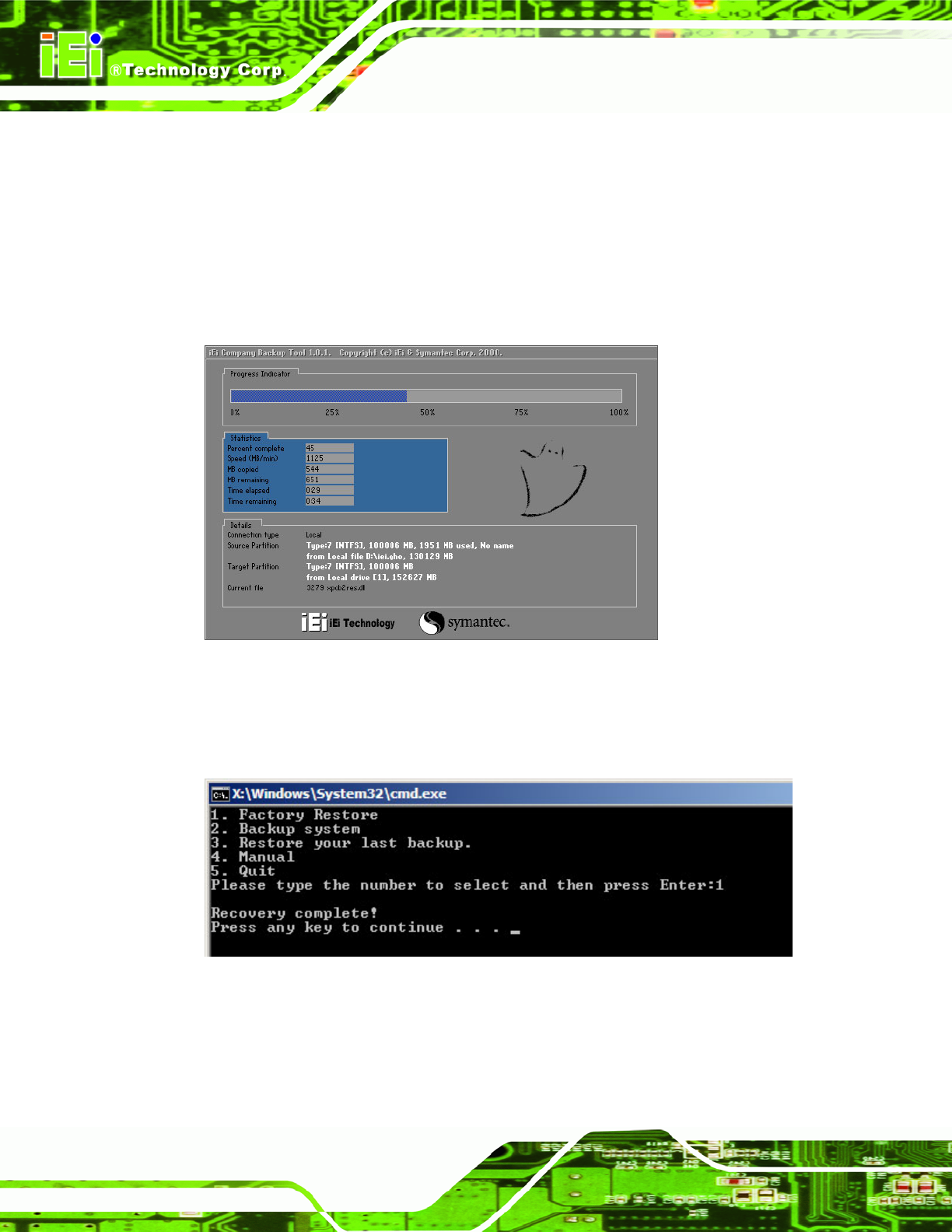

Figure B-27: Restore Factory Default
Step 3: The screen is shown as in
78Figure B-28 when completed. Press any key to
reboot the system.
Figure B-28: Recovery Complete Window
