B.4.2 Backup System
To backup the system, please follow the steps below.
Step 1: Type <2> and press <Enter> in the main menu.

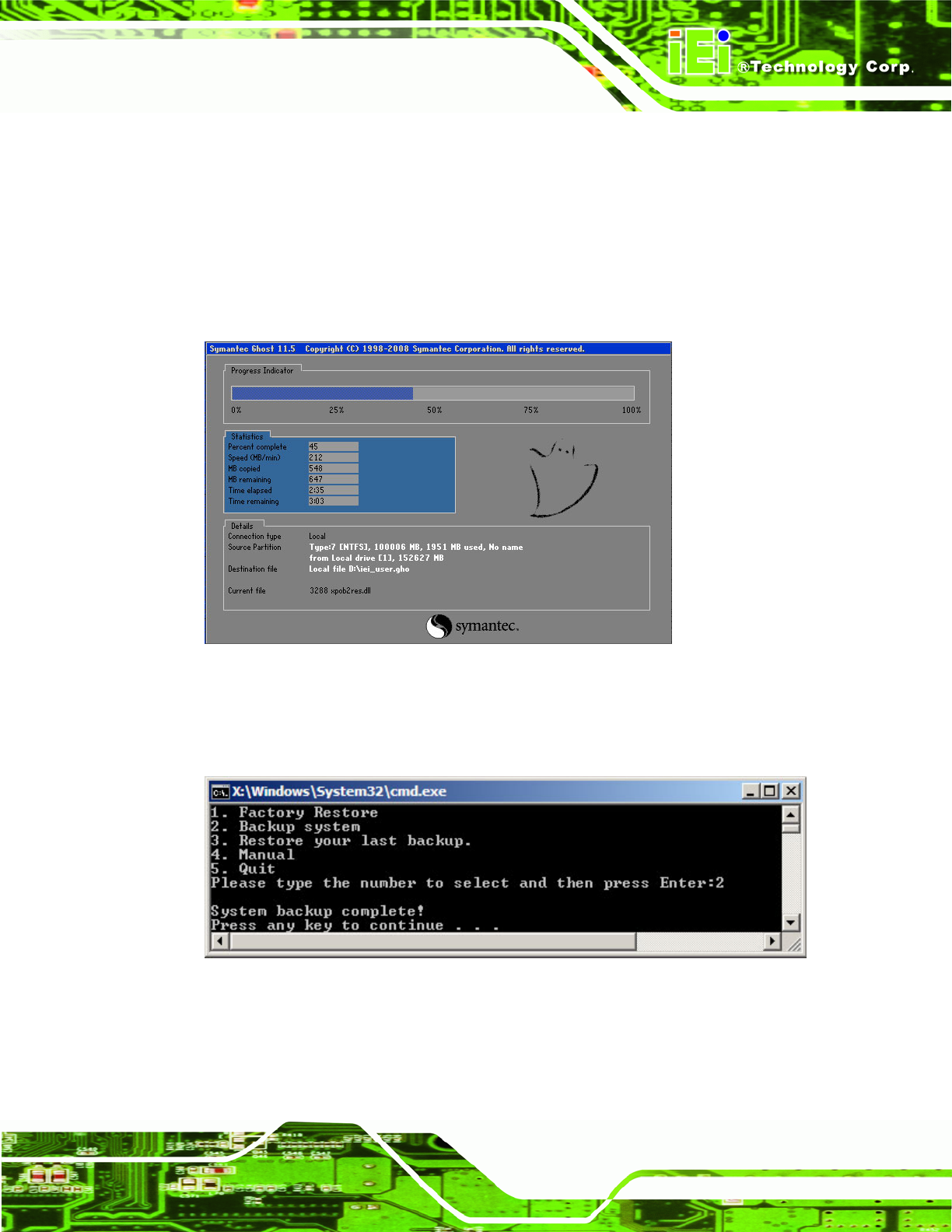

Step 2: The Symantec Ghost window appears and starts to backup the system. A
backup image called iei_user.GHO is created in the hidden Recovery partition.
Figure B-29: Backup System
Step 3: The screen is shown as in
78Figure B-30 when system backup is completed.
Press any key to reboot the system.
Figure B-30: System Backup Complete Window
