B.4.3 Restore Your Last Backup
To restore the last system backup, please follow the steps below.
Step 1: Type <3> and press <Enter> in the main menu.
Step 2: The Symantec Ghost window appears and starts to restore the last backup
image (iei_user.GHO).

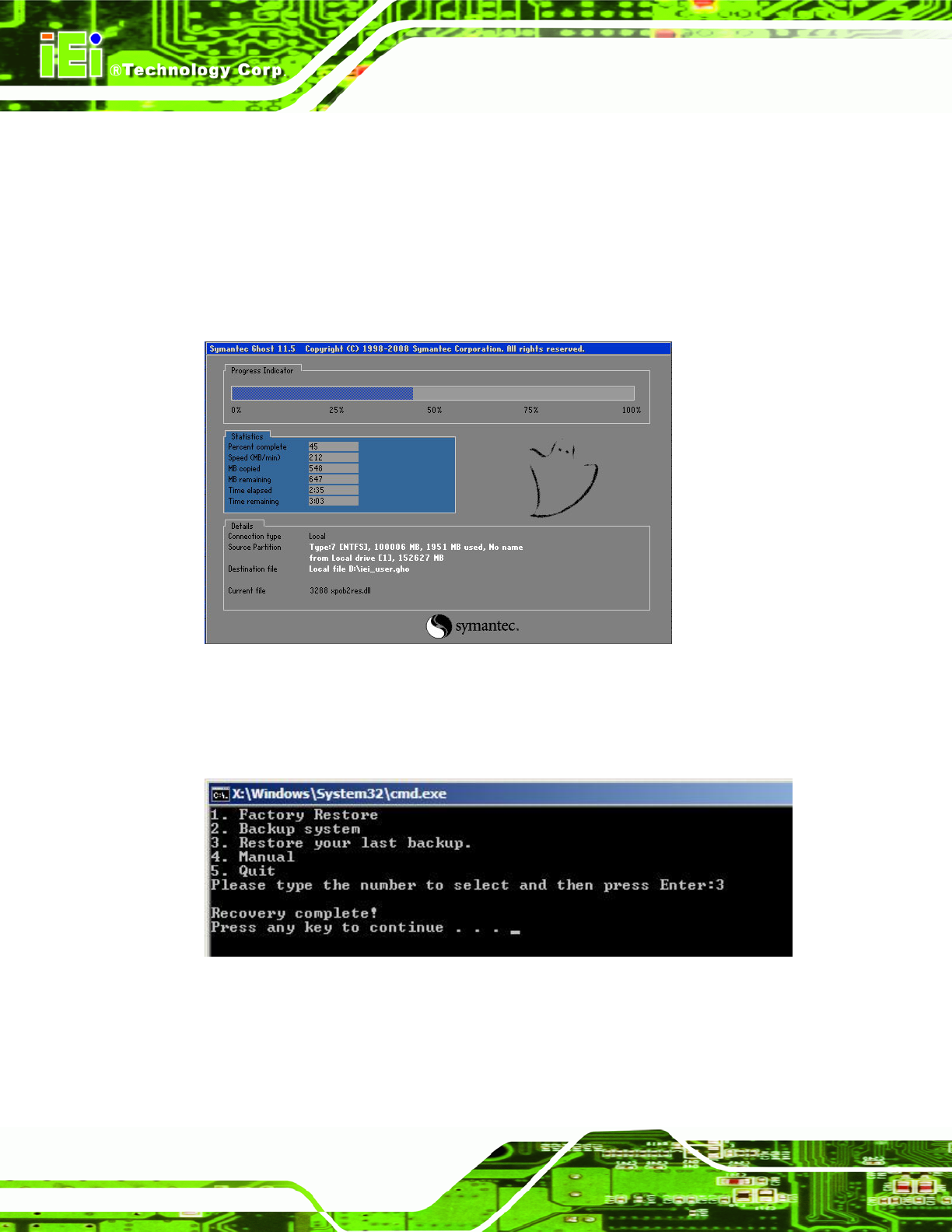

Figure B-31: Restore Backup
Step 3: The screen is shown as in
78Figure B-32 when backup recovery is completed.
Press any key to reboot the system.
Figure B-32: Restore System Backup Complete Window
