1.1 Introduction

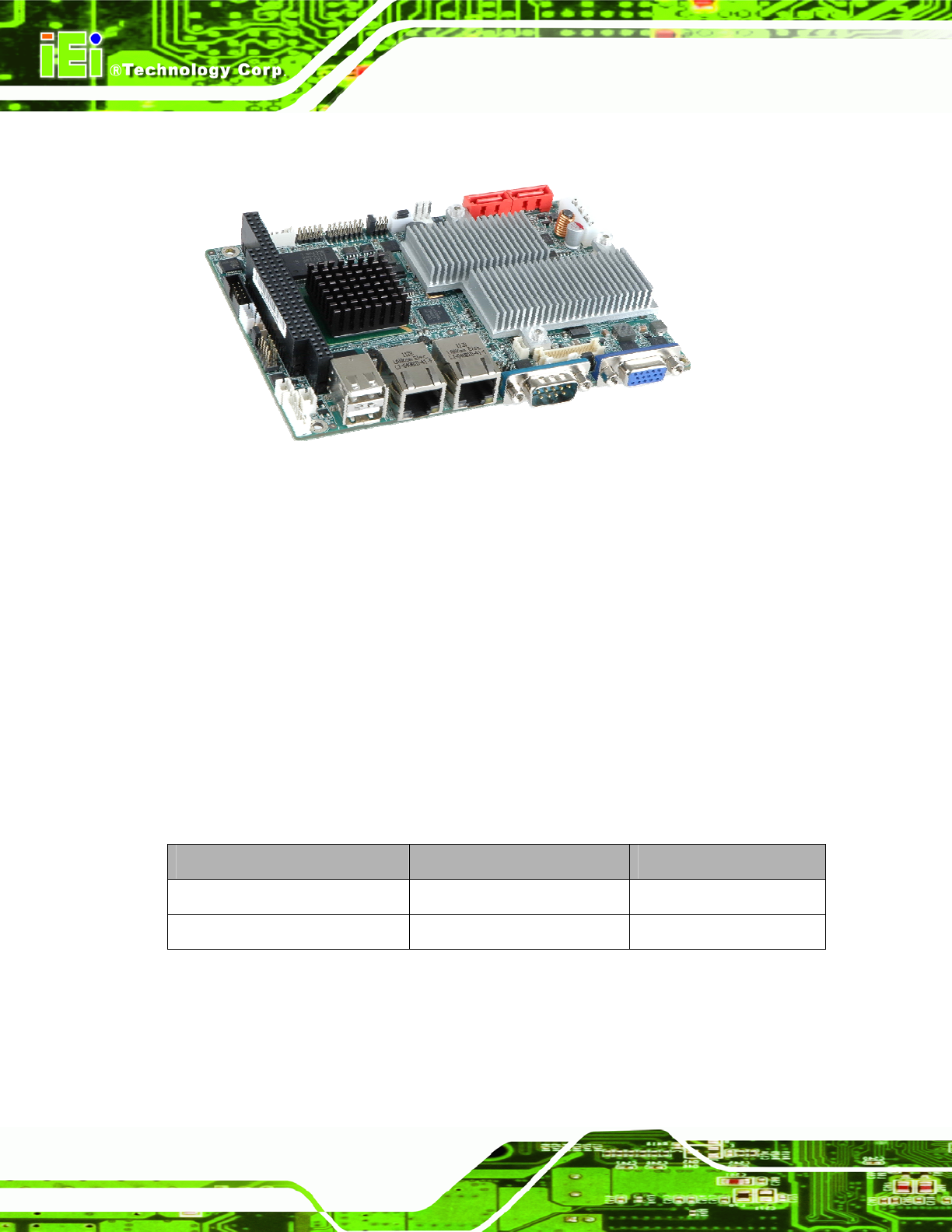

Figure 1-1: WAFER-945GSE2
The WAFER-945GSE2 3.5” motherboards are embedded 45 nm Intel® Atom™ processor
platforms. The Intel® Atom™ processor N270 embedded on the WAFER-945GSE2 has
a 1.60 GHz clock speed, a 533 MHz FSB and a 512 KB L2 cache. The WAFER-945GSE2
also includes onboard 1.0 GB DDR2 SDRAM. The board comes with an LVDS connector
and supports both 18-bit and 36-bit single channel LVDS screens. The WAFER-945GSE2
also comes with two PCI Express (PCIe) Gigabit Ethernet (GbE) connectors, a
CompactFlash® socket on the solder side,
and a PC/104 slot for expansion and increased
connectivity.
1.2 Model Variations
The model variations of the WAFER-945GSE2 Series are listed below.
Model No. CPU Operating Temperature
WAFER-945GSE2-N270-R20
Intel® Atom N270 1.6 GHz 0ºC ~ 60ºC
WAFER-945GSE2-N270W-R20
Intel® Atom N270 1.6 GHz -20ºC ~ 70ºC
Table 1-1: WAFER-945GSE2 Model Variations
