WAFER-945GSE2 3.5" Motherboard
Page 17

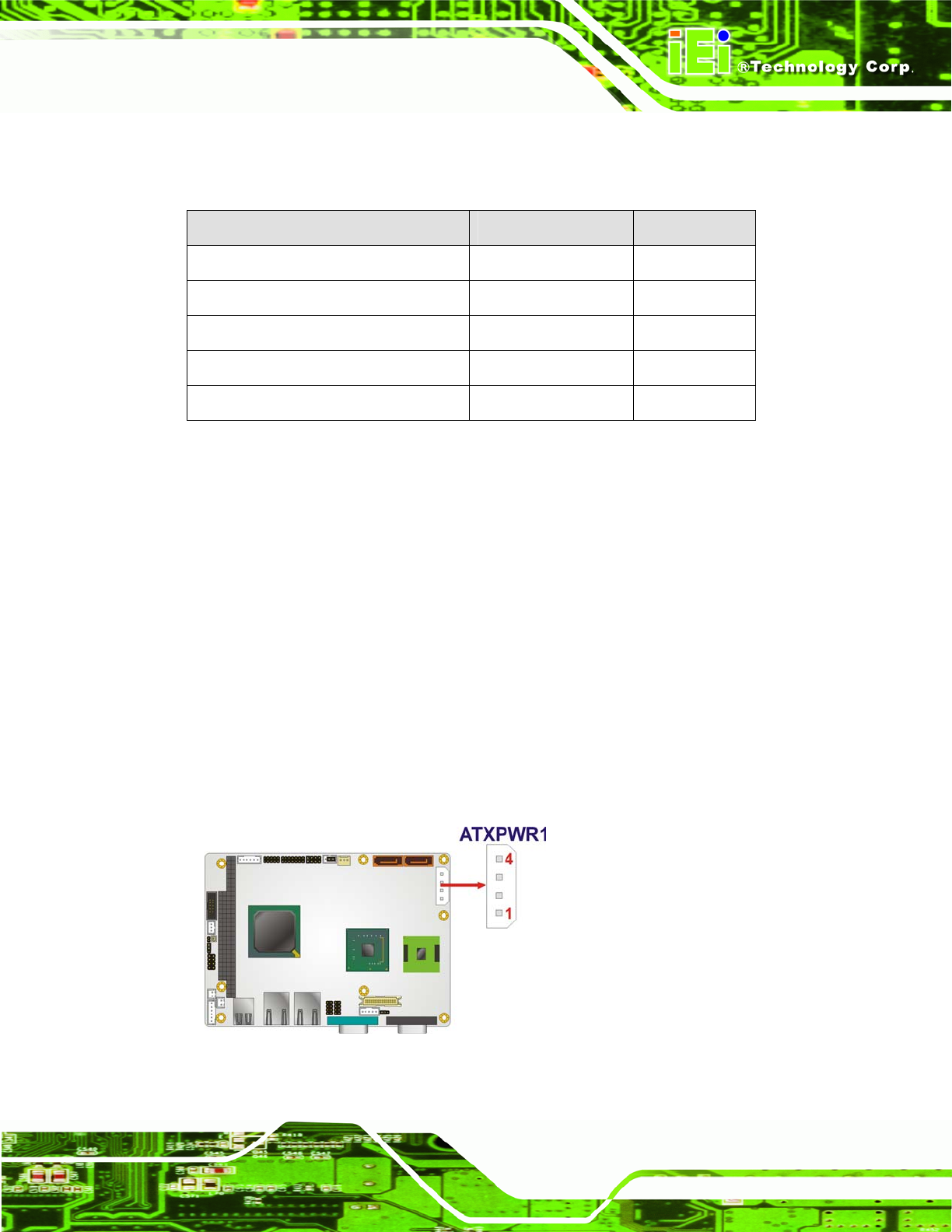

3.1.3 External Interface Panel Connectors
The table below lists the connectors on the external I/O panel.
Connector Type Label
Ethernet connector RJ-45 LAN1
Ethernet connector RJ-45 LAN2
RS-232 serial port connector Male DB-9 COM1
Dual USB port USB port USB_C45
VGA port connector 15-pin female VGA1
Table 3-2: Rear Panel Connectors
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the WAFER-945GSE2.
3.2.1 ATX Power Connector
CN Label: ATXPWR1
CN Type:
4-pin ATX power connector
CN Location:
See
Figure 3-3
CN Pinouts:
See
Table 3-3
The ATX power connector connects to an ATX power supply.
Figure 3-3: ATX Power Connector Location
