WAFER-945GSE2 3.5" Motherboard
Page 19
Pin Description
2 GND
3 PS-ON
Table 3-4: ATX Power Supply Enable Connector Pinouts
3.2.3 Audio Connector (10-pin)
CN Label: AUDIO1
CN Type:
10-pin header
CN Location:
See
Figure 3-5
CN Pinouts:
See
Table 3-5
The 10-pin audio connector is connected to external audio devices including speakers and
microphones for the input and output of audio signals to and from the system.

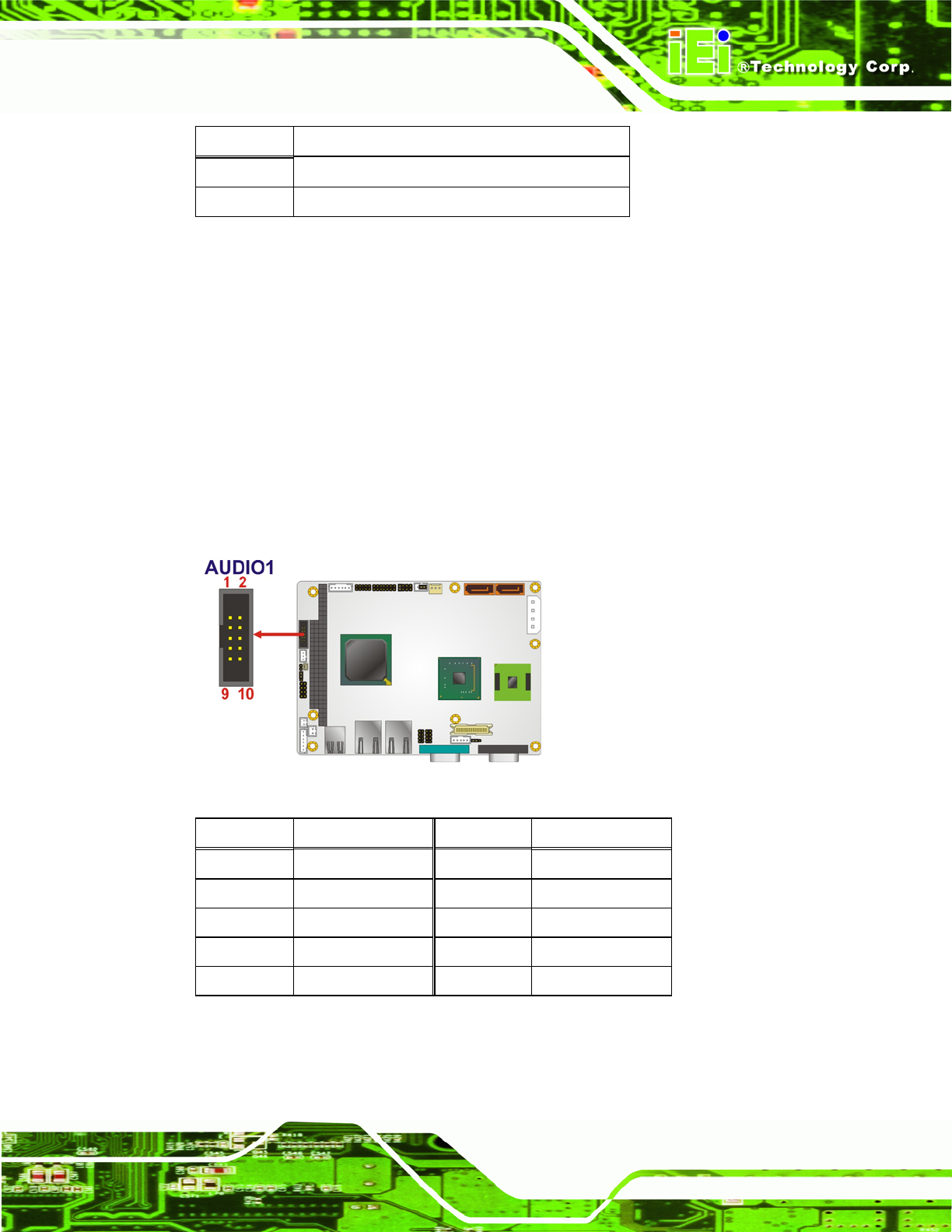

Figure 3-5: Audio Connector Pinouts (10-pin)
Pin Description Pin Description
1 Line out R 2 Line in R
3 GND 4 GND
5 Line out L 6 Line in L
7 GND 8 GND
9 MIC in 10 Mic in
Table 3-5: Audio Connector Pinouts (10-pin)
